Semi Gigabit AI PoE+ Switch KP-2404J3SFT

Overview

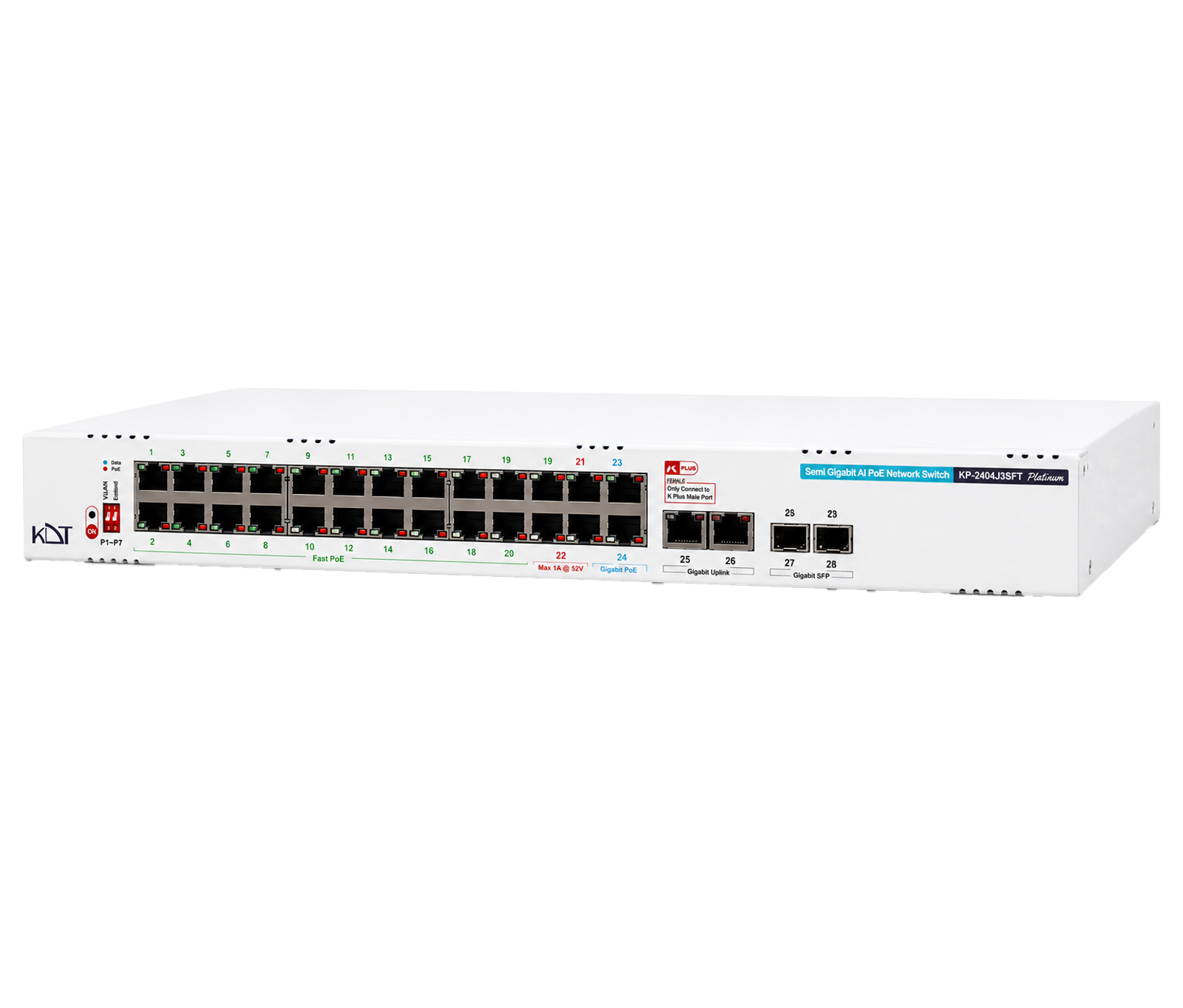

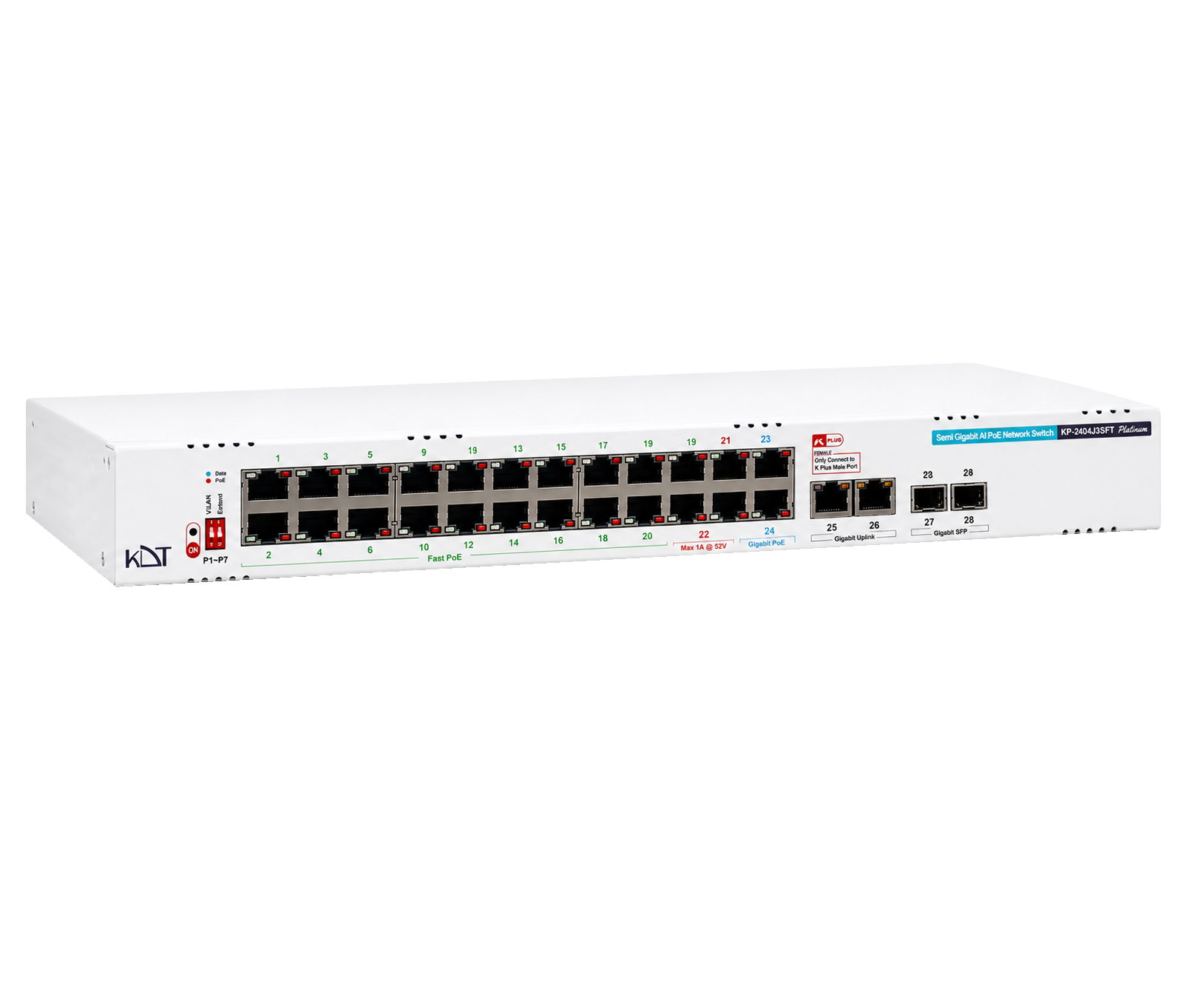

The KP-2404J3SFT from the Platinum series is a hybrid Fast Ethernet/Gigabit switch with AI technology and PoE+, offering high capacity for surveillance projects. It combines 20 Fast Ethernet PoE ports, two Gigabit PoE ports, two Gigabit RJ45 uplink ports and two Gigabit SFP uplink ports, and supports a massive 600 W of output power. Two Power Transmit ports, 12.4 Gbps of internal bandwidth and a metal rackmount chassis with a smart DIP switch bring unmatched stability and flexibility to complex networks.

Technical specifications

Datasheet (PDF)

Model: KP-2404J3SFT

Interfaces

Total Port: 28 Ports
PoE Output (Max): 600 Watt
PoE Port Control: IC+ IP804AR
Fast RJ45 PoE Port: 20
Gigabit RJ45 PoE Port: 2
Gigabit RJ45 Uplink Port: 2
Gigabit SFP Uplink Port: 2
Power Transmit RJ45: 2 (Male)
Combo Uplink Port: N/A
Dip Switch Ai: Yes

Hardware

Processor Type: IC+ / Realtek
LED Panel: Data Activity, PoE Activity, Power Activity, Redundant Activity
Main Board: Double Layer
Case: Metal Case
Mounting: Rackmount

General

Protection Rating: IP51
Web Language: N/A
Dimensions: 440*274*45 mm
Weight: 2.6 kg
Storage Temperature: -20°C ~ +60°C / 10% ~ 90% RH
Operating Temperature: -15°C ~ +50°C / 10% ~ 90% RH
Radiation Electromagnetic: EN55016

Guarantee

Product Guarantee: 3 Years Platinum Guarantee
MTBF: 100,000 hrs min. MIL-HDBK-217F (25°)

Network Performance

Standard: IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3az, IEEE802.3u, IEEE802.3x
Protocols: CSMA/CD
Speed: Ethernet 10Mbps (half duplex), 20Mbps (full duplex); 10BASE-T: 14,880bps/port Fast Ethernet 100Mbps (half duplex), 200Mbps (full duplex); 100BASE-TX:14,8800bps/port Gigabit Ethernet 1000Mbps (half duplex), 2000Mbps (full duplex); 1000BASE-TX: 1488000bps/port
Cabling: 1000Base-TX: Cat 6 UTP or above (100m) PoE=250M 100Base-TX:Cat 6 UTP(120m) PoE=250M 10Base-TX: Cat 5 or above (250m) PoE=250M
Bandwidth: 12.4Gb Internal Bandwidth
MAC Table: 16Kb
Auto MDI: Yes All Ports
Console: N/A
Transfer Pattern: Store & Forward

PD`S

IP Camera: Yes
IP Phone: Yes
(+)2/1,(: Yes

Function Ai

Vlan: Yes / By Setting Dip Switch Number 1(P1-P7)
250 Extend: Yes / By Setting Dip Switch Number 2(P1-P7)
Watchdog: Yes / Enabled By Default (P1-P24)

Power Supply

Power: 200~240V AC, 50~60Hz
Redundant: Yes (K+ Feature)
LED Power: Yes
Power Cable: Available
