10 Gigabit PoE+ L3 Managed Switch KP-4806H5SM3

Overview

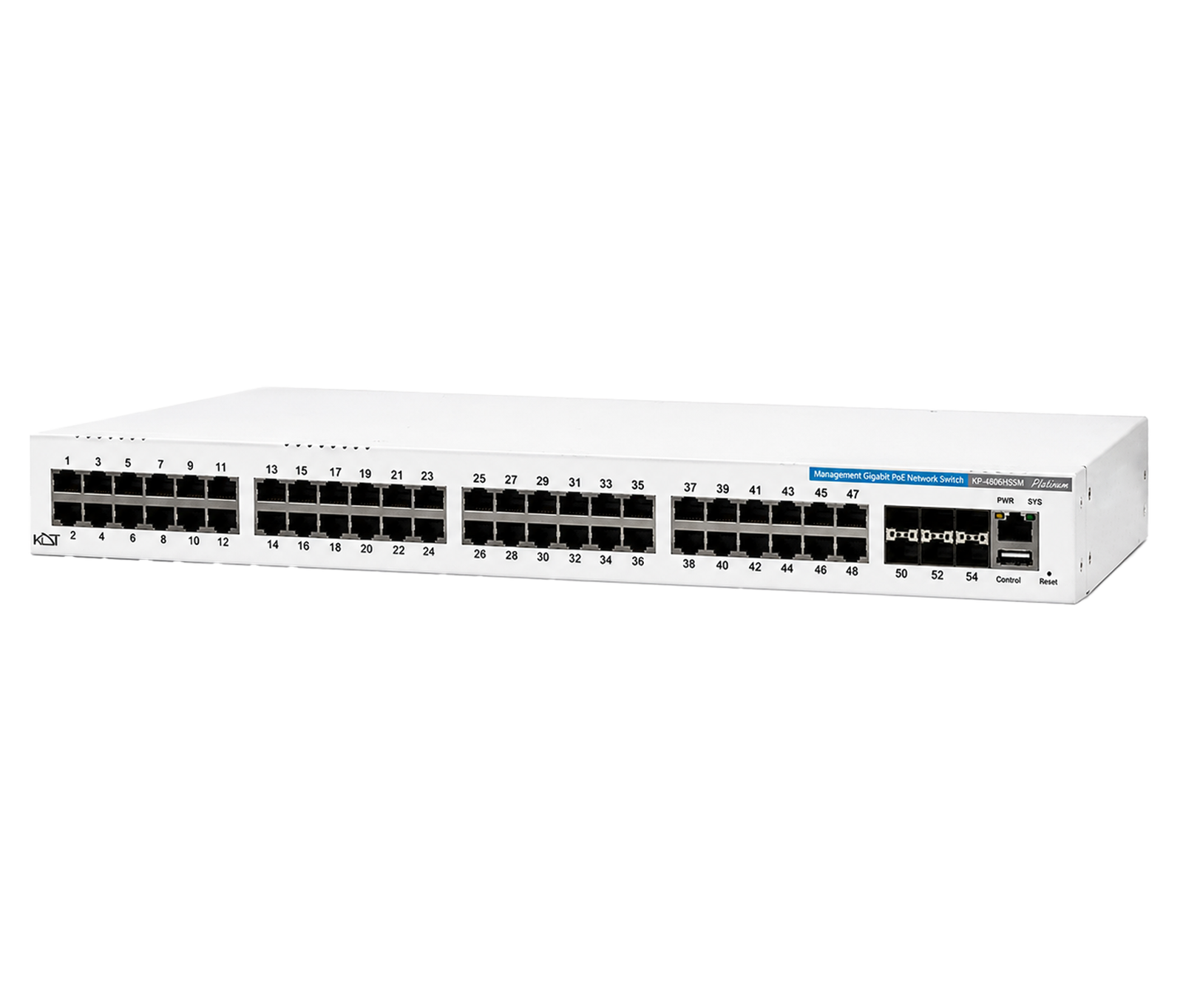

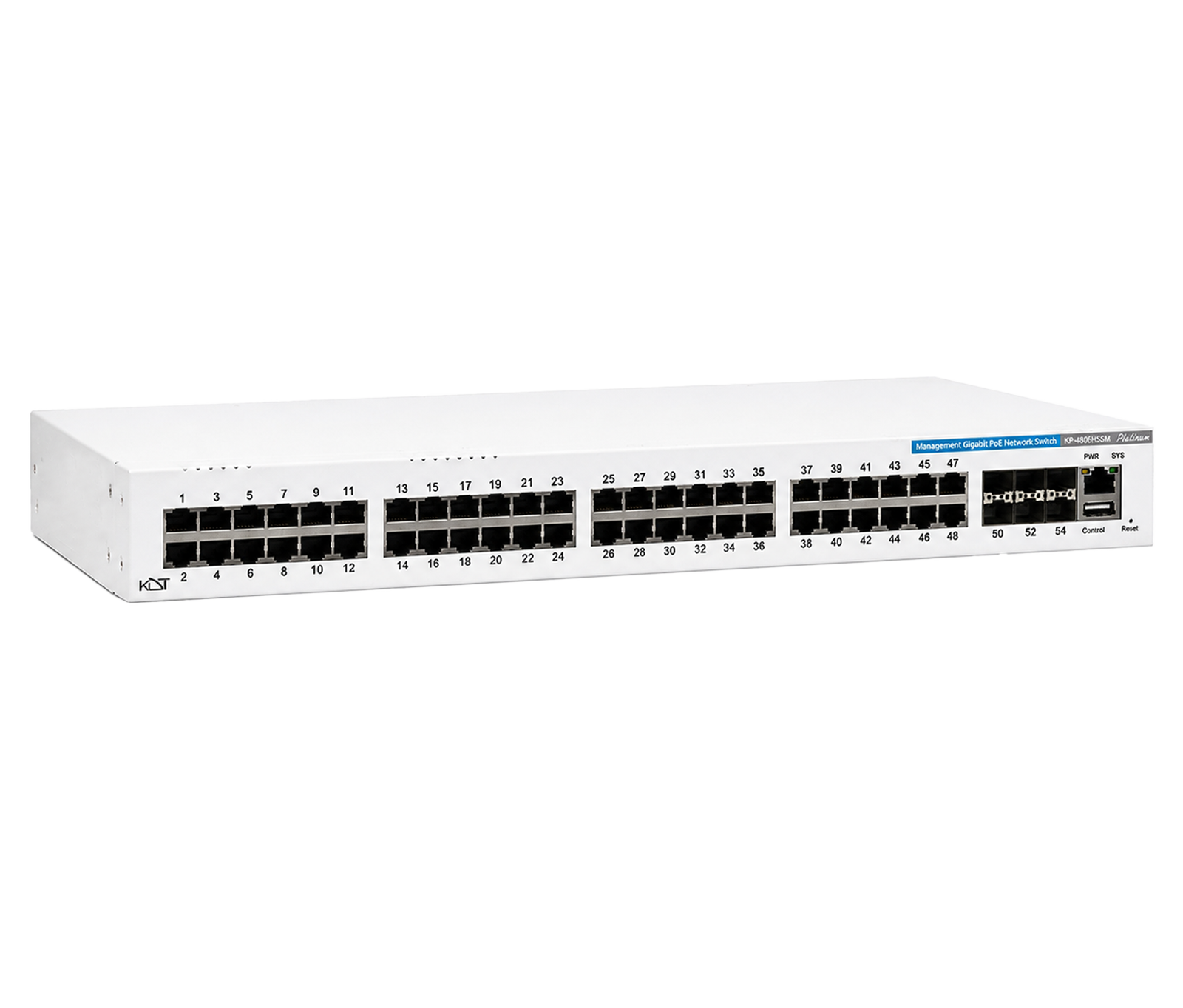

The KP-4806H5SM3 from the Platinum series is a Layer 3 managed PoE+ switch with 10G ports, designed for large networks and data centers. It is equipped with 48 Gigabit PoE ports delivering a massive 1,200 W of output power and six 10G SFP+ uplink ports, ensuring reliable data transfer over 216 Gbps of internal bandwidth. Support for Layer 3 routing protocols, a 2 MB MAC address table and a metal rackmount chassis manageable via the web interface, console, Telnet and SSH make it a powerful core for processing large volumes of data.

Technical specifications

Datasheet (PDF)

Model: KP-4806H5SM3

Interfaces

Total Port: 54 Ports
PoE Output (Max): 1200 Watt
PoE Port Control: Realtek 8238B/8239B
Fast RJ45 PoE Port: N/A
Gigabit RJ45 PoE Port: 48 Port
Fast RJ45 Uplink Port: N/A
Gigabit RJ45 Uplink Port: N/A
10 Gb SFP Uplink Port: 6
Combo Uplink Port: N/A

Feature

Security: Access IP List IEE 802.1 X MAB (MAC Authentication Bypass) / Radius Server Authentication Port Security SSH & HTTPS Login

Hardware

Processor Type: Realtek
LED Panel: Data Activity, PoE Activity, Power Activity, Redundant Activity
Main Board: Four Layer
Case: Metal Case
Mounting: Rackmount

General

Protection Rating: IP51
Web Language: English
Dimensions: 440*443*45 mm
Weight: 4.5 kg
Storage Temperature: -20°C ~ +60°C / 10% ~ 90% RH
Operating Temperature: -15°C ~ +50°C / 10% ~ 90% RH
Radiation Electromagnetic: EN55016

Guarantee

Product Guarantee: 3 Years Platinum Guarantee
MTBF: 100,000 hrs min. MIL-HDBK-217F (25°)

Network Performance

Standard: IEEE802.3ab IEEE802.3ae IEEE802.3af IEEE802.3at (Up to 30Watt) IEEE802.3az IEEE802.3bt IEEE802.3u IEEE802.3x
Protocols: CSMA/CD
Router: N/A
Speed: 10 Gigabit Ethernet 10000Mbps (half duplex), 20000Mbps 10000BASE-TX: 14880000bps/port Ethernet 10Mbps (half duplex), 20Mbps (full duplex); 10BASE-T: 14,880bps/port Fast Ethernet 100Mbps (half duplex), 200Mbps (full duplex); 100BASE-TX:14,8800bps/port Gigabit Ethernet 1000Mbps (half duplex), 2000Mbps (full duplex); 1000BASE-TX: 1488000bps/port
Cabling: 1000 Base-TX: Cat 6 UTP or above (100m) 100Base-TX:Cat 6 UTP(120m) PoE=250M 10Base-TX: Cat 5 or above (250m) PoE=250M
Bandwidth: 216Gb Internal Bandwidth
MAC Table: 2 Mb
Auto MDI: Yes All Ports
Console: Yes - Web & RS232 Layer3 Management (Telnet / SSH/ CLI)
Transfer Pattern: Store & Forward

PD`S

IP Camera: Yes
IP Phone: Yes
(+)2/1,(: Yes

Power Supply

Power: 200~240V AC, 50~60Hz
Redundant: N/A
LED Power: Yes
Power Cable: Available

Downloads

Documentation

KP-4806H5SM3

DatasheetPDF404.2 KB

Download

Compare products

Compare this product with similar products

Please wait

Frequently asked questions

Questions about this product

What information should I give KDT's specialists to help me choose network switches?

Tell us the project type, the number of devices, the installation location, distances, the capacity required, how long the system will be in use, your existing infrastructure and the features you expect. This helps us make a more accurate recommendation.

Does KDT provide on-site and remote support for network switches?

Depending on the product and the problem, we provide phone and remote support and, if needed, can send a specialist to the project site.

How do I properly accept a completed network switching project?

After installation, check that all equipment is working properly and review the settings, security, documentation, scenario tests and operator training. Record the results in writing.

Can network switches be integrated with other equipment?

If a common protocol, API, SDK or standard is available, integration can be explored. The details need to be confirmed for the exact models involved.

What does KDT recommend for new projects?

We recommend reviewing the project's requirements and the existing infrastructure before you buy, so that equipment selection, network capacity, power, storage and after-sales service arrangements are aligned from the start.
