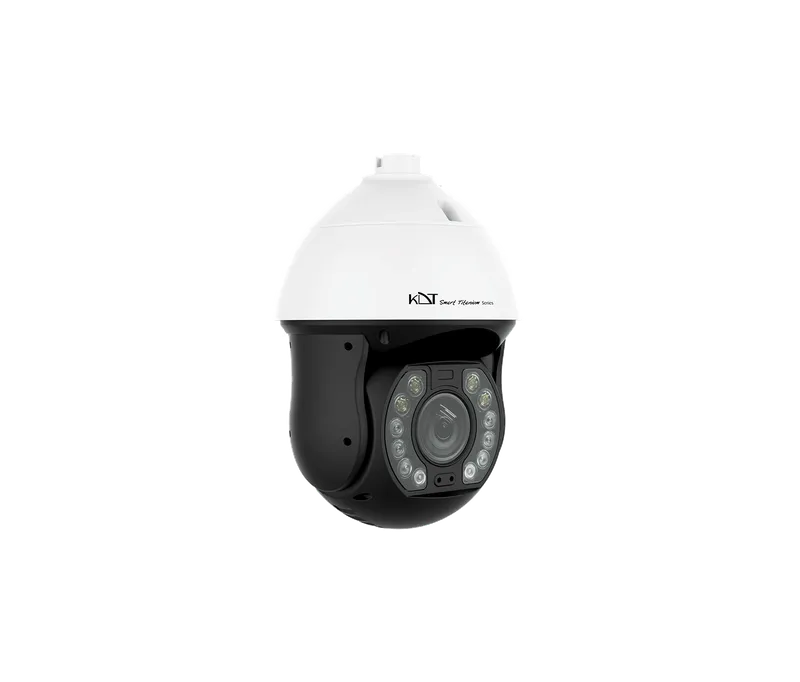

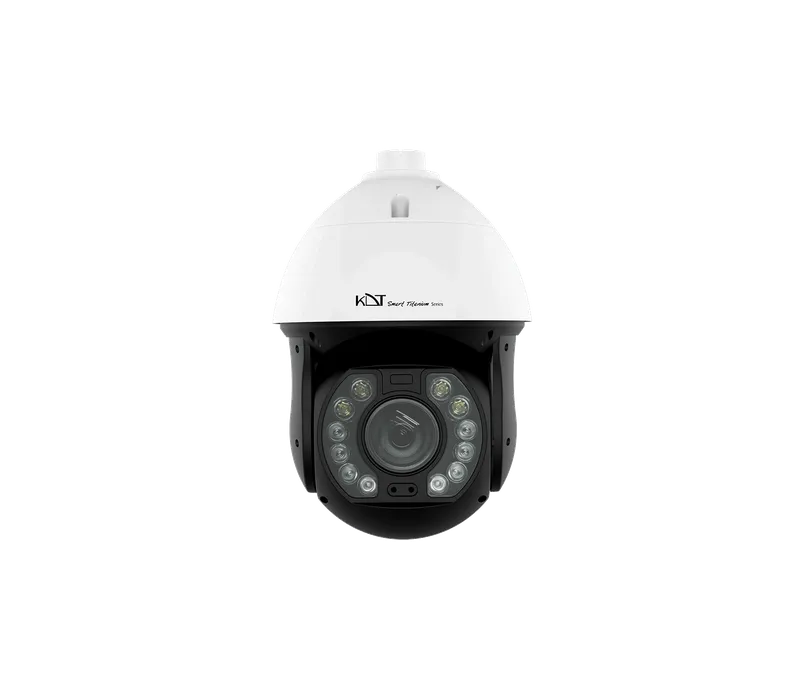

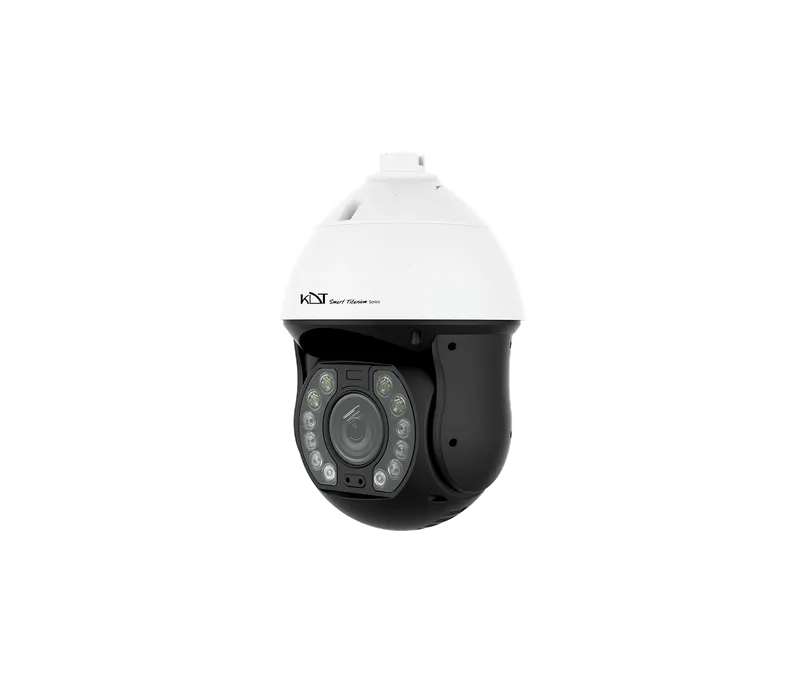

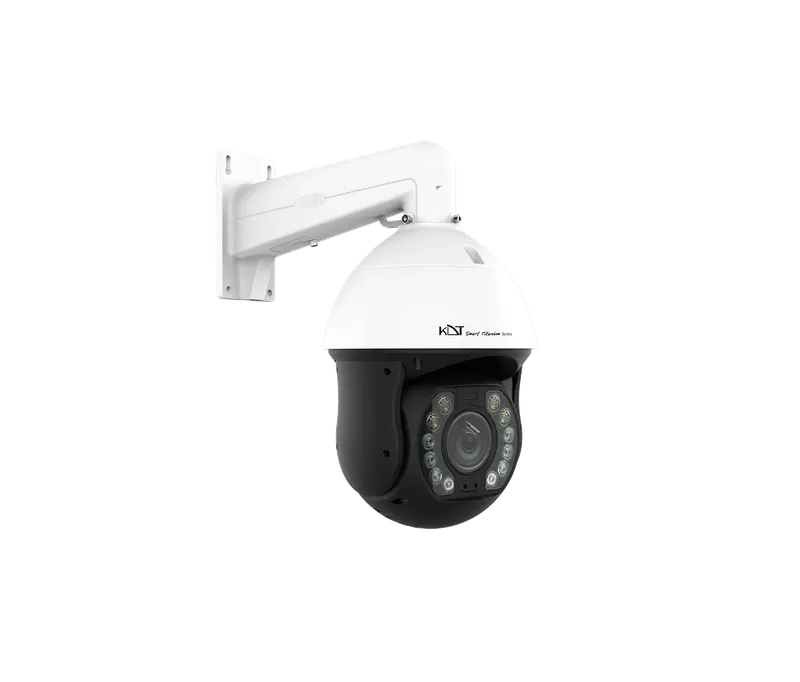

8 MP 38X Speed Dome Camera KI-S250ST80Z38-i250TS

Overview

The KI-S250ST80Z-38i250TS IP speed dome camera from the advanced Smart Titanium series is the most powerful PTZ surveillance tool in KDT's product portfolio. Equipped with exceptional 8-megapixel (UHD) resolution, this flagship captures scene detail with stunning precision. Endless 360° rotation, an extraordinary 38x optical zoom and Auto-Tracking of moving subjects combine to keep every movement and every corner of the site under watch with flawless clarity, even at very long distances. Smart long-range infrared night vision with an unmatched 250-meter range makes this surveillance powerhouse the unrivaled choice for continuous monitoring of vast sites such as industrial parks, ports, airports and major city squares.

Technical specifications

Datasheet (PDF)

Model: KI-S250ST80Z38-i250TS

Camera

Image Sensor: 8MP Super Starlight (Sony-Japan)Progressive scan Cmos Sensor (1/1.8”)
CPU: Dual-Core ARM Cortex
Resolution: 3840*2160 (8MP)
IR Range: Up to 260m
Day/Night Filter: IR Cut Filter Switch (ICR)
Min. Illumination: Color: 0.0008 lux(AGC on) - B/W: 0.0 Lux(IR on)
Night Vision: Super Starlight Technology

Lens

Lens Type: Motorized Auto Focus
Focal Length: 38X Optical Lens (6~228mm) (F-Stop F1.5~F4.8)
Angle of View: D-FOV: 180°, H-FOV: 180°, V-FOV: 180°

Video/Audio

Video Compression: H.264+, H.265+
Audio Compression: ACC, G.711a, G.711u, G.726, PCM
Frame Rate (60 Hz): 30fps@ 6MP, 30fps@ 8MP, 60fps@ 2MP
Transmission Stream: Triple Stream
Video Bit Rate: 32Kbps-16mbps

Network

Protocols: Bonjour, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, NTP, P2P, RTCP, RTMP, RTP, RTSP, SMTP, TCP/IP, UPnP, UPnP-TM
Compatibility: API CGI ONVIF (Profile S, G, T) SDK
Streaming Method: Multicast, Unicast
Web Viewer: Chrome, Edge, Firefox, IE

Interfaces

Network: RJ45(10/100mbps) Ethernet Port
External Audio: Audio in, Audio Out
Internal Audio: N/A
Alarm: Alarm In, Alarm Out
CVBS: N/A
Power: DC/AC In, PoE LAN
Reset Button: Yes (Optional)
Memory Slot: Yes - Micro SD/SDHC/SDXC Slot (256 Gb Max) (ANR Support)

General

Protection Rating: 6KV Surge Protection, IK10, IP67
Cover Lens: Nano Glass
Power Supply: AC24 V ± 25% (3A Max)
PoE Supply: IEEE802.3at-Max 25 Watt
Web Language: English, Persian
Dimensions: 237*335 mm
Weight: 5.2 kg
Case Size: 8”
Operating Humidity: Max Up to 95%RH(Non Condensing)
Operating Temperature: -40°C ~ +70°C

PTZ

Pan Range: 360° Endless
Tilt Range: -10°~90° Auto Flip
Number of Preset: 255
Pan Speed: 0.1°~120°/S
Tilt Speed: 0.1°~60°/S
Patrol: 32
Pattern: 8 - Park Action: Yes

DORI Distance

DORI: Detect:128~4877m Observe: 51~1966m Recognize: 25~975m Identify: 12~487m

Picture Adjust

Picture Function: 2D/3D DNR, BLC, Defog, HLC, ROI
WDR: 120dB, DWDR
Digital Zoom: 16X
Image Stabilization: Yes (EIS)
Shutter Speed: Manual (1/3 ~ 1/100,000), Auto
Image Parameter Control: Off On Timing (Adjust 0~255)
D/N Control: Auto, Color off, Color on, Timing
S/N: > 56dB
Image Parameter: Anti Flicker, Brightness, Contrast, Image Style, Saturation, Sharpness

Functions

Recording: ANR, CMS, FTP, NAS, NVR, SD Card, VMS
Record Type: Manual, Motion Detection, Schedule, Smart Detection
Alarm Triggers: All Intelligent Functions
Event Action: Buzzer, Email, Pop up, PTZ, Recording, Show Message, Snapshot
Event: Smart Motion Detection Video Shelter
Auto Track: Yes
3D Zoom/3D Position: Yes
Intelligent Functions: Area Intrusion Audio exception Detection Blurred Detection Car Shape Detection Crossing Line Statistics Face Detection Fast Moving Human Detection Line Crossing Loitering Detection Object Missing Parking Detection People Gathering Detection Region Entrance Region Exiting Scene Change Detection Unattended Object

Guarantee

Product Guarantee: 5 Years Gold Guarantee
MTBF: 100K hrs min. MIL-HDBK-217F (25°)
