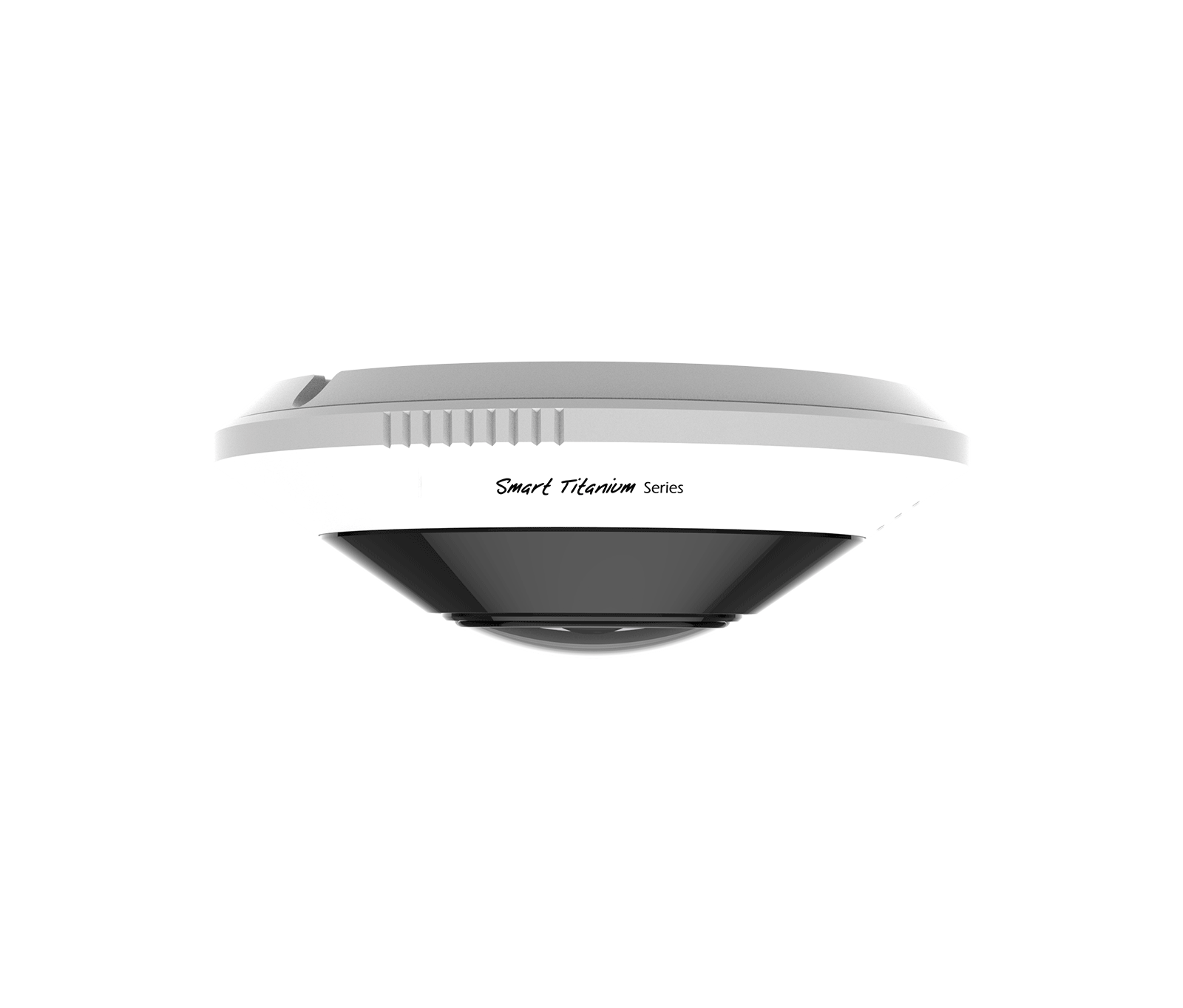

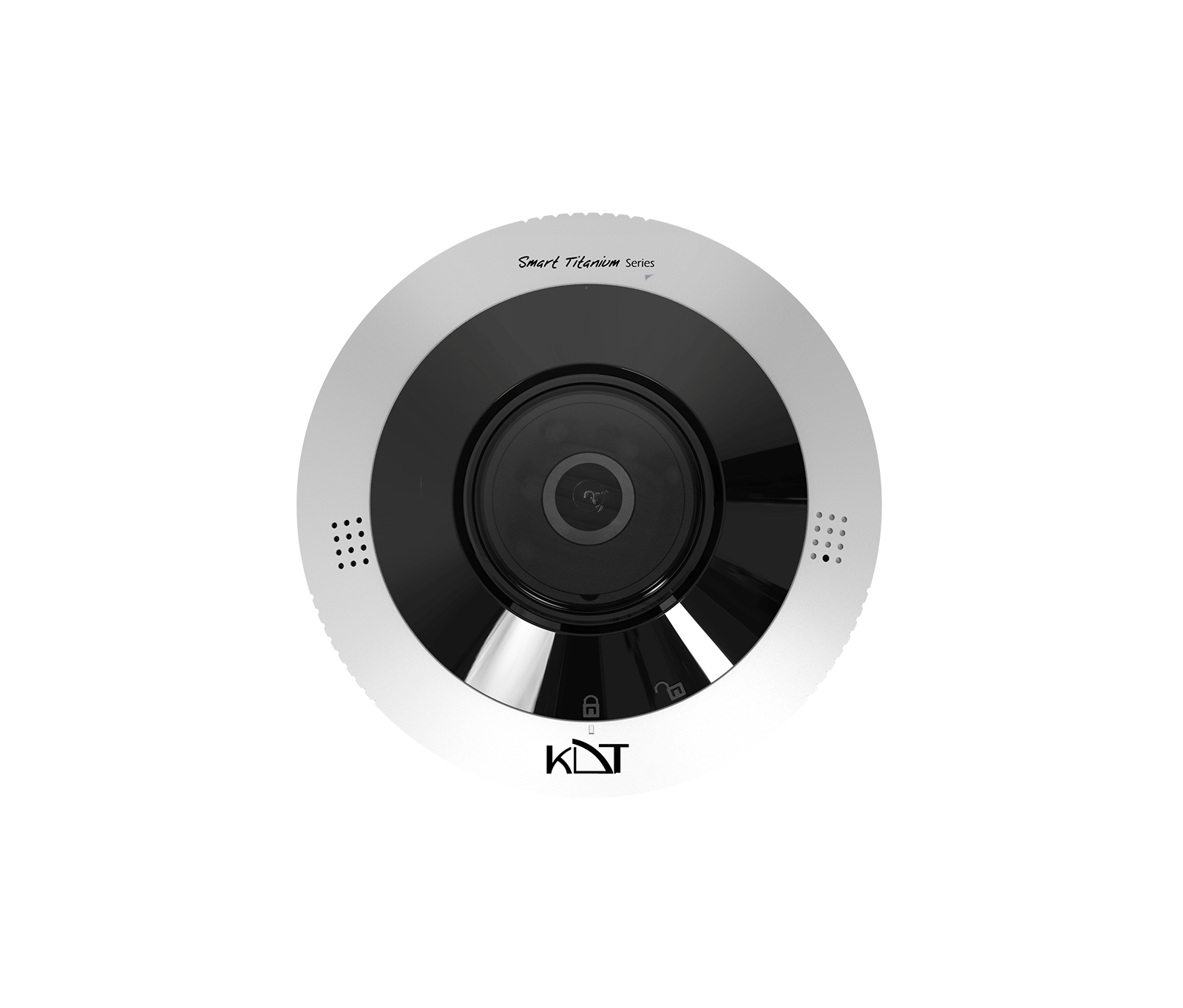

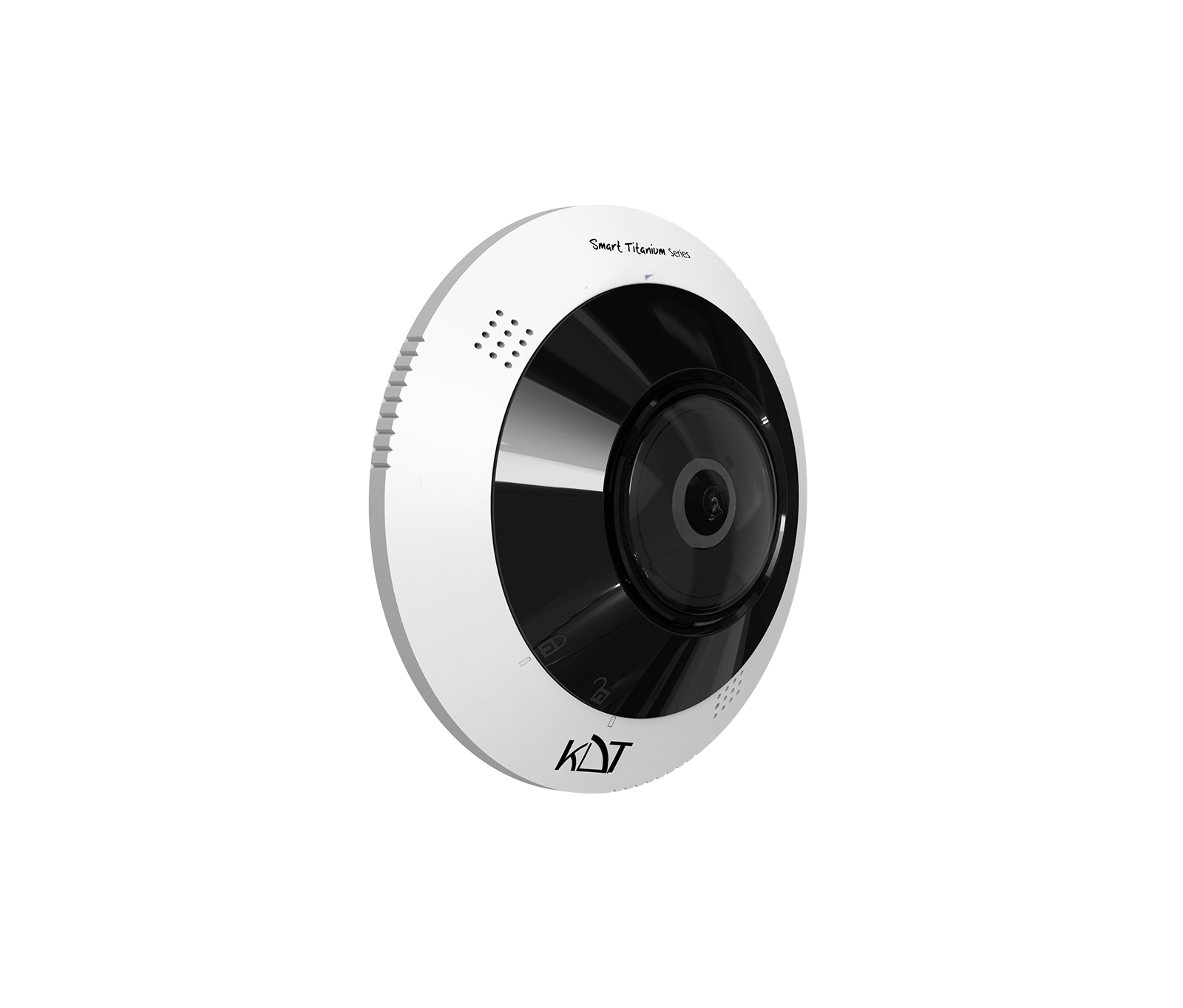

600万红外定焦鱼眼摄像机

型号 KI-F25ST60F-i10TSMP

Smart Titanium系列KI-F25ST60F-i10TSMP鱼眼网络摄像机采用专业鱼眼镜头，可提供完整的180度视野。这款强大的摄像机单台即可覆盖整个空间，不留任何监控盲区。多种显示模式让用户既可以将画面作为一幅完整的全景图查看和管理，也可以将其分割为多个独立画面。红外夜视确保摄像机在黑暗环境中依然表现出色；对于需要以最少摄像机实现全方位完整覆盖的商店、大堂和各类大厅而言，这是一款非常明智的选择。

Illumination IR
Function Microphone
Function Human Vehicle Filter

下载数据手册联系我们

5年金牌保修

技术规格

数据手册（PDF）

型号：KI-F25ST60F-i10TSMP

Camera

Image Sensor: 6MP Progressive scan Cmos Sensor (1/2.5”)
CPU: Dual-Core ARM Cortex
Resolution: 2560*2560 (6MP)
IR Range: Up to 20 m
Day/Night Filter: IR cut filter with auto switch
Min. Illumination: Color: 0.005 lux(AGC on) - B/W: 0.0 Lux(IR on)
Night Vision: Color / IR

Video/Audio

Video Compression: H.264+, H.265+, MJPEG
Audio Compression: ACC, G.711a, G.711u, G.726, PCM
Frame Rate (60 Hz): 4CH@ePTZ(640*480@30fps) FishEye + 4CH@ePTZ(2560*2560 +640*480@30fps) FishEye(2560*2560@30fps) FishEye+Panoramic+3CH@ePTZ(2560*2560+ 1920*1080+640*480@30fps) Panoramic+4CH@ePTZ(2560*2560+640*480@15fps)
Transmission Stream: 6View Mode KDT Protocols Six Stream
Video Bit Rate: 128kb-10Mbps

Network

Protocols: Bonjour, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, Multicast, NAT, NTP, P2P, RTCP, RTP, RTSP, SNMP, TCP/IPv4, TCP/IPv6, UDP, UPnP, UPnP-TM
Compatibility: API CGI ONVIF (Profile S, G, T) SDK
Streaming Method: Multicast, Unicast
Web Viewer: Chrome, Edge, Firefox, IE
Smart Device: Android Phone, Android Tablet, iOS

General

Protection Rating: 6KV Surge Protection, IK10, IP67
Power Supply: DC12V ± 10%
PoE Supply: IEEE802.3af - Max 10 Watt
Web Language: English, Persian
Dimensions: 152*53 mm
Weight: 724 g
Operating Humidity: Humidity 95% or less (non-condensing)
Operating Temperature: -30°C ~ +60°C

Lens

Lens Type: Fixed
Focal Length: 1.68 mm @F2.0
Angle of View: D-FOV: 180°, H-FOV: 180°, V-FOV: 180°

Picture Adjust

Picture Function: 2D/3D DNR, BLC, Defog, HLC, ROI
Shutter Speed: Auto Manual (1/3 ~ 1/100,000)
Image Parameter Control: Off On Timing (Adjust 0~255)
D/N Control: Auto, Color off, Color on, Timing
S/N: > 56dB
Image Parameter: Anti Flicker, Brightness, Contrast, Hue, Image Style, Saturation, Sharpness

Functions

Recording: ANR, CMS, FTP, NAS, NVR, SD Card, VMS
Record Type: Manual, Motion Detection, Schedule, Smart Detection
Alarm Triggers: All Intelligent Functions
Event Action: Buzzer, Email, Pop up, PTZ, Recording, Show Message, Snapshot
Event: Motion Detection, Video Shelter
Intelligent Functions: Area Intrusion, Line Crossing, Region Entrance, Region Exiting
