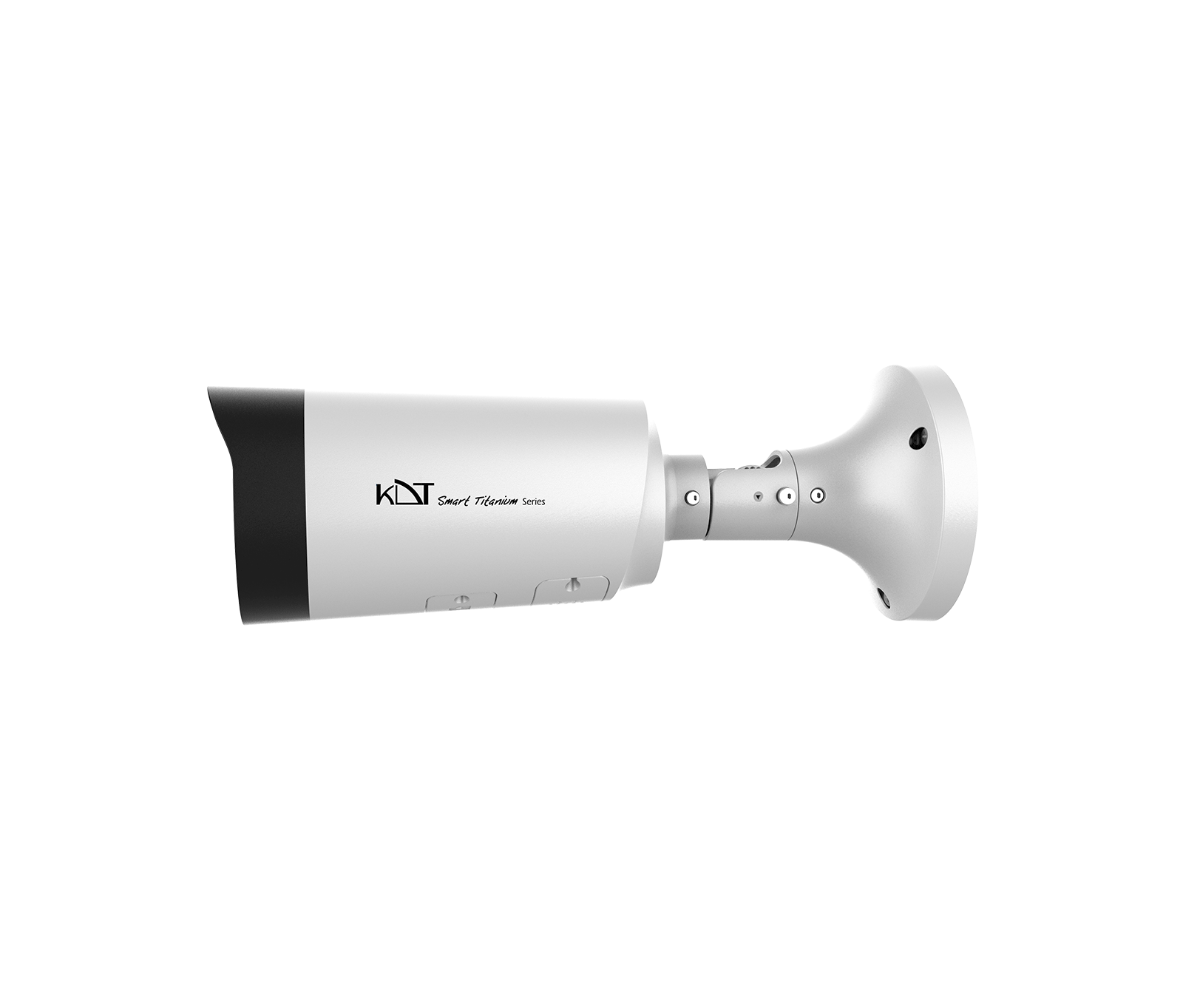

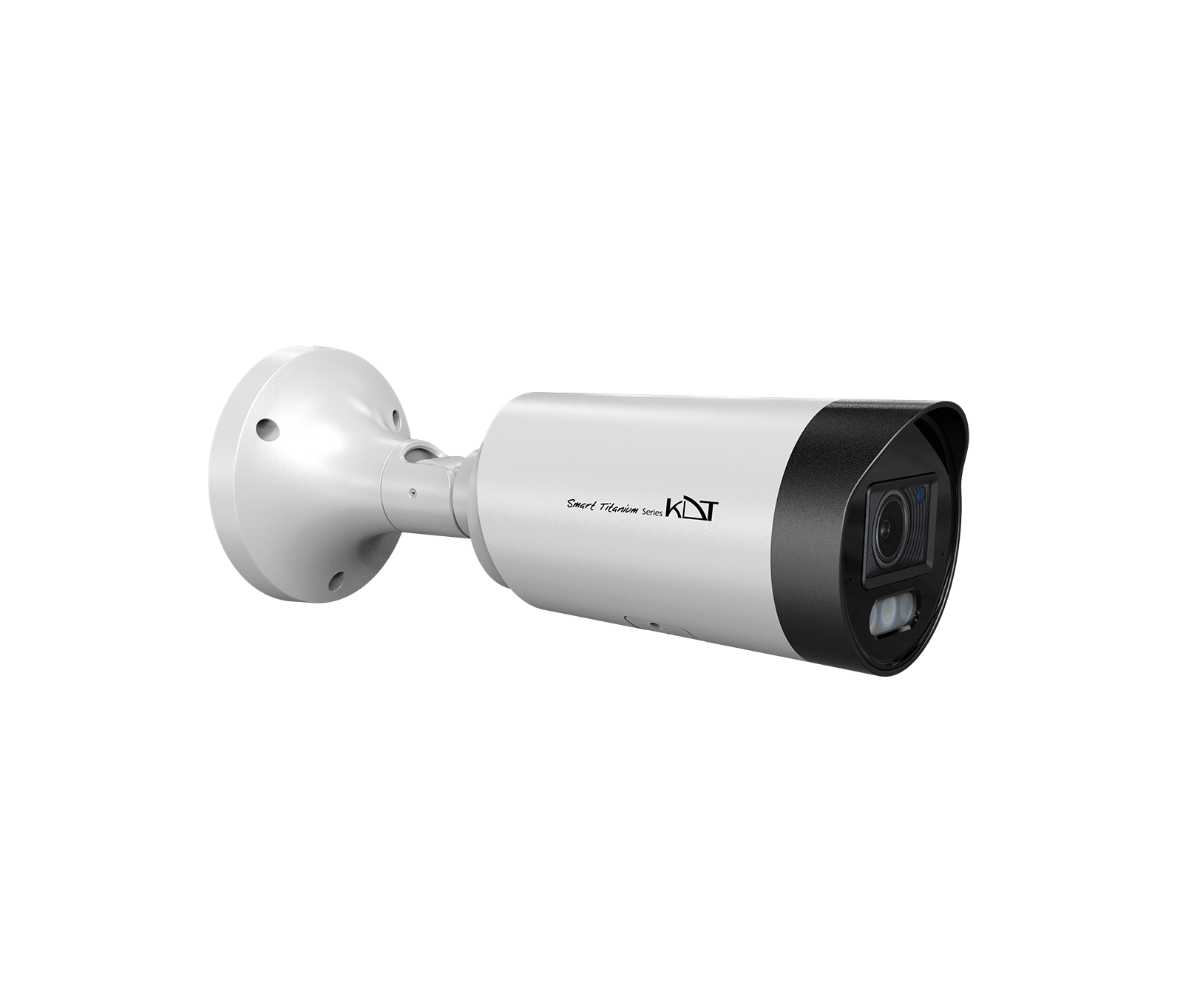

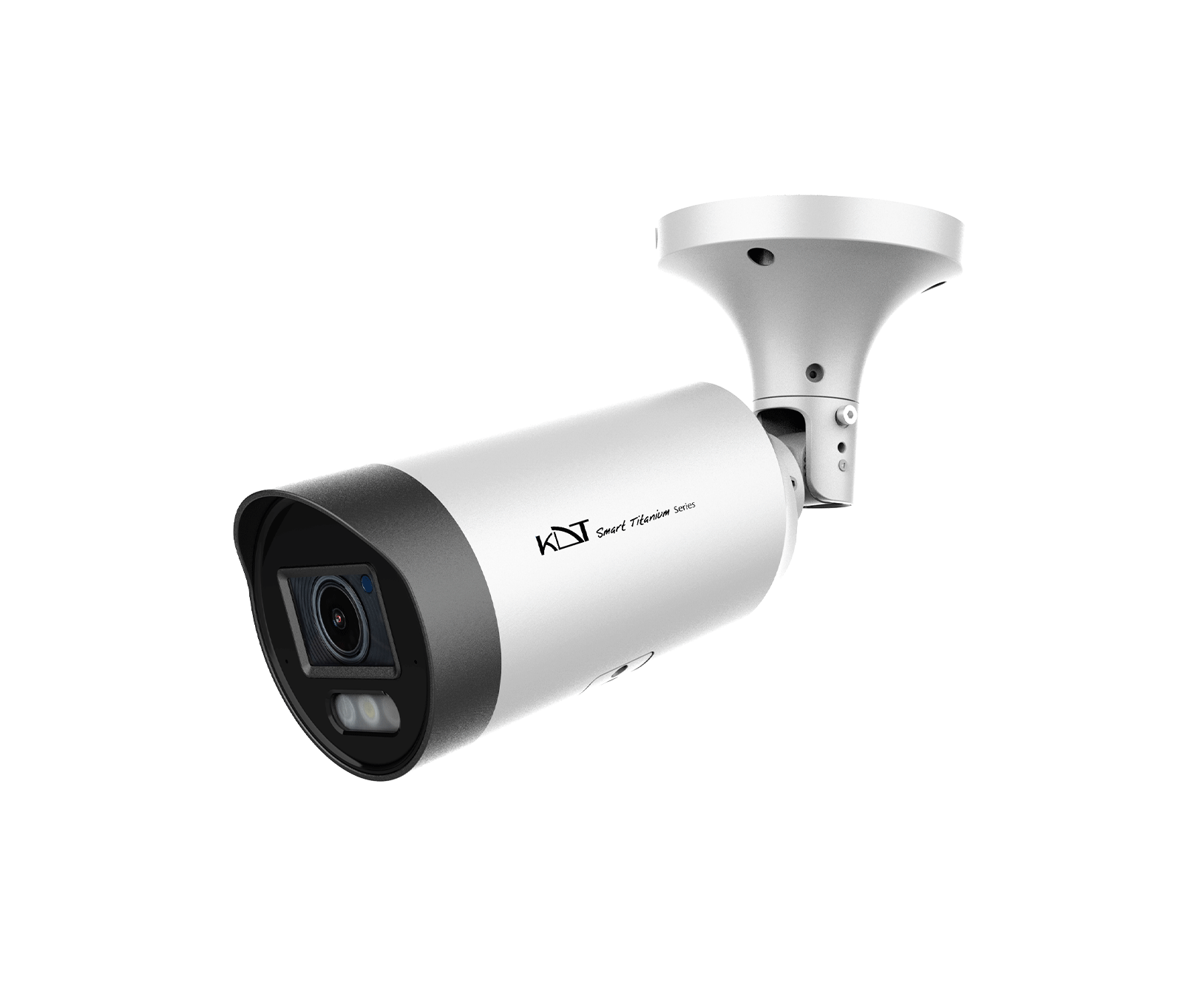

8MP Active Deterrence Motorized Bullet Camera KI-B55ST80A-i70TSMPUR

Overview

The KI-B55ST80A-i70TSMPUR IP bullet camera from the Smart Titanium series is more than a surveillance camera: it is an active defense and deterrence system. Along with ultra-sharp 8MP images and dual-light night vision, it is equipped with flashing red and blue warning lights and an audible siren. As soon as any suspicious behavior is detected, the system activates automatically and drives intruders away before an incident can occur. A motorized lens, a built-in speaker and microphone, and advanced smart analytics make it the most complete solution for proactive protection of sensitive sites.

Technical specifications

Datasheet (PDF)

Model: KI-B55ST80A-i70TSMPUR

Camera

Image Sensor: 8MP (Sony-Japan) Progressive scan Cmos Sensor (1/2.8”)
CPU: Dual-Core ARM Cortex
Resolution: 3840*2160 (8MP)
IR Range: Up to 80
Warm Light Range: Up to 50
Day/Night Filter: IR cut filter with auto switch
Min. Illumination: Color: 0.006 lux(AGC on) -B/W: 0.0 Lux(IR on)(Warm Light On)
Night Vision: Dual Light Technology

DORI Distance

DORI: Detect:55~251m Observe: 22~100m Recognize: 11~50m Identify: 5.6~25m

Video/Audio

Video Compression: H.264+, H.265+, MJPEG
Audio Compression: ACC, G.711a, G.711u, G.726, PCM
Frame Rate (60 Hz): 30fps@ 4MP, 30fps@ 6MP, 30fps@ 8MP, 90fps@ 2MP
Transmission Stream: Triple Stream
Video Bit Rate: 11 Kbps~16 Mbps

Network

Protocols: Bonjur, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, Multicast, NAT, NTP, P2P, RTCP, RTMP, RTP, RTSP, SMTP, SNMP, TCP/IPv4, TCP/IPv6, UDP, UPnP, UPnP-TM
Compatibility: API CGI ONVIF (Profile S, G, T) SDK
Streaming Method: Multicast, Unicast
Web Viewer: Chrome, Edge, Firefox, IE
Smart Device: Android Phone, Android Tablet, iOS

Interfaces

Network: 1 RJ45 (10M / 100M) Ethernet Port
External Audio: Audio in, Audio Out
Internal Audio: Internal Mic
Alarm: Alarm In, Alarm Out
Power: DC In, PoE LAN
Reset Button: Yes (Optional)
Memory Slot: Yes - Micro SD/SDHC/SDXC Slot (256 Gb Max) (ANR Support)

Guarantee

Product Guarantee: 5 Years Gold Guarantee
MTBF: 100K hrs min. MIL-HDBK-217F (25°)
Certificates: CFR, CN, EN, FCC

Lens

Lens Type: Motorized Auto Focus
Focal Length: 2.7~13.5 mm @F1.6
Angle of View: D-FOV: 128°~38°, H-FOV: 108°~34°, V-FOV: 57°~19°

Active Deterrence

Red/Blue Light Warning: Flash: 5 s–30 s; frequency: high/medium/low
Sound Warning: Audio 1/2/3; Volume: high/medium/low; duration: 5 s–30 s; 106 dB

Picture Adjust

Picture Function: 2D/3D DNR, BLC, Defog, HLC, LPC, ROI, Rotate
WDR: 140dB, DWDR
Image Stabilization: Yes (EIS)
Shutter Speed: Auto Manual (1/3 ~ 1/100,000)
Image Parameter Control: Off On Timing (Adjust 0~255)
D/N Control: Auto, Color off, Color on, Timing
S/N: > 56dB
Image Parameter: Anti Flicker, Brightness, Contrast, Hue, Image Style, Saturation, Sharpness

Functions

Recording: ANR, CMS, FTP, NVR, SD Card, VMS
Record Type: Manual, Motion Detection, Schedule, Smart Detection
Alarm Triggers: All Intelligent Functions
Event Action: Buzzer, Email, Pop up, PTZ, Recrding, Show Message, Smart Light, Snapshot
Event: Smart Motion Detection Video Shelter
Intelligent Functions: Area Intrusion Audio exception Detection Blurred Detection Crowd Density Monitorring Face Detection Fast Moving Line Crossing Loitering Detection Parking Detection Region Entrance Region Exiting Scene Change Detection

General

Protection Rating: 6KV Surge Protection, IK10, IP67
Power Supply: DC12V ± 10%
PoE Supply: IEEE802.3af - Max 16 Watt
Web Language: English, Persian
Dimensions: 278*105 mm
Weight: 1.3 Kg
Operating Humidity: 95% or less (non-condensing)
Operating Temperature: -30°C ~ +60°C

Downloads

Documentation

KI-B55ST80A-i70TSMPUR

DatasheetPDF499.9 KB

Download

Software and firmware

ST-E50B-6MP

Version V500.XXX.E50B.XXX.C0011.XXXUPF38.1 MBUpdated November 19, 2025

Download

Compare products

Compare this product with similar products

Please wait

Frequently asked questions

Questions about this product

Why does operating temperature matter for CCTV cameras?

High temperatures can shorten component life and reduce the product's stability. Good ventilation and staying within the specified temperature range are important.

Do CCTV cameras need a UPS?

If a power outage would interrupt the service or cause data loss, putting sensitive equipment on a UPS can be worthwhile.

Can several CCTV cameras be used on the same network?

Yes. With a properly designed addressing scheme, network capacity, VLANs and management resources, multiple devices can be deployed within a standard architecture.

How do VLANs help with CCTV cameras?

VLANs can separate the traffic of different services and improve management, security and broadcast control. However, they must be designed correctly and configured on the equipment at both ends.

What is SNMP used for in managing CCTV cameras?

SNMP allows monitoring systems to collect management information such as interface status, resource usage and certain health indicators.

Frequently asked questions: CCTV Cameras

Answers to common questions about this product line, from the KDT Help Center.

Why does my CCTV camera drop its connection from time to time?

Common causes include unstable power, an unreliable cable or link, heavy load, incorrect settings and firmware issues. Reviewing the event log and testing step by step will help you pinpoint the cause.

Open in the Help Center

Does after-sales service for CCTV cameras continue after the warranty expires?

As long as a product can still be supported technically and its technology has not become obsolete, we can continue to provide repairs and spare parts after the warranty expires.

Open in the Help Center

Do CCTV cameras need an internet connection?

Not necessarily for basic operation. Some management or remote-access features may require internet access, but local operation can work independently.

Open in the Help Center

Does KDT offer advice on choosing CCTV cameras?

Yes. We offer expert consultation to assess your project's needs, select the equipment and design the solution. Getting this advice before you buy can help you avoid making the wrong choice.

Open in the Help Center

Where should I start when choosing the right CCTV cameras?

Start by defining the intended use, the number of devices, the installation environment, the capacity required and your plans for future expansion. Then choose the model and technical specifications based on what the project actually needs.
