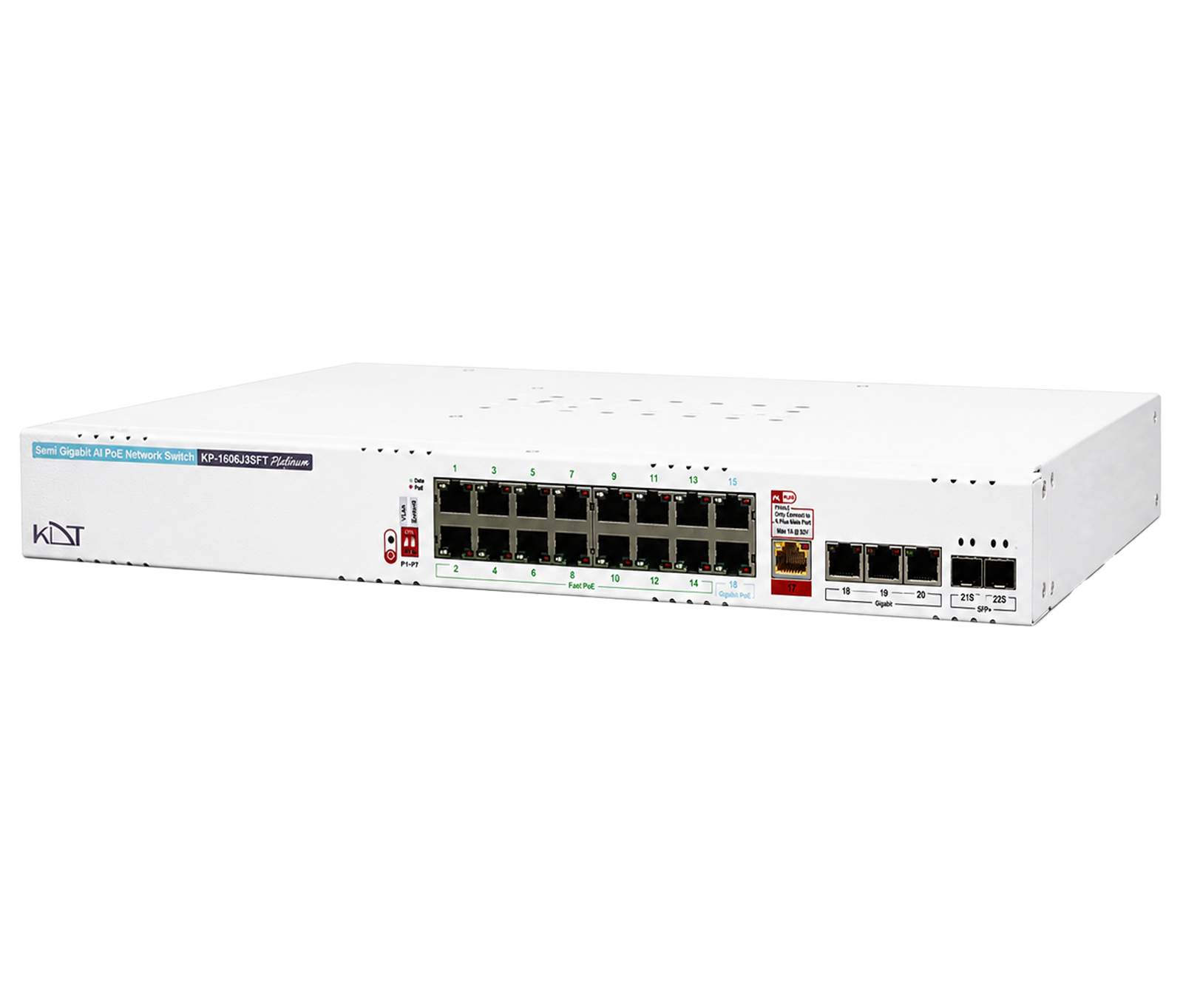

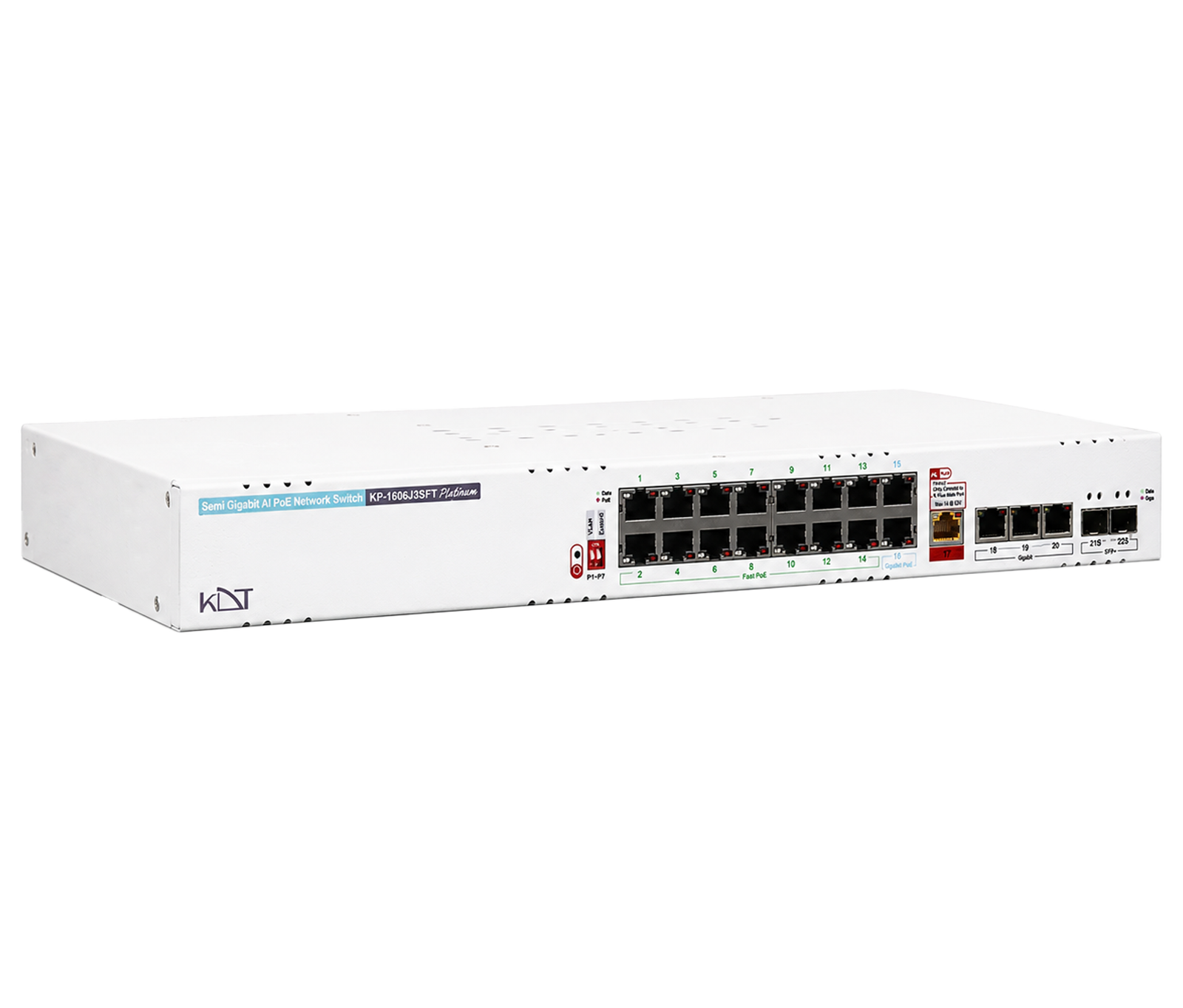

Semi Gigabit AI PoE+ Switch KP-1606J3SFT

Overview

The KP-1606J3SFT from the Platinum series is a hybrid Fast Ethernet/Gigabit switch with AI features and PoE+, engineered to deliver power and data across large networks. It has 14 Fast Ethernet PoE ports, two Gigabit PoE ports, three Gigabit RJ45 uplink ports and two Gigabit SFP uplink ports, and delivers a powerful 400 W of output power. A Power Transmit port, 13.4 Gbps of internal bandwidth and a smart DIP switch for easy management make this metal rackmount switch ideal for high-density surveillance infrastructure.

Technical specifications

Datasheet (PDF)

Model: KP-1606J3SFT

Interfaces

Total Port: 22 Ports
PoE Output (Max): 400 Watt
PoE Port Control: IC+ IP804AR
Fast RJ45 PoE Port: 14
Gigabit RJ45 PoE Port: 2
Gigabit RJ45 Uplink Port: 3
Gigabit SFP Uplink Port: 2
Power Transmit RJ45: 1 (Male)
Combo Uplink Port: N/A
Dip Switch Ai: Yes

Hardware

Processor Type: IC+ / Realtek
LED Panel: Data Activity, PoE Activity, Power Activity, Redundant Activity
Main Board: Double Layer
Case: Metal Case
Mounting: Rackmount

General

Protection Rating: IP51
Web Language: N/A
Dimensions: 440*130*45 mm
Weight: 1.985 kg
Storage Temperature: -20°C ~ +60°C / 10% ~ 90% RH
Operating Temperature: -15°C ~ +50°C / 10% ~ 90% RH
Radiation Electromagnetic: EN55016

Guarantee

Product Guarantee: 3 Years Platinum Guarantee
MTBF: 100,000 hrs min. MIL-HDBK-217F (25°)

Network Performance

Standard: IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3az, IEEE802.3u, IEEE802.3x
Protocols: CSMA/CD
Speed: Ethernet 10Mbps (half duplex), 20Mbps (full duplex); 10BASE-T: 14,880bps/port Fast Ethernet 100Mbps (half duplex), 200Mbps (full duplex); 100BASE-TX:14,8800bps/port Gigabit Ethernet 1000Mbps (half duplex), 2000Mbps (full duplex); 1000BASE-TX: 1488000bps/port
Cabling: 1000Base-TX: Cat 6 UTP or above (100m) PoE=250M 100Base-TX:Cat 6 UTP(120m) PoE=250M 10Base-TX: Cat 5 or above (250m) PoE=250M
Bandwidth: 13.4Gb Internal Bandwidth
MAC Table: 16Kb
Auto MDI: Yes All Ports
Console: N/A
Transfer Pattern: Store & Forward

PD`S

IP Camera: Yes
IP Phone: Yes
(+)2/1,(: Yes

Function Ai

Vlan: Yes / By Setting Dip Switch Number 1(P1-P7)
250 Extend: Yes / By Setting Dip Switch Number 2(P1-P7)
Watchdog: Yes / Enabled By Default (P1-P16)

Power Supply

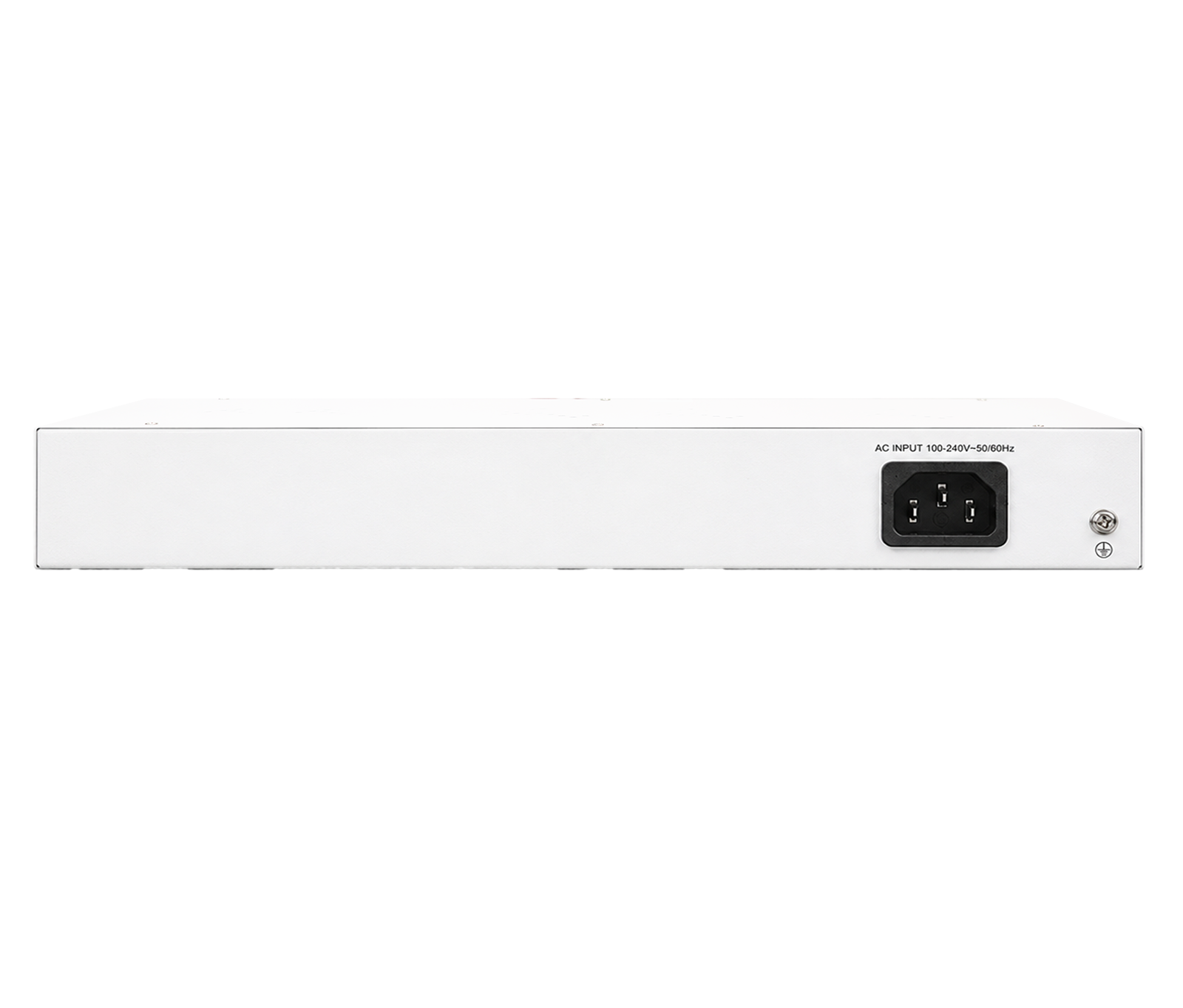

Power: 200~240V AC, 50~60Hz
Redundant: Yes (K+ Feature)
LED Power: Yes
Power Cable: Available
