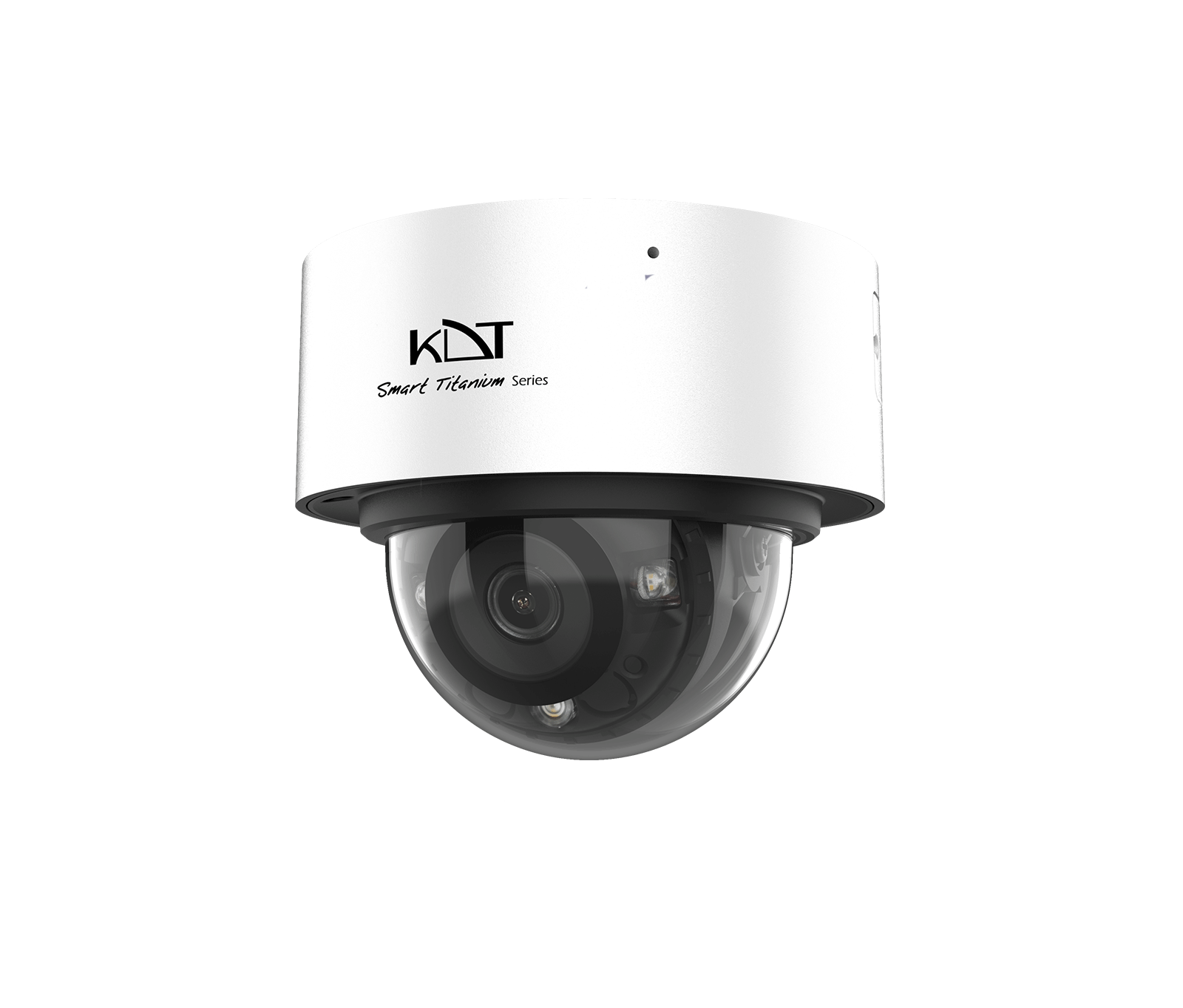

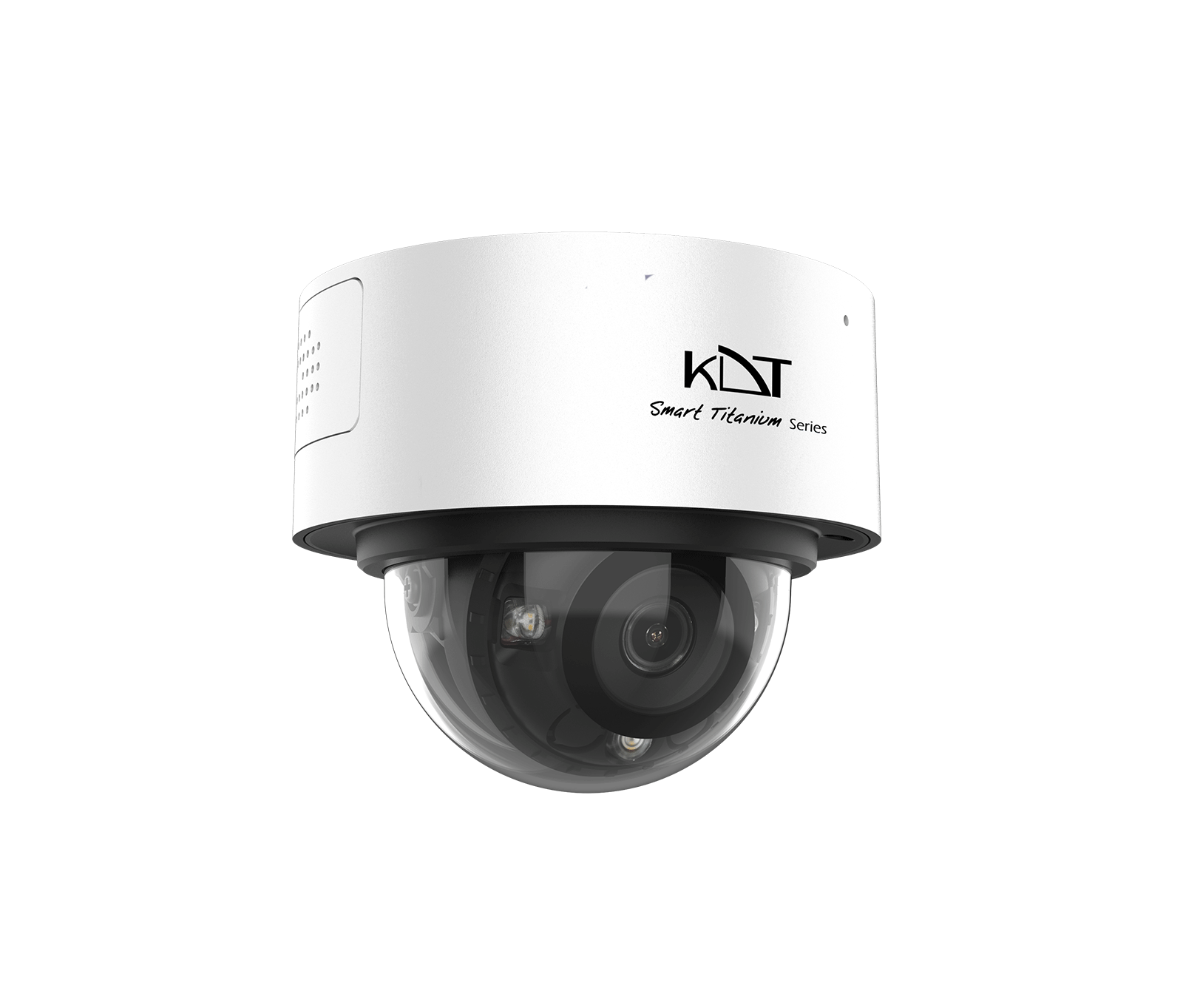

800万智能双光定焦半球摄像机

型号 KI-D15ST80F-i30TSMU

半球网络摄像机KI-D15ST80F-i30TSMU 属于 Smart Titanium系列，以紧凑美观的设计带来出色的800万像素分辨率。卓越的分辨率让用户不仅能看清场景中最细微的细节，还可对录像进行数字变焦而画质无损。此外，智能双光夜视技术确保夜间画质同样保持在最佳水平。智能图像分析功能与十分坚固的机身相结合，使其成为人车往来频繁区域监控的可靠、高效之选。

Illumination Dual Light
Function Face Detection
Function SMD

下载数据手册联系我们

5年金牌保修

技术规格

数据手册（PDF）

型号：KI-D15ST80F-i30TSMU

Camera

Image Sensor: 8MP (Sony-Japan) Progressive scan Cmos Sensor (1/2.8”)
CPU: Dual-Core ARM Cortex
Resolution: 3840*2160 (8MP)
IR Range: Up to 40 m
Warm Light Range: Up to 20 m
Day/Night Filter: IR cut filter with auto switch
Min. Illumination: Color: 0.001 lux(AGC on) -B/W: 0.0 Lux(IR on)(Warm Light On)
Night Vision: Dual Light Technology

Picture Adjust

Picture Function: 2D/3D DNR, BLC, Defog, HLC, ROI
WDR: 120dB, DWDR
Image Stabilization: Yes (EIS)
Shutter Speed: Auto Manual (1/3 ~ 1/100,000)
Image Parameter Control: Off On Timing (Adjust 0~255)
D/N Control: Auto, Color off, Color on, Timing
S/N: > 56dB
Image Parameter: Anti Flicker, Brightness, Contrast, Hue, Image Style, Saturation, Sharpness

Functions

Recording: ANR, CMS, FTP, NAS, NVR, SD Card, VMS
Record Type: Manual, Motion Detection, Schedule, Smart Detection
Alarm Triggers: All Intelligent Functions
Event Action: Buzzer, Email, Pop up, PTZ, Recrding, Show Message, Smart Light, Snapshot
Event: Smart Motion Detection Video Shelter
Intelligent Functions: Area Intrusion Audio exception Detection Blurred Detection Crowd Density Monitorring Face Detection Fast Moving Heat Map Line Crossing Loitering Detection Region Entrance Region Exiting Scene Change Detection Smart People Counting

General

Protection Rating: 6KV Surge Protection, IK10, IP67
Power Supply: DC12V ± 10%
PoE Supply: IEEE802.3af - Max 8.5 Watt
Web Language: English, Persian
Dimensions: 110*91.8 mm
Weight: 852g
Operating Humidity: 95% or less (non-condensing)
Operating Temperature: -30°C ~ +60°C

Lens

Lens Type: Fixed
Focal Length: (3.6 mm Optional), 2.8 mm @F1.6
Angle of View: D-FOV: 128°-(106°), H-FOV: 108°-(89°), V-FOV: 58°-(46°)

DORI Distance

DORI: Detect:55m-(78m) Observe:22m-(31m) Recognize:11m -(15m) Identify: 5.5m-(7.8m)

Video/Audio

Video Compression: H.264+, H.265+, MJPEG
Audio Compression: ACC, G.711a, G.711u, G.726, PCM
Frame Rate (60 Hz): 30fps@ 4MP, 30fps@ 6MP, 30fps@ 8MP, 90fps@ 2MP
Transmission Stream: Triple Stream
Video Bit Rate: 11 Kbps~16 Mbps

Network

Protocols: Bonjur, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, Multicast, NAT, NTP, P2P, RTCP, RTMP, RTP, RTSP, SMTP, SNMP, TCP/IPv4, TCP/IPv6, UDP, UPnP, UPnP-TM
Compatibility: API CGI ONVIF (Profile S, G, T) SDK
Streaming Method: Multicast, Unicast
Web Viewer: Chrome, Edge, Firefox, IE
Smart Device: Android Phone, Android Tablet, iOS

Interfaces

Network: 1 RJ45 (10M / 100M) Ethernet Port
External Audio: Audio in, Audio Out
Internal Audio: Internal Mic
Alarm: Alarm In, Alarm Out
Power: DC In, PoE LAN
Reset Button: Yes (Optional)
Memory Slot: Yes - Micro SD/SDHC/SDXC Slot (256 Gb Max) (ANR Support)

Guarantee

Product Guarantee: 5 Years Gold Guarantee
MTBF: 100K hrs min. MIL-HDBK-217F (25°)
Certificates: CFR, CN, EN, FCC

下载

文档

KI-D15ST80F-i30TSMU

数据手册PDF504.2 KB

下载

软件与固件

ST-E50B-8MP

版本V500.XXX.E50B.XXX.C0011.XXXUPF36.01 MB27-10-2025

下载

产品对比

将本产品与同类产品进行对比

请稍候

常见问题

与本产品相关的问题

如何设置摄像机的移动侦测（Motion）？

部分KDT摄像机支持移动侦测功能，当监控画面中出现移动时，会及时向您发出报警。启用方法：进入“设置 > 事件类型 > 视频检测 > 移动侦测”菜单，根据需要调整相关参数。您还可以设置检测区域，当该区域内出现移动时即触发报警。

Titanium Smart、Ecoline Smart和Molybdenum Light系列有什么区别？哪个系列更适合我们？

三个系列的区别在于智能化水平、传感器品质和保修期限。Titanium Smart是最高端的系列，提供5年金牌保修和6年画质稳定保障。Ecoline Smart属于专业级系列，提供3年白金保修和4年画质保障，具备6项智能功能（越线侦测、虚拟围栏、进入/离开区域侦测、人脸侦测和快速移动侦测）。Molybdenum Light提供2年银牌保修，主要为激光高速球机和远距离应用而设计。

Smart IR、Warm Light、Dual Light和Super Starlight这几种夜视方式有什么区别？

Smart IR采用SMD红外LED，可在约40～60米范围内提供黑白图像，并根据目标距离自动调节补光强度，避免近处画面过曝。Warm Light / White Light采用可见光补光，夜间也能呈现彩色图像（有效距离约30米）。Dual Light兼具两种补光方式：平时使用红外补光，触发报警时开启白光。Super Starlight（采用索尼1/1.8英寸传感器）最低照度可达0.0001 lux，无需任何辅助光源即可呈现彩色图像。如果需要分辨衣着或车辆的颜色，应选择Dual Light或Starlight。
