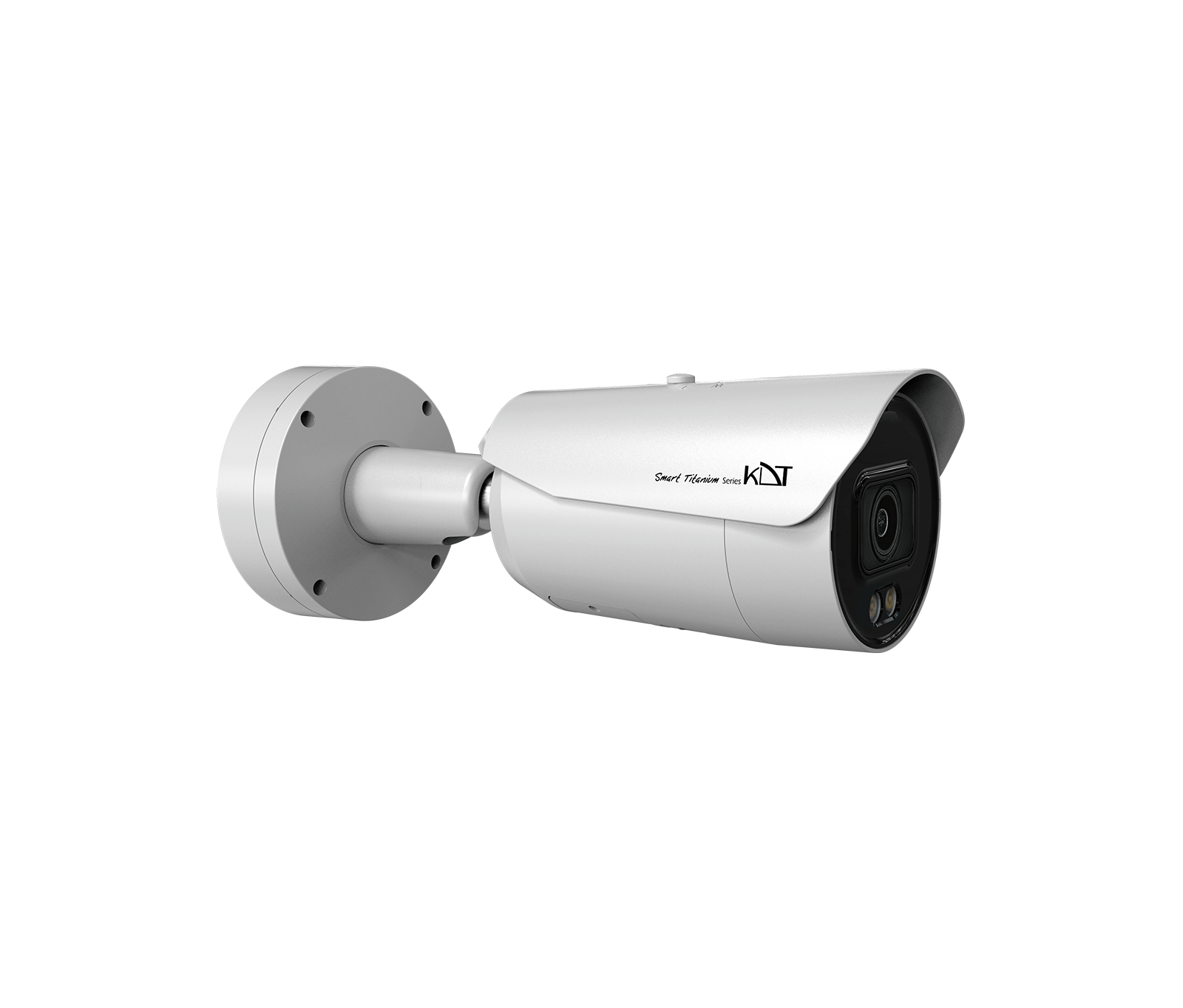

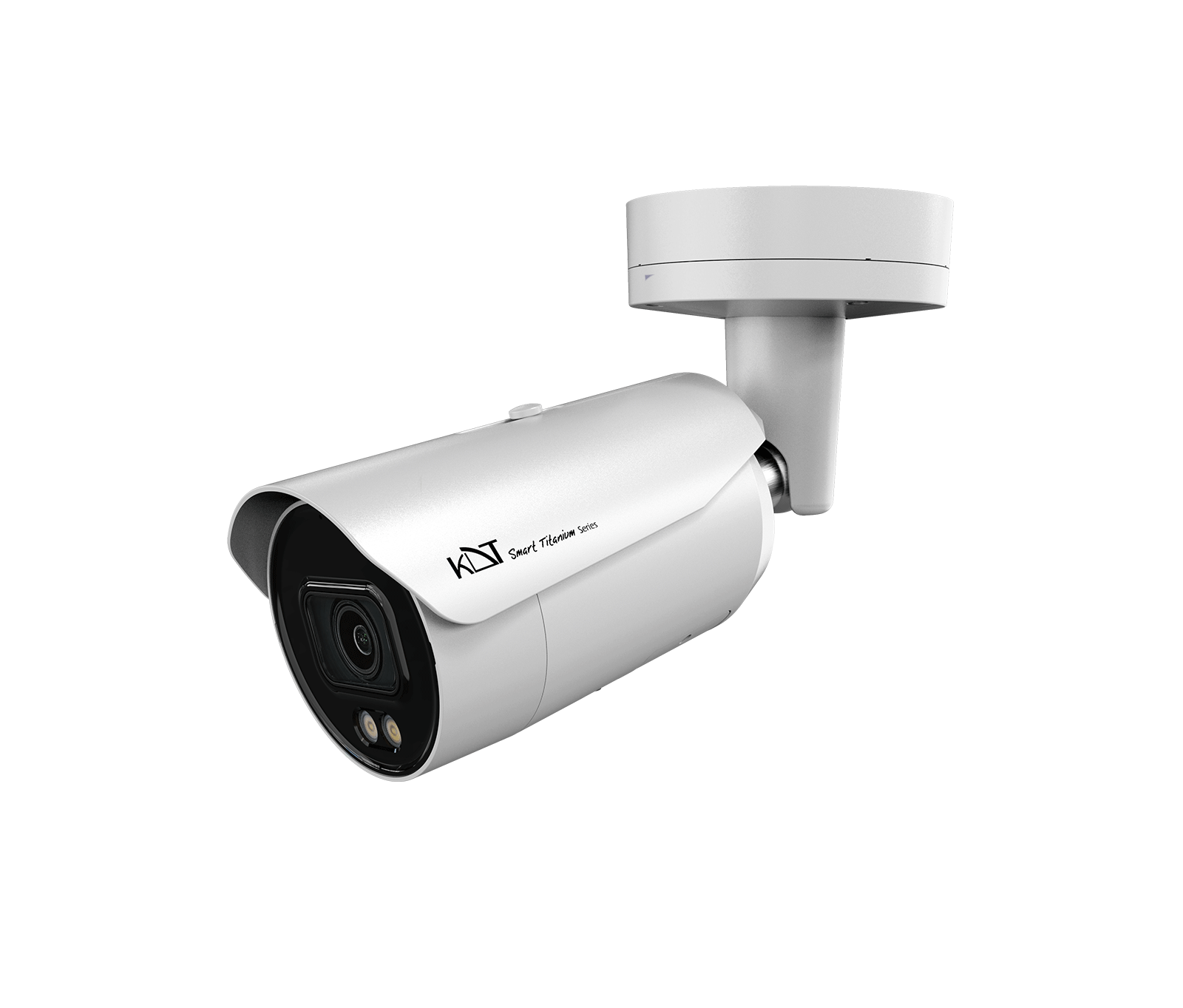

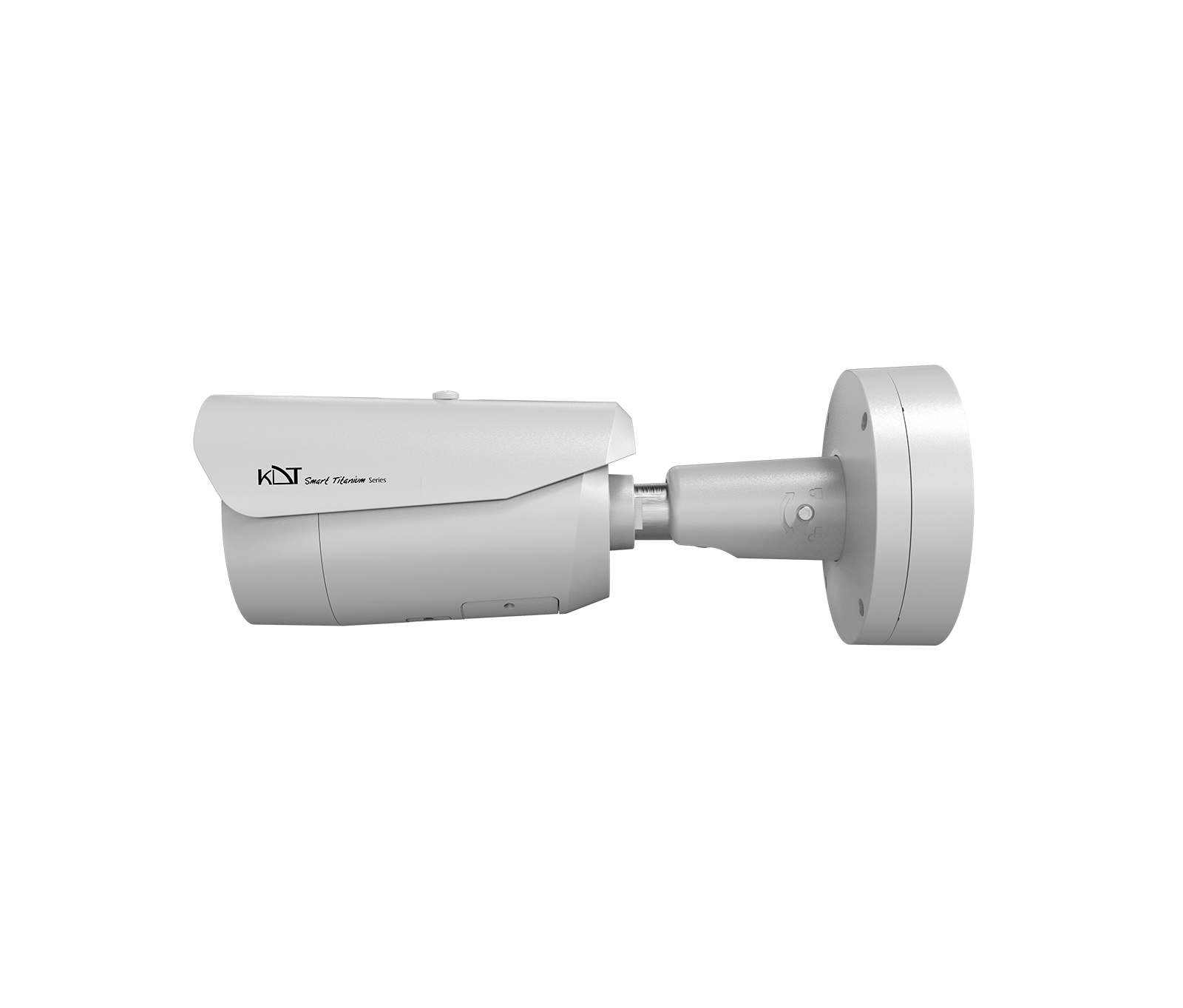

600万红外电动变焦筒型摄像机

型号 KI-B85ST60A-i100TSMR

Smart Titanium系列KI-B85ST60A-i100TSMR筒型网络摄像机，堪称专为超远距离监控打造的重量级产品。其电动镜头变焦范围宽广，既能全面覆盖大范围场景，又能在需要时看清远处的细微之处。本机配备大功率红外补光灯，即使远处一片漆黑也不再是障碍，可实现远距离夜视。此外，内置的红蓝闪烁警示灯可起到主动威慑作用，在任何安全事件发生之前，就警示入侵者：此处有强大的监控系统严密守护。这款摄像机是大型工业厂区、道路及周界区域安防的不二之选。

Illumination IR
Illumination Red & Blue Light
Function LPC

下载数据手册联系我们

5年金牌保修

技术规格

数据手册（PDF）

型号：KI-B85ST60A-i100TSMR

Camera

Image Sensor: 6MP (Sony-Japan) Progressive scan Cmos Sensor (1/2.8”)
CPU: Dual-Core ARM Cortex
Resolution: 3200*1800 (6MP)
IR Range: Up to 110m
Day/Night Filter: IR cut filter with auto switch
Min. Illumination: Color: 0.001 lux(AGC on) - B/W: 0.0 Lux(IR on)
Night Vision: Color /IR

DORI Distance

DORI: Detect:142~804m Observe: 57~321m Recognize: 28~160m Identify: 14~80m

Video/Audio

Video Compression: H.264+, H.265+, MJPEG
Audio Compression: ACC, G.711a, G.711u, G.726
Frame Rate (60 Hz): 30fps@ 4MP, 30fps@ 6MP, 90fps@ 2MP
Transmission Stream: Triple Stream
Video Bit Rate: 11 Kbps~16 Mbps

Network

Protocols: Bonjur, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, Multicast, NAT, NTP, P2P, RTCP, RTMP, RTP, RTSP, SMTP, SNMP, TCP/IPv4, TCP/IPv6, UDP, UPnP, UPnP-TM
Compatibility: API CGI ONVIF (Profile S, G, T) SDK
Streaming Method: Multicast, Unicast
Web Viewer: Chrome, Edge, Firefox, IE
Smart Device: Android Phone, Android Tablet, iOS

Interfaces

Network: 1 RJ45 (10M / 100M) Ethernet Port
External Audio: Audio in, Audio Out
Internal Audio: Internal Mic
Alarm: Alarm In, Alarm Out
Power: DC In, PoE LAN
Reset Button: Yes (Optional)
Memory Slot: Yes - Micro SD/SDHC/SDXC Slot (256 Gb Max) (ANR Support)

General

Protection Rating: 6KV Surge Protection, IK10, IP67
Back Box: Yes
Power Supply: DC12V ± 10%
PoE Supply: IEEE802.3af - Max 15 Watt
Web Language: English, Persian
Dimensions: 360*140 mm
Weight: 2.9 Kg
Operating Humidity: 95% or less (non-condensing)
Operating Temperature: -30°C ~ +60°C

Active Deterrence

Red/Blue Light Warning: Flash: 5 s–30 s; frequency: high/medium/low

Lens

Lens Type: Motorized Auto Focus
Focal Length: 5~50 mm @F1.6
Angle of View: D-FOV: 54°~10.5°, H-FOV: 48.3°~9.1°, V-FOV: 27.1°~5.1°

Picture Adjust

Picture Function: 2D/3D DNR, BLC, Defog, HLC, LPC, ROI
WDR: 120dB, DWDR
Image Stabilization: Yes (EIS)
Shutter Speed: Auto Custom Manual (1/3 ~ 1/100,000) Schedule
Image Parameter Control: Off On Timing (Adjust 0~255)
D/N Control: Auto, Color off, Color on, Filter Time, Sensivity, Timing
S/N: > 56dB
Image Parameter: Anti Flicker, Brightness, Contrast, Hue, Image Style, Saturation, Sharpness

Functions

Recording: ANR, CMS, FTP, NAS, NVR, SD Card, VMS
Record Type: Manual, Motion Detection, Schedule, Smart Detection
Alarm Triggers: All Intelligent Functions
Event Action: Buzzer, Email, Pop up, PTZ, Recording, Show Message, Snapshot
Event: Smart Motion Detection Video Shelter
Intelligent Functions: Area Intrusion Audio exception Detection Blurred Detection Crowd Density Monitorring Face Detection Fast Moving Heat Map Line Crossing Loitering Detection Region Entrance Region Exiting Scene Change Detection Smart People Counting
