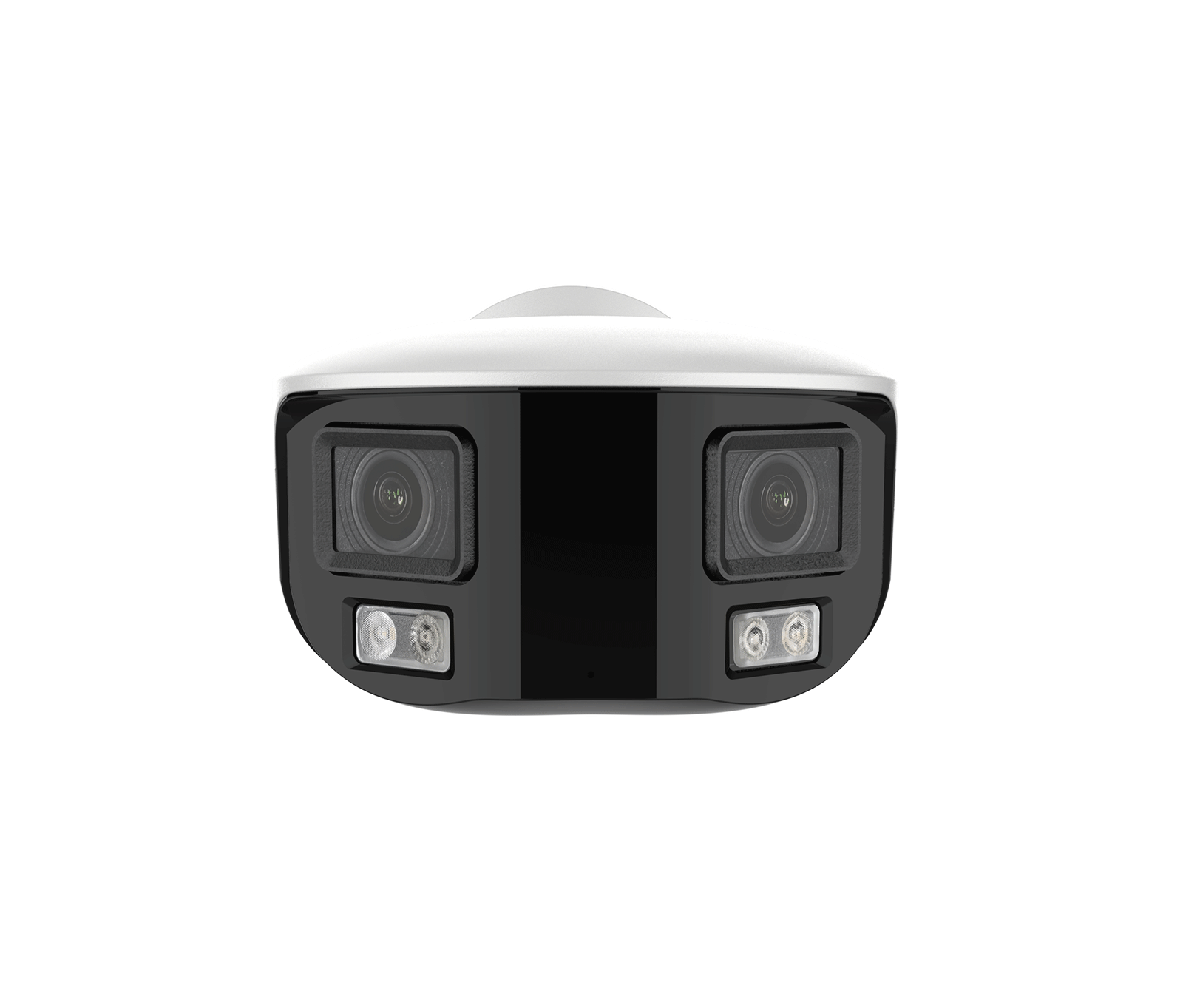

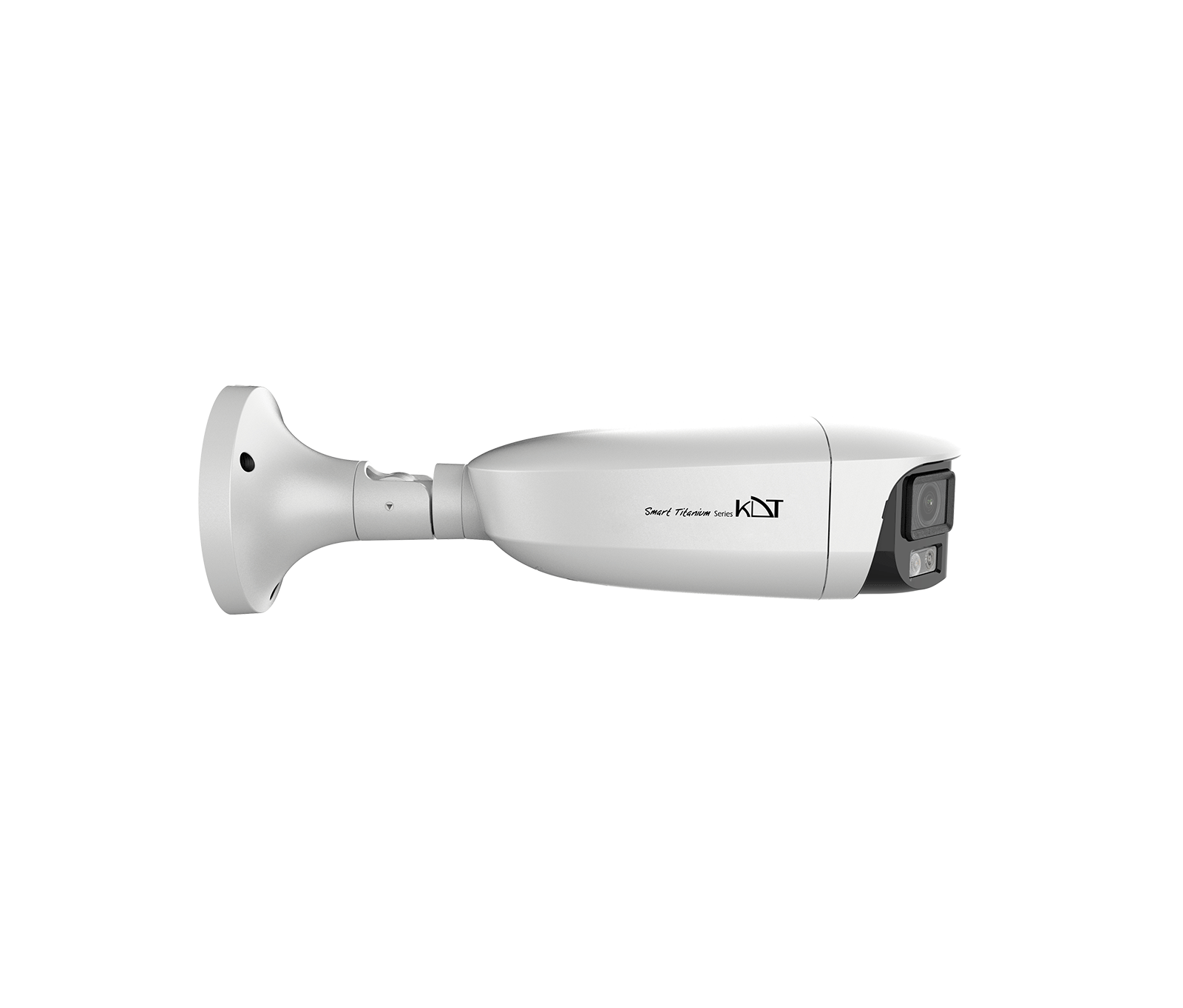

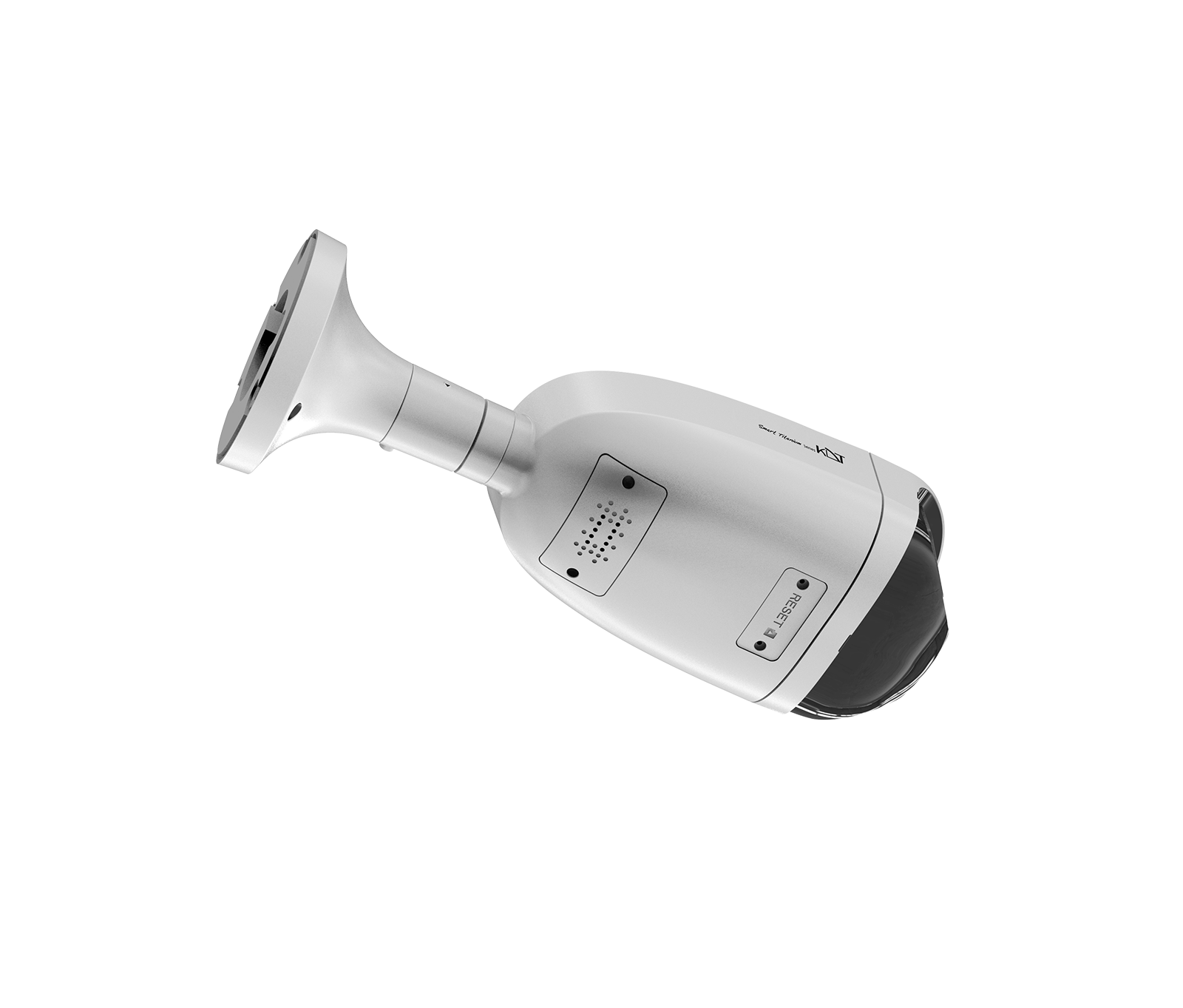

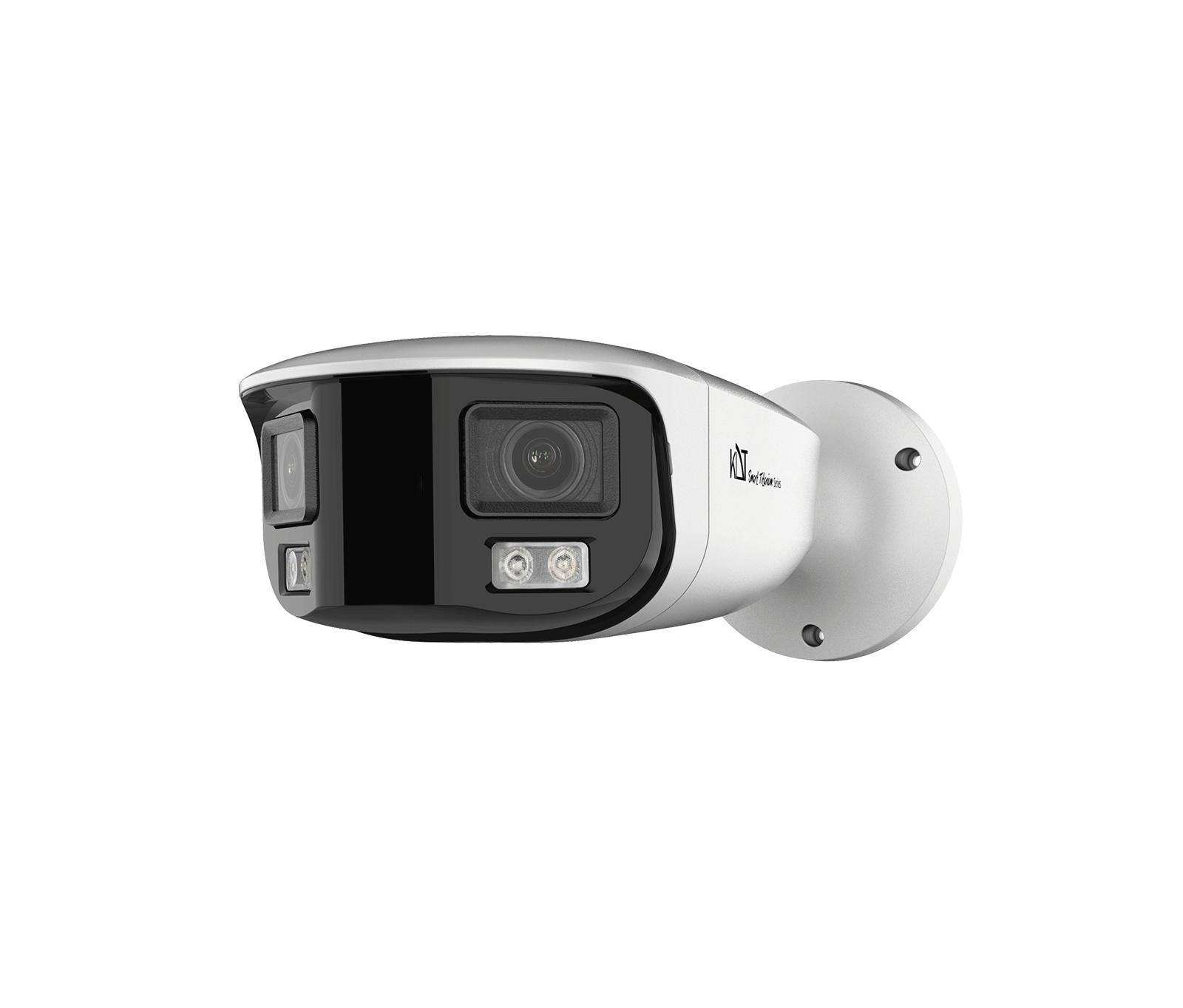

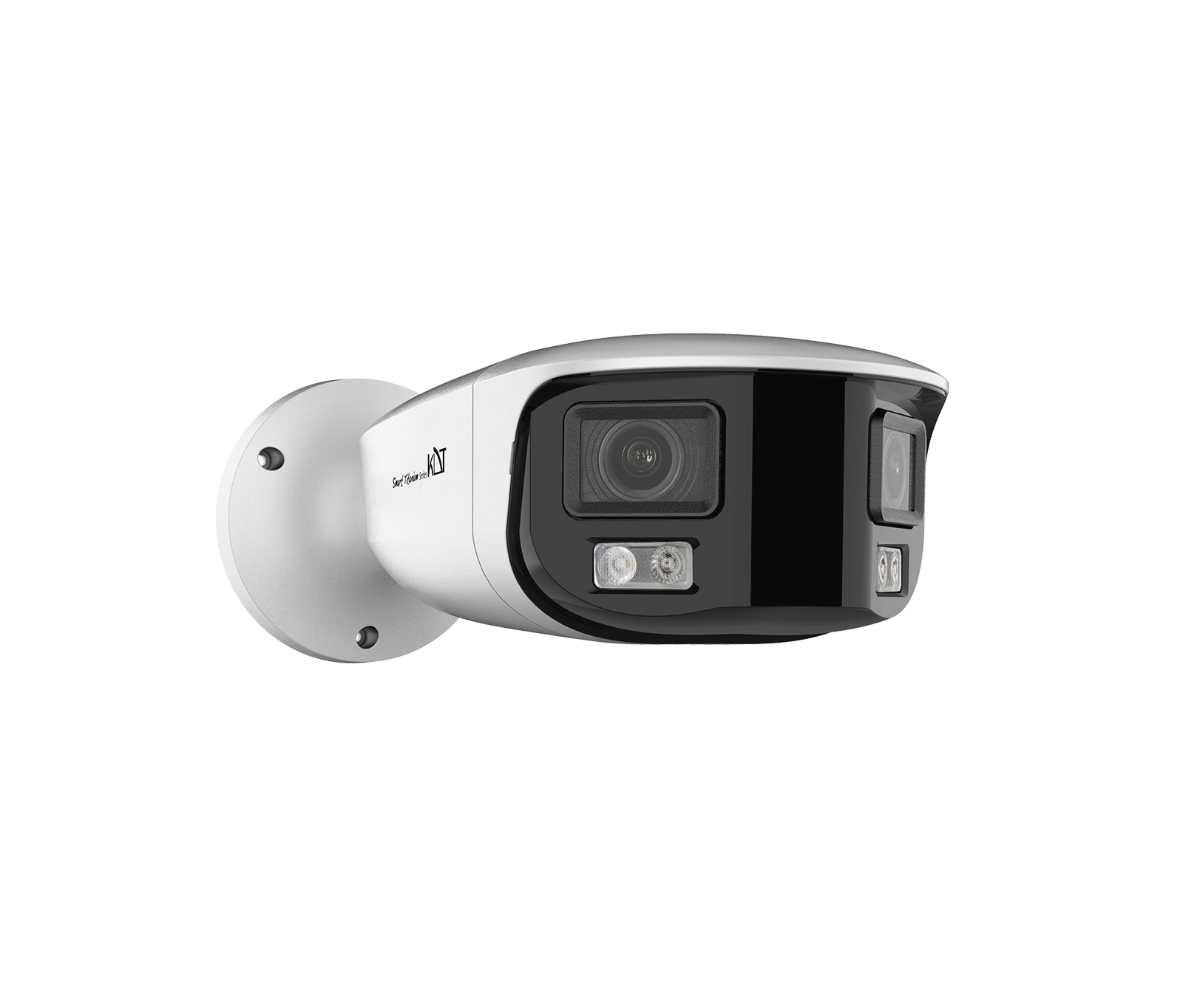

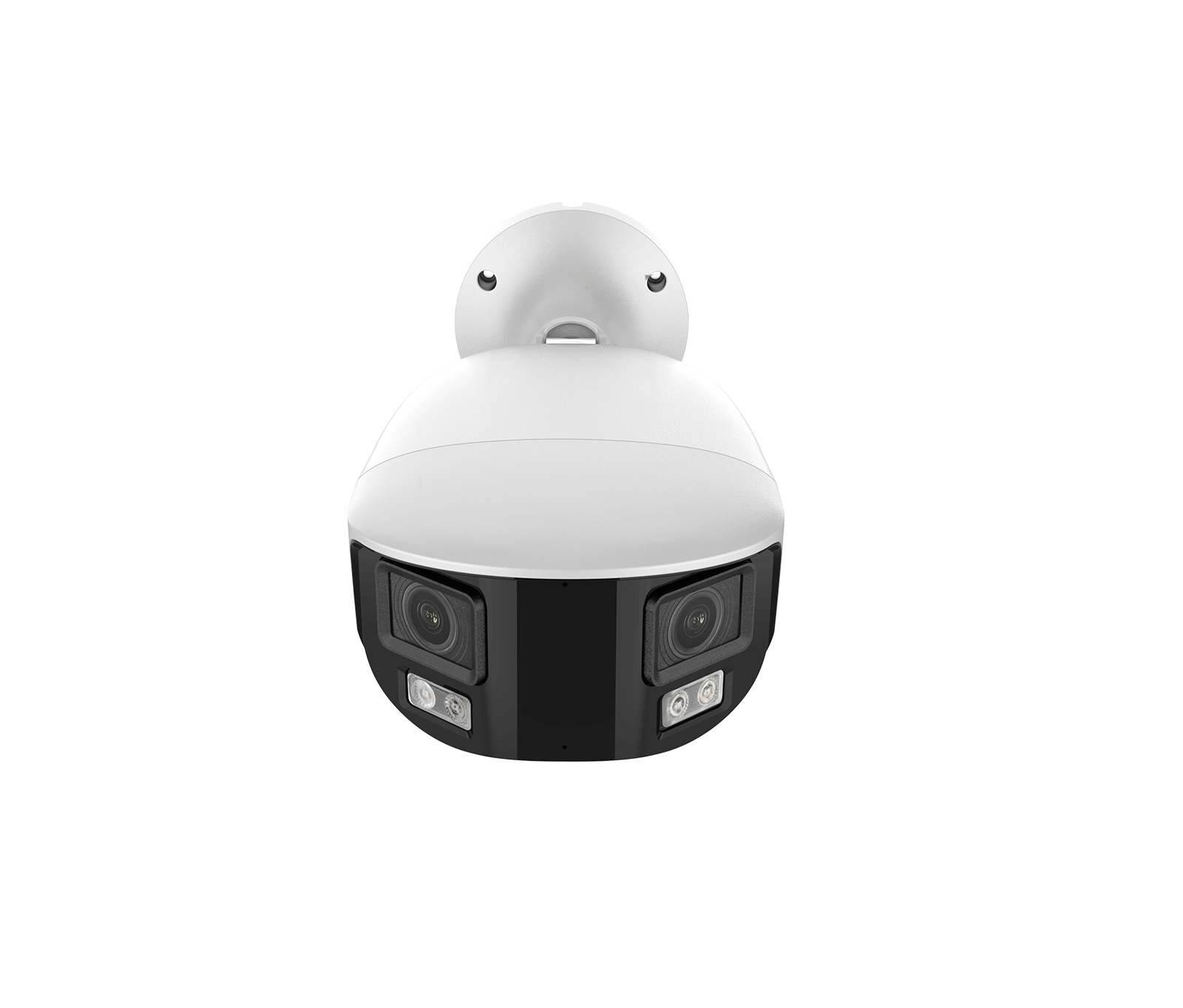

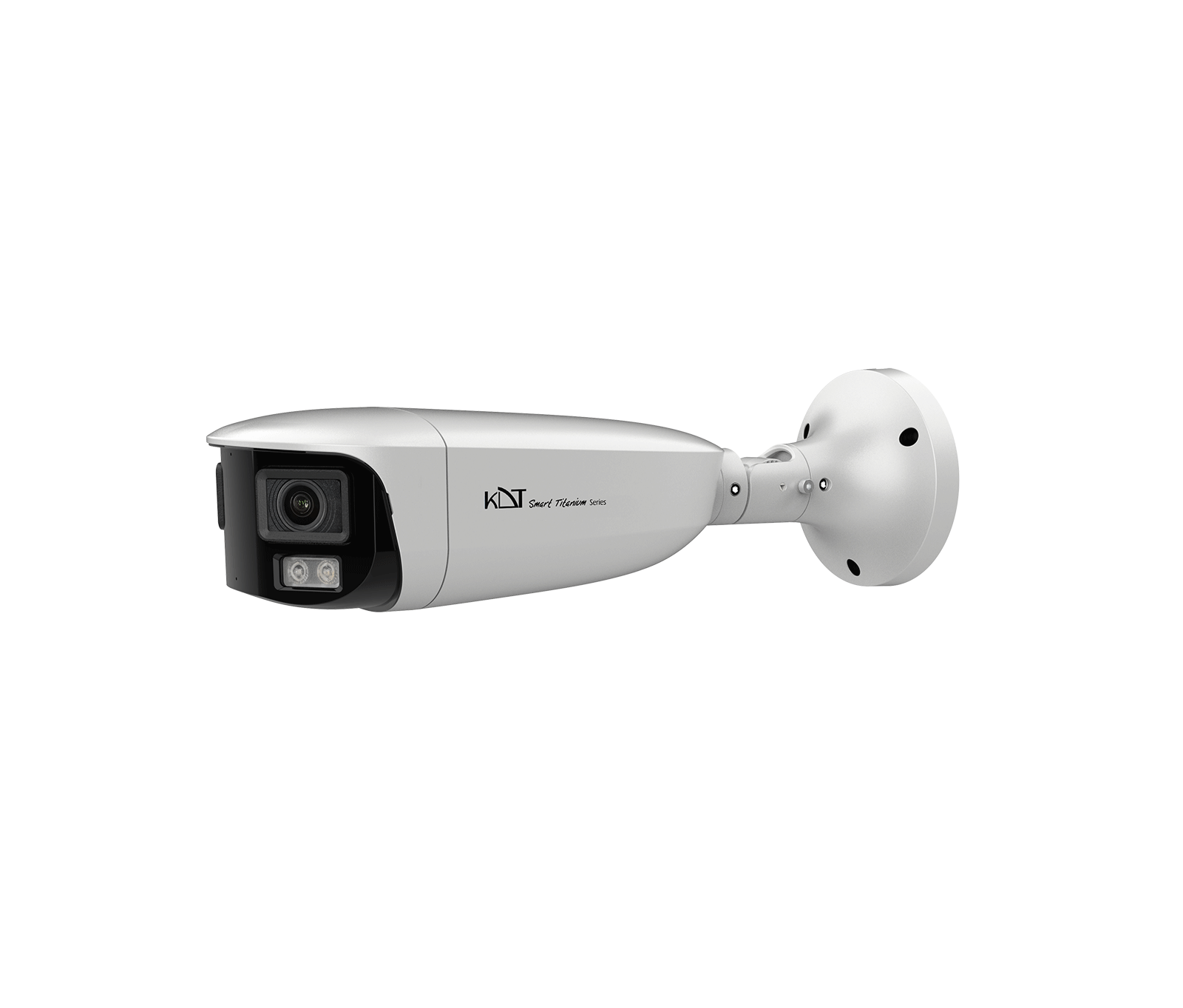

8MP Dual Lens Panoramic Full Color Fixed Bullet Camera KI-B95ST80F-TCSMPR

Overview

The KI-B95ST80F-TCSMPR panoramic IP camera from the Smart Titanium series is a feat of engineering: two Full Color sensors and two separate lenses produce a fully seamless 180-degree view of the surroundings. This smart design can replace several conventional cameras on its own, leaving no blind spots in the scene. Its Full Color technology, backed by warm-light illuminators, delivers clear color images deep into the darkness of night. It is an unrivaled choice for maximum coverage of plazas, large parking lots and wide open areas.

Technical specifications

Datasheet (PDF)

Model: KI-B95ST80F-TCSMPR

Camera

Image Sensor: Dual 4MP Full color(OmniVision-USA)Progressive scan Cmos Sensor (1 /1.8”)
CPU: Dual-Core ARM Cortex
Resolution: 5120*1440 (8MP)
Warm Light Range: Up to 45 m
Day/Night Filter: Color
Min. Illumination: Color: 0.0001 lux(Color) - 0.0 Lux(Warm Light On)
Night Vision: Full Color Technology

Active Deterrence

Red/Blue Light Warning: Flash: 5 s–30 s; frequency: high/medium/low
Sound Warning: Audio 1/2/3; Volume: high/medium/low; duration: 5 s–30 s; 106 dB

Video/Audio

Video Compression: H.264+, H.265+, MJPEG
Audio Compression: ACC, G.711a, G.711u, G.726, PCM
Frame Rate (60 Hz): 20fps@ 8MP
Transmission Stream: Triple Stream
Video Bit Rate: 11 Kbps~6 Mbps

Network

Protocols: Bonjur, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, Multicast, NAT, NTP, P2P, RTCP, RTMP, RTP, RTSP, SMTP, SNMP, TCP/IPv4, TCP/IPv6, UDP, UPnP, UPnP-TM
Compatibility: API CGI ONVIF (Profile S, G, T) SDK
Streaming Method: Multicast, Unicast
Web Viewer: Chrome, Edge, Firefox, IE
Smart Device: Android Phone, Android Tablet, iOS

General

Protection Rating: 6KV Surge Protection, IK10, IP67
Power Supply: DC12V ± 10%
PoE Supply: IEEE802.3af - Max 11 Watt
Web Language: English, Persian
Dimensions: 327*105 mm
Weight: 1.9 Kg
Operating Humidity: 95% or less (non-condensing)
Operating Temperature: -30°C ~ +60°C

Lens

Lens Type: Fixed
Focal Length: 4 mm @F1.0
Angle of View: D-FOV: 287°, H-FOV: 180°, V-FOV: 44°

DORI Distance

DORI: Detect: 114m Observe: 46m Recognize: 22m Identify: 11m

Picture Adjust

Picture Function: 2D/3D DNR, BLC, Defog, HLC, ROI
WDR: 140dB, DWDR
Shutter Speed: Auto Manual (1/3 ~ 1/100,000)
Image Parameter Control: Off On Timing (Adjust 0~255)
D/N Control: Auto, Color off, Color on, Timing
S/N: > 56dB
Image Parameter: Anti Flicker, Brightness, Contrast, Hue, Image Style, Saturation, Sharpness

Functions

Recording: ANR, CMS, FTP, NAS, NVR, SD Card, VMS
Record Type: Manual, Motion Detection, Schedule, Smart Detection
Alarm Triggers: All Intelligent Functions
Event Action: Buzzer, Email, Pop up, PTZ, Recrding, Show Message, Smart Light, Snapshot
Event: Smart Motion Detection Video Shelter
Intelligent Functions: Area Intrusion, Line Crossing, Region Entrance, Region Exiting

Interfaces

Network: 1 RJ45 (10M / 100M) Ethernet Port
External Audio: Audio in, Audio Out
Internal Audio: Internal Mic, Internal Speaker
Alarm: Alarm In, Alarm Out
Power: DC In, PoE LAN
Reset Button: Yes (Optional)
Memory Slot: Yes - Micro SD/SDHC/SDXC Slot (256 Gb Max) (ANR Support)

Guarantee

Product Guarantee: 5 Years Gold Guarantee
MTBF: 100K hrs min. MIL-HDBK-217F (25°)
Certificates: CFR, CN, EN, FCC
