全千兆Hi-PoE二层网管交换机

型号 KP-2408H4SMU

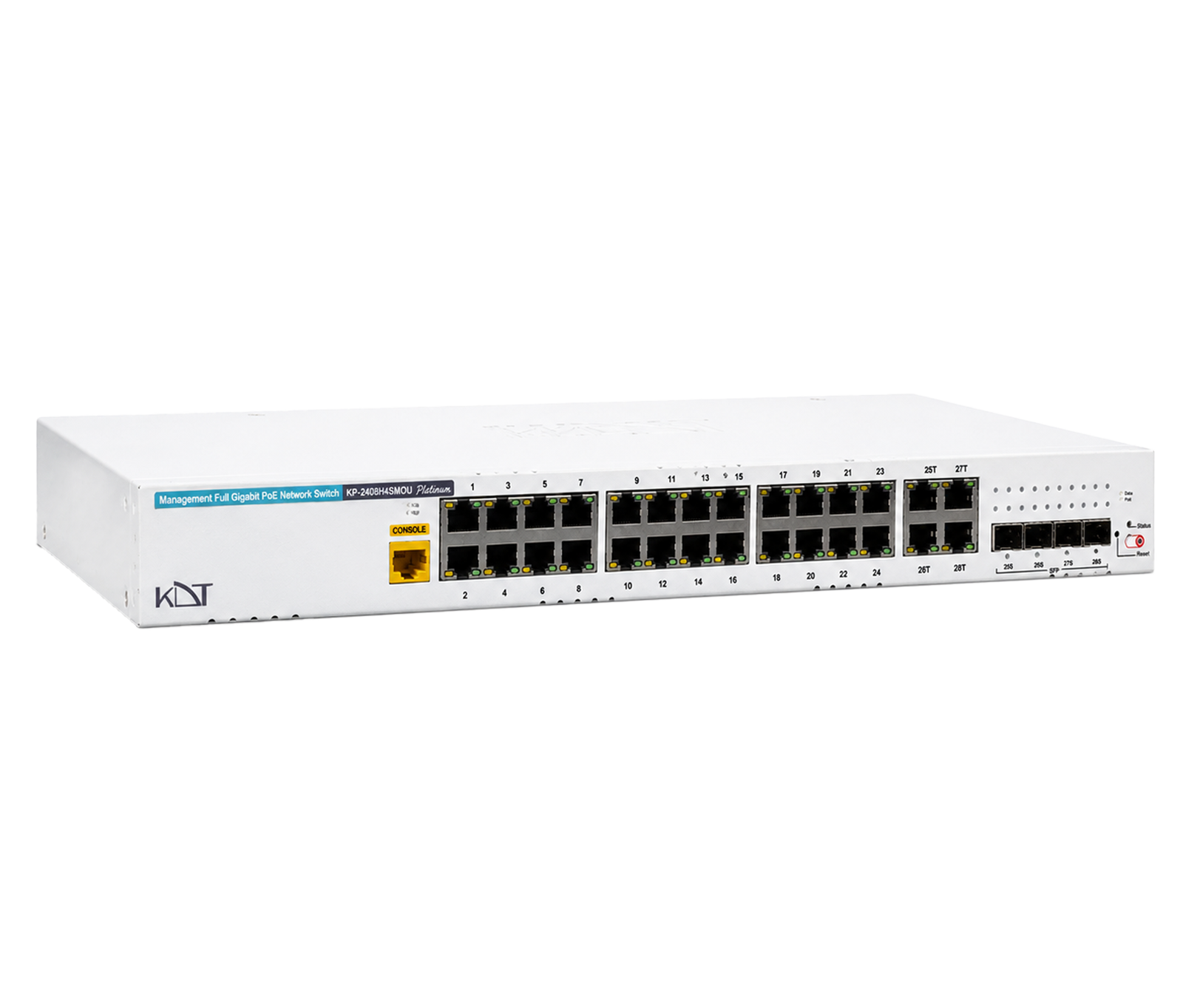

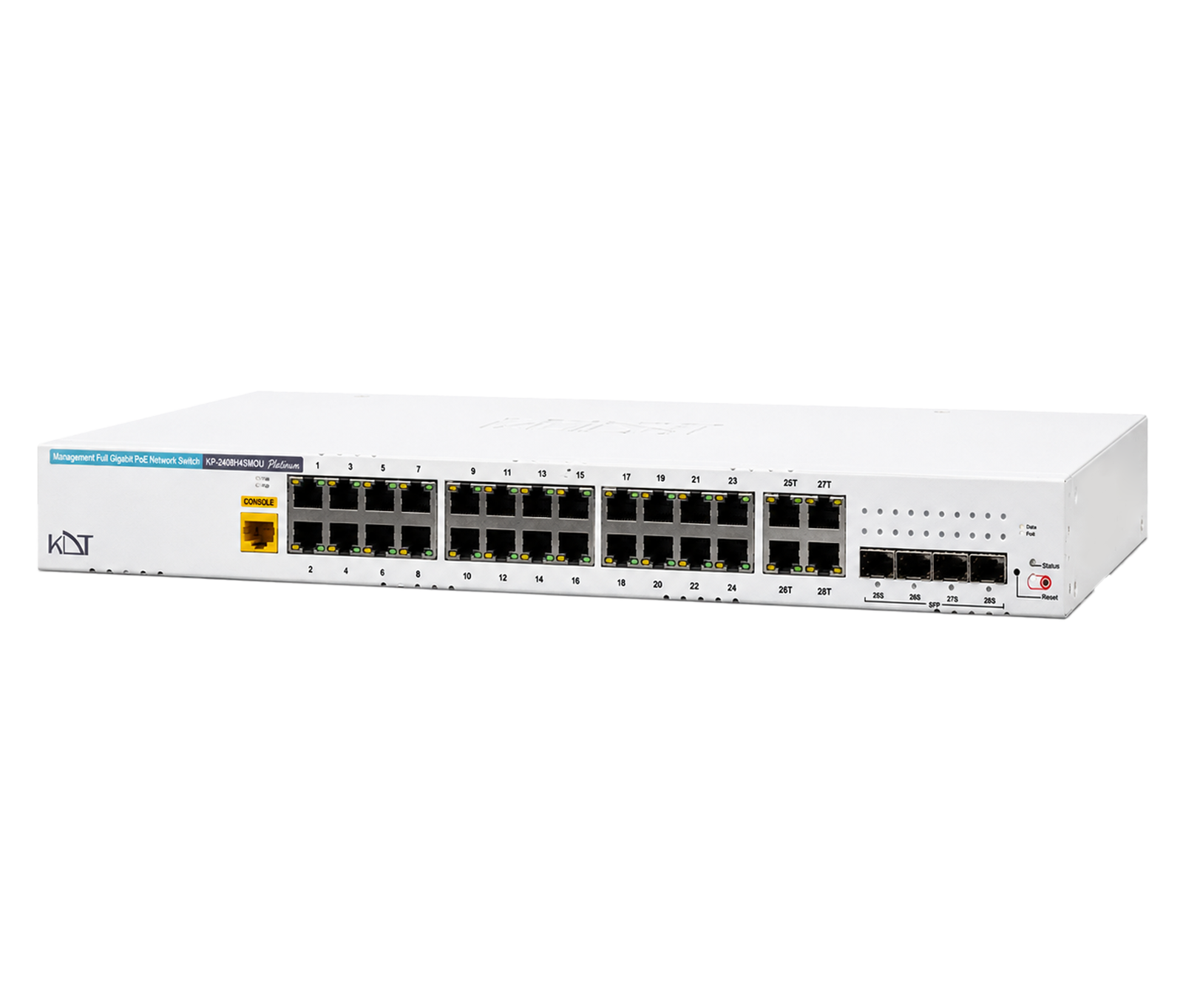

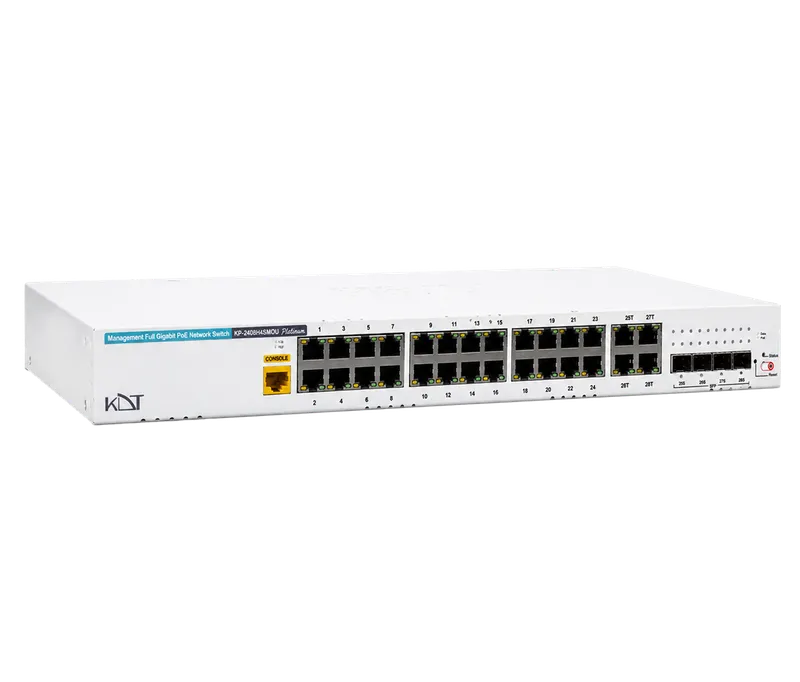

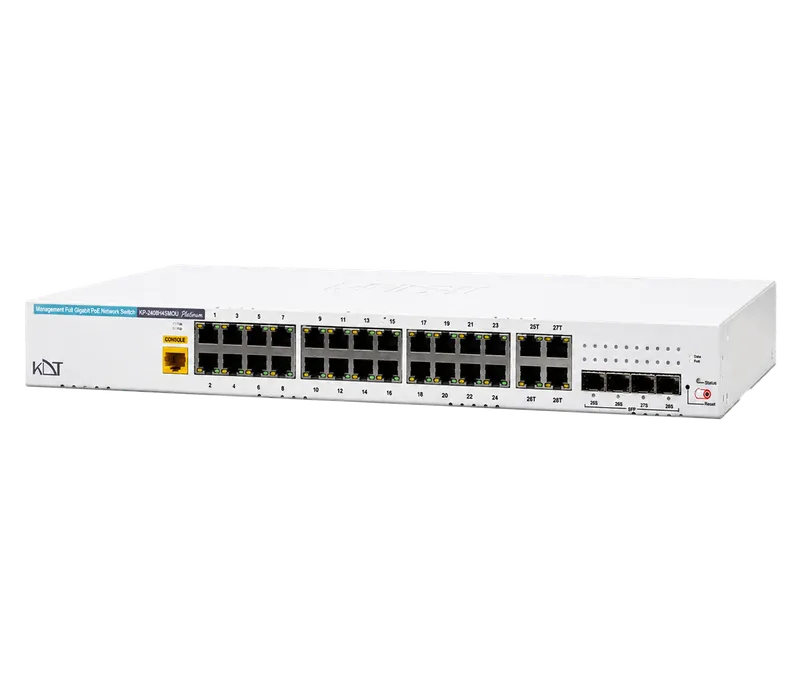

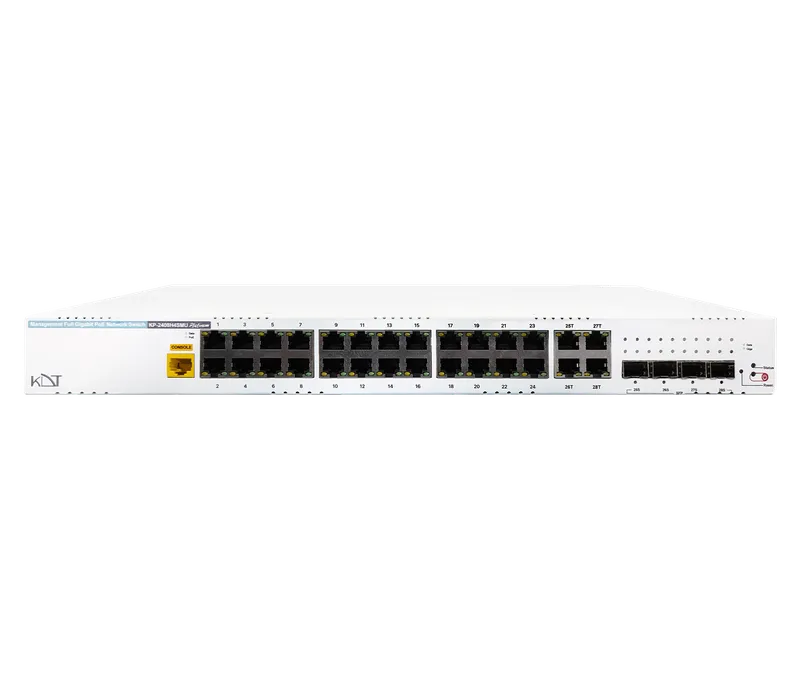

Platinum系列KP-2408H4SMU是一款支持Hi-PoE的全千兆二层网管交换机，专为有高功率供电需求的专业基础设施而设计。设备配备24个千兆PoE电口（前4个端口支持90W供电）、4个千兆RJ45上行电口和4个千兆SFP上行光口，总功率达600W。它采用Combo口设计，背板带宽56Gbps，并支持通过Web界面、Console口、Telnet和SSH进行全面的二层管理，是企业网络的绝佳之选。

POE 90W
Uplink Port SFP
CLI SSH

下载数据手册联系我们

3年白金保修

技术规格

数据手册（PDF）

型号：KP-2408H4SMU

Interfaces

Total Port: 32 Ports
PoE Output (Max): 600 Watt
PoE Port Control: Realtek 8238B/8239B
Fast RJ45 PoE Port: N/A
Gigabit RJ45 PoE Port: 24 Port Port 1~4 BT (Up to 90W) - Port 5~24 AT (Up to 30W)
Fast RJ45 Uplink Port: N/A
Gigabit RJ45 Uplink Port: 4
Gigabit SFP Uplink Port: 4
Combo Uplink Port: Yes(Port25~Port32)

Guarantee

MTBF: 100,000 hrs min. MIL-HDBK-217F (25°)
Product Guarantee: 3 Years Platinum Guarantee

Feature

Security: Access IP List IEE 802.1 X MAB (MAC Authentication Bypass) / Radius Server Authentication Port Security SSH & HTTPS Login

Hardware

Processor Type: Realtek
LED Panel: Data Activity, PoE Activity, Power Activity, Redundant Activity
Main Board: Double Layer
Case: Metal Case
Mounting: Rackmount

Power Supply

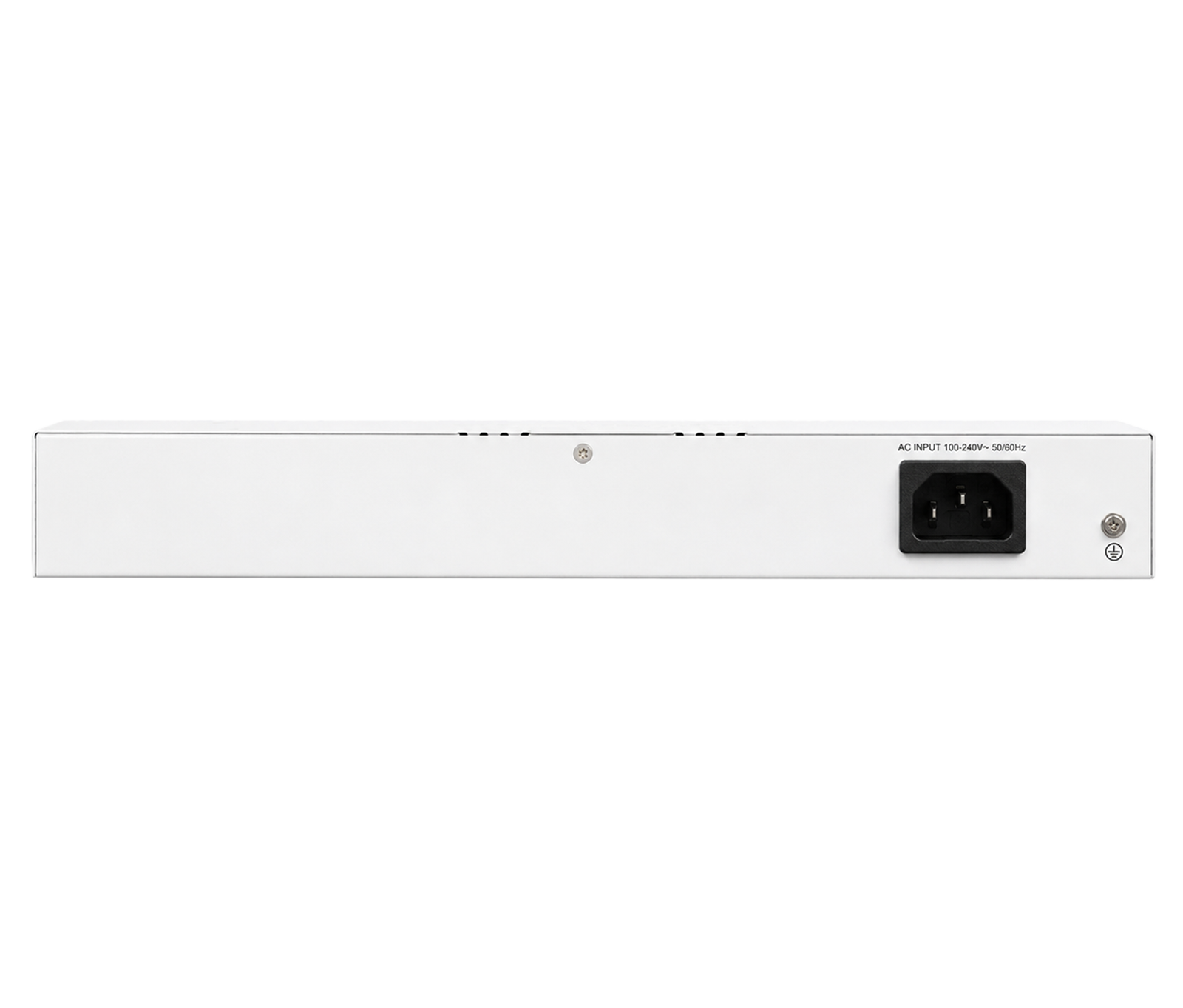

Power: 200~240V AC, 50~60Hz
Redundant: N/A
LED Power: Yes
Power Cable: Available

Network Performance

Standard: IEEE802.3ab IEEE802.3af IEEE802.3at (Up to 30Watt) IEEE802.3az IEEE802.3bt IEEE802.3u IEEE802.3x
Protocols: CSMA/CD
Router: N/A
Speed: Ethernet 10Mbps (half duplex), 20Mbps (full duplex); 10BASE-T: 14,880bps/port Fast Ethernet 100Mbps (half duplex), 200Mbps (full duplex); 100BASE-TX:14,8800bps/port Gigabit Ethernet 1000Mbps (half duplex), 2000Mbps (full duplex); 1000BASE-TX: 1488000bps/port
Cabling: 1000 Base-TX: Cat 6 UTP or above (100m) 100Base-TX:Cat 6 UTP(120m) PoE=250M 10Base-TX: Cat 5 or above (250m) PoE=250M
Bandwidth: 56Gb Internal Bandwidth
Auto MDI: Yes All Ports
Console: Yes - Web & RS232 Layer2 Management (Telnet / SSH/ CLI)
Transfer Pattern: Store & Forward
MAC Table: 64Kb

PD`S

IP Camera: Yes
IP Phone: Yes
(+)2/1,(: Yes

General

Protection Rating: IP51
Web Language: English
Dimensions: 440*295*45 mm
Weight: 2.65 kg
Storage Temperature: -20°C ~ +60°C / 10% ~ 90% RH
Operating Temperature: -15°C ~ +50°C / 10% ~ 90% RH
Radiation Electromagnetic: EN55016
