NS-3U 8P 7SFTPS

دانلود دیتاشیت

NETWORK SOCKET

CUPRIUM SERIES

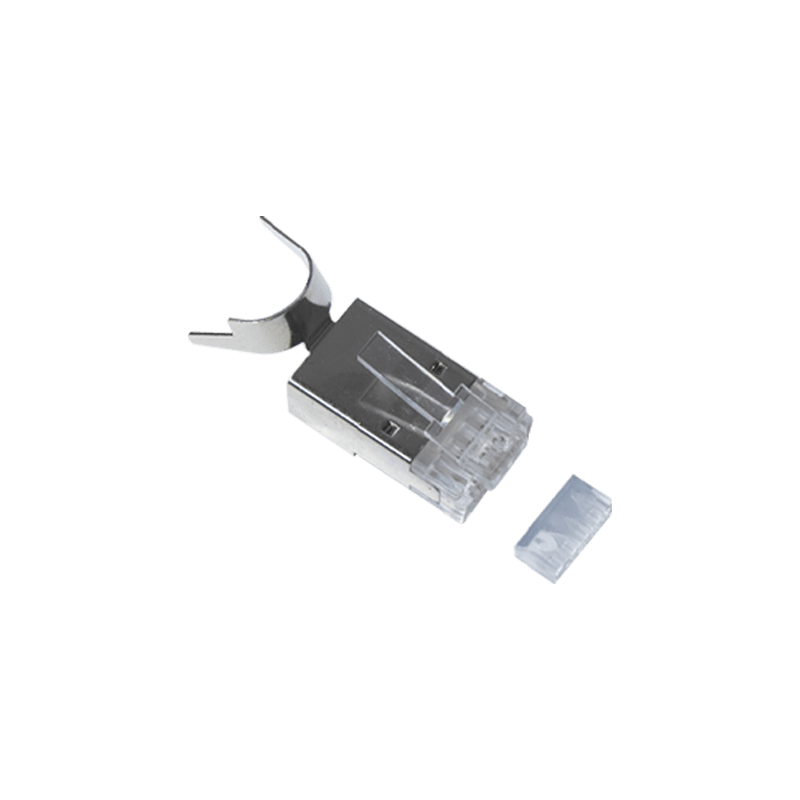

سوکت شبکه کی دی تی مدل NS-3U 8P 7SFTPS

  NS-3U 8P 7SFTPS
SFTP Socket
Applicable Standards T568A / T568B
  TypeSFTP – Cat7
  Contact Resistance20m ohms
Insulation Resistance 100M ohms
  Temperature Rating (Min / Max)
-40/80 °C
  Weight11.2g / pcs
  Wire Awg Min / Max (Solid / Stranded)
24AWG to 23AWG
  Conductor Diameter (Min/Max)
0.40/0.55mm
  Cord Diameter (Max)
2.1mm
  Finished03MU Micro-Inch Gold Plating
  Material
Metal
  Load BarPVC(With Guide)
  Strain Relief
Metal
