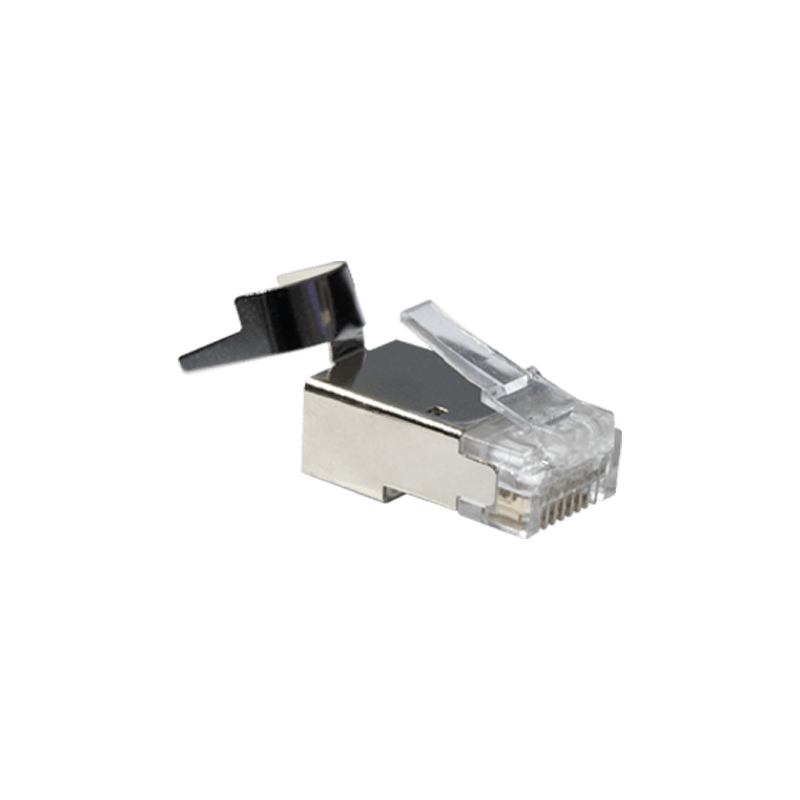

سوکت شبکه کی دی تی مدل NS-3U 8P 6SFTPS
| NS-3U 8P 6SFTPS | |
| SFTP Socket | |
| Applicable Standards | T568A / T568B |
| Type | SFTP – Cat6 |
| Contact Resistance | 20m ohms |
| Insulation Resistance | 100M ohms |
| Temperature Rating (Min / Max) | -40/80 °C |
| Weight | 10.8g / pcs |
| Wire Awg Min / Max (Solid / Stranded) | 24AWG to 23AWG |
| Conductor Diameter (Min/Max) | 0.40/0.55mm |
| Cord Diameter (Max) | 1.7mm |
| Finished | 03MU Micro-Inch Gold Plating |
| Material | Metal |
| Load Bar | PVC(With Guide) |
| Strain Relief | Metal |
