KI-S150ST20Z25-i200TS
200~210m Smart IR 6pcs Aray
25X Optical Lens (4.7~117mm)
PRODUCTS
Innovative Technology | Reliable Quality | End-to-End Service
دوربین مداربسته اسپید دام کی دی تی مدل KI-S150ST20Z25-i200TS
قابلیت های هوشمند:
عبور از خط
فنــس مجـــازی
ورود به منطقـه
خــروج از منطقـه
گـم شدن اشیـــاء
اضافه شدن اشیاء
تشخیص حرکت سریـع افراد

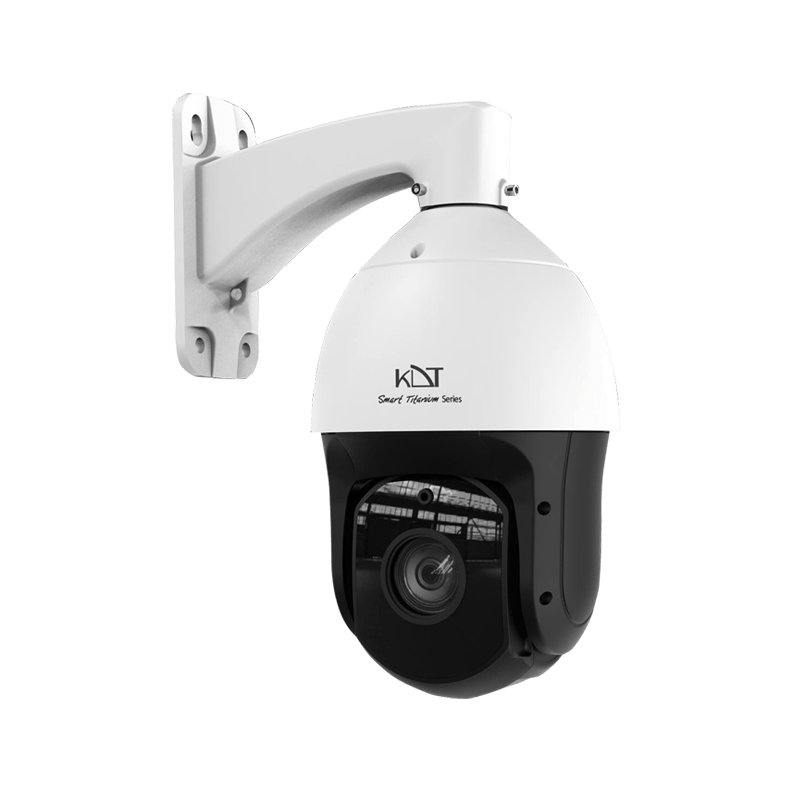

KI-S150ST20Z25-i200TS
2MP Speedome Network Camera
> 2MP (Sony-Japan) Progressive scan Cmos Sensor (1/2.8”)
> 25X Optical Lens (4.7~117mm)
> H.264+(Ultra H.264), H.265+ (Ultra H.265)
> 30fps@1080P(1920*1080), 30fps@960P,30fps@720P
> Dual-Core ARM Cortex A7@900MHz
> Support PoE
> Triple Stream (Code Rate: 11Kbps-8mbps)
> IP67, 6KV Surge Protection
سایر برتری ها :
> پشتیبانی از میکرو SD با ظرفیت 128GB
> بدنــه ضد آب و گـرد و غبـــار با درجه IP67
> ســـرور انتقـــال تصویـــر در ایــران
> پشتیبـــانی از H.264+ / H.265+
> پشتیبـــانـــی از ONVIF ورژن 2.6
> قـــابلیت دیـد در شب هـوشمنــد
> قابلیت WDR, BLC, HLC, Defog و ROI تا 8 ناحیه
> پشتیبانی از ضبط اضطراری ANR
شرایط گارانتی :
> پنج سال گارانتی طلایی بدون قید و شرط کی دی تی
> شش سال ضمانت پایداری کیفیت تصویر
شامل: آبخوردگی ، شکستگی ، ضربه دیدگی ، خسارت ناشی از صاعقه ، زنگ زدگی ، نوسانات برق ، سایر اتفاقات و صدمات
| Camera | |
| Image Sensor | 2MP (Sony-Japan) Progressive scan Cmos Sensor (1/2.8”) |
| Case size | 5″ |
| CPU | Dual-Core ARM Cortex-A7@900MHz |
| Lens | 25X Optical Lens (4.7~117mm) |
| Resolution | 1920*1080 (2MP) |
| Available IR Range | 200~210 m Smart IR 6pcs Aray |
| D/N Filter | IR Cut Filter Switch(ICR) |
| Min Illumination | Color: 0.001 lux (AGC on) – B/W: 0.0 Lux(IR on) |
| PTZ | Pan Range: 360° Endless – Pan Speed: 0.1°~120°/S Tilt Range: -10°~90° Auto Flip – Tilt Speed: 0.1°~60°/S Number of Preset: 255 – Patrol:32 – Pattern: 8 – Park Action: Yes |
| Night Vision | Color /IR |
| Picture Adjust | |
| Picture Function | 120db WDR/DWDR, 2D/3D DNR, BLC, HLC, ROI, Defog |
| Digital Zoom | 16X |
| Shutter Speed | Manual (1/3 ~ 1/100.000), Auto |
| Image Parameter Control | Off, On, Timing (Adjust 0 ~ 255) |
| D/N Control | Timing, Auto , Color on, Color off |
| S/N | > 56dB |
| Image Parameter | Saturation, Brightness, Contrast, Sharpness, Hue |
| Video/Audio | |
| Video Compression | H.264+(UltraH.264), H.265+(UltraH.265) |
| Audio Compression | G.711A, G.711U |
| Frame Rate(60Hz) | 30fps@ 1080P(1920*1080), 30fps@ 960P, 30fps@ 720P |
| Transmission Stream | Triple Stream (Video Bit Rate:11 Kbps~8mbps) |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, P2P, Bonjour, SNMP |
| Compatibility | Onvif Ver2.6, Profile S, G, T, CGI, SDK, API |
| Streaming Method | Unicast, Multicast |
| Web Viewer | IE, Edge, Firefox, Chrome |
| Recording Software | Ultimate KDT CMS/VMS 128CH per Monitor |
| Function | |
| Recording | FTP, NVR, CMS, VMS, NAS, SD Card, ANR |
| Record Type | Manual, Motion Detection, Smart Detection, Schedule |
| Alarm Triggers | All Intelligent Function |
| Event Action | Email, Snapshot, Recording, Alarm Out |
| Event | Motion Detection, Video Shelter |
| Intelligent Function | 7 Smart Function Line Crossing, Area Intrusion, Unattended Object, Object Missing, Region Entrance, Region Exiting, Fast Moving |
| Interface | |
| Network | 1 RJ45 (10/ 100mbps) Ethernet Port |
| Audio | Audio Out, Audio In |
| Alarm | Alarm Out, Alarm In |
| CVBS | N/A |
| Power | PoE LAN, DC In |
| Reset Button | Yes (Optional) |
| Memory Slot | Yes – Micro SD/SDHC/SDXC Slot (128 Gb Max) |
| General | |
| IP Rating | IP67, 6KV Surge Protection |
| Cover Lens | Nano Glass |
| Power Supply | DC12V ± 25% (3A Max) |
| POE Supply | IEEE802.3af – Max 25 Watt |
| Web Language | English, Persian |
| Dimension | 276*375 mm |
| Weight | 4.3 Kg |
| Operation Humidity | Max up to 95%RH(non-condensing) |
| Operation Temp | -40°C ~ +70°C |
| Guarantee | |
| Product Guarantee | 5 Years Gold Guarantee |
| MTBF | 100K hrs min. MIL-HDBK-217F (25°) |
توضیحات
Description / KI-S150ST20Z25-i200TS
