Camera
Image Sensor	2MP (Sony-Japan) Progressive scan Cmos Sensor (1/2.8”) Ultral-Low-illumination
CPU	Dual-Core ARM 2 x A53@1400 MHz
Lens	12 mm Fixed Lens @F1.2
Resolution	1920*1080 (2MP)
Available IR Range	30~40 m White Light Technology (6 pcs White Light)
D/N Filter	IR Cut Filter Switch (ICR)
Min Illumination	Color: 0.003 Lux(AGC on) – B/W: 0.0 Lux(White Light on)
Angle of View	H-FOV: 32°, V-FOV: 27° , D-FOV: 49°
Night Vision	Full Color
Picture Adjust
Picture Function	120dB WDR/DWDR, 2D/3D DNR, BLC, HLC
Shutter Speed	Manual (1/3 ~ 1/8.000), Auto (Image Algorithm)
Image Parameter Control	Off, On, Timing (Adjust 0 ~ 255)
D/N Control	Timing, Auto , Color on, Color off
Image Parameter	Saturation, Brightness, Contrast, Sharpness, Hue
Video/Audio
Video Compression	H.264+(Ultra H.264), H.265+ (Ultra H.265)
Audio Compression	N/A
Frame Rate	30fps@(1920×1080)
Transmission Stream	Dual Stream (Code Rate: 128kbps–10mb)
Network
Protocols	RTSP/PPPOE/DHCP/DDNS/NTP/UPnP/SMTP
Compatibility	Onvif Ver2.4, Profile S
Streaming Method	Unicast, Multicast
Web Viewer	Multi Browser
Function
Recording	FTP, NVR, CMS, VMS
Record Type	Manual, Motion Detection, Smart Detection, Schedule
Alarm Triggers	N/A
Intelligent Function	N/A
Interface
Network	RJ45(10/100mbps)
Audio	N/A
Alarm	N/A
CVBS	N/A
Power	PoE LAN, DC In
Reset Button	N/A
Memory Slot	N/A
General
IP Rating	IP67, IK10, 6KV Surge Protection
Power Supply	DC12V ± 10%
POE Supply	IEEE802.3af – Max 11 Watt
Web Language	English, Persian
Dimension	275*102 mm
Weight	1.2 Kg
Operation Humidity	Max Up to 95%RH(Non Condensing)
Operation Temp	-30°C ~ +60°C
Guarantee
Product Guarantee	2 Years Silver Guarantee
MTBF	100K hrs min. MIL-HDBK-217F (25°)
Certificates	EN, CN, FCC, CFR

توضیحات

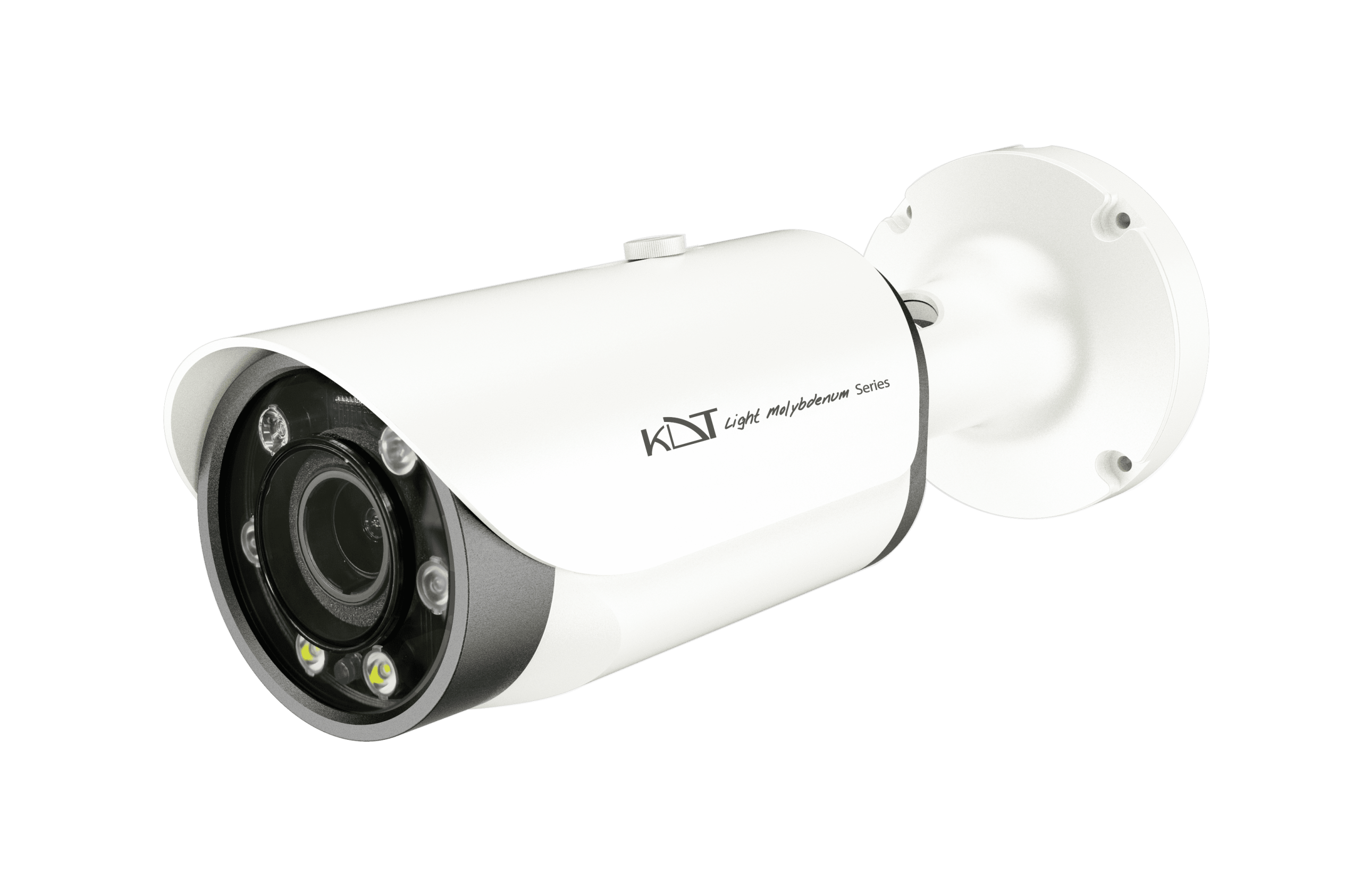

Description /KI-L45LM20F-L
