سوئیچ شبکه کور کی دی تی مدل KC-3204H5SM3
| Interfaces |
|
| Total Port |
36 Ports |
| Max POE Output |
N/A |
| POE Port Control |
N/A |
| Fast RJ45 Port |
N/A |
| Gigabit RJ45 Port |
8 |
| Fast RJ45 Uplink Port |
N/A |
| Gigabit RJ45 Uplink Port | N/A |
| Gigabit SFP Uplink Port | 24 |
| 10 Gigabit SFP Uplink Port | 4 |
| Combo Uplink Port |
Yes (Port 1~16) |
| Network Performance |
|
| Standard |
IEEE802.3x, IEEE802.3u, IEEE802.3az, IEEE802.3ab |
| Protocols | CSMA/CD |
| Router | Yes |
| Speed |
Ethernet 10Mbps (half duplex), 20Mbps (full duplex); 10BASE-T: 14,880bps/port Fast Ethernet 100Mbps (half duplex), 200Mbps (full duplex); 100BASE-TX:14,8800bps/port Gigabit Ethernet 1000Mbps (half duplex), 2000Mbps (full duplex); 1000BASE-TX: 1488000bps/port |
| Cabling | 10Base-TX:Cat 5 or above (100m) |
| Bandwidth | 128Gb Internal Bandwith |
| MAC Table |
64Kb |
| Auto MDI-MDIX |
Yes All Port |
| Console | Yes – Web & RS232 Layer3 Managment (Telnet Support) |
| Transfer Pattern |
Store & Forward |
| Hardware |
|
| Processore Type |
Realtek |
| LED Panel |
Data Activity |
| Main Board |
Double Layer |
| Case | Metal Case |
| Mounting | Rackmount |
| PD`S | |
| IP Camera |
N/A |
| IP Phone |
N/A |
| (+)5/4,(-)8/7 | N/A |
| (+)2/1,(-)6/3 | N/A |
| General | |
| IP Rating |
IP51 |
| Web Language |
English |
| Dimension | 440*273*45 mm |
| Weight | 2.9 kg |
| Storage Temp |
-20°C~+60°C / 10%~90% RH |
| Operation Temp |
-15°C~+60°C / 10%~90% RH |
| Radiation Electromagnetic | EN55016 |
| Status | |

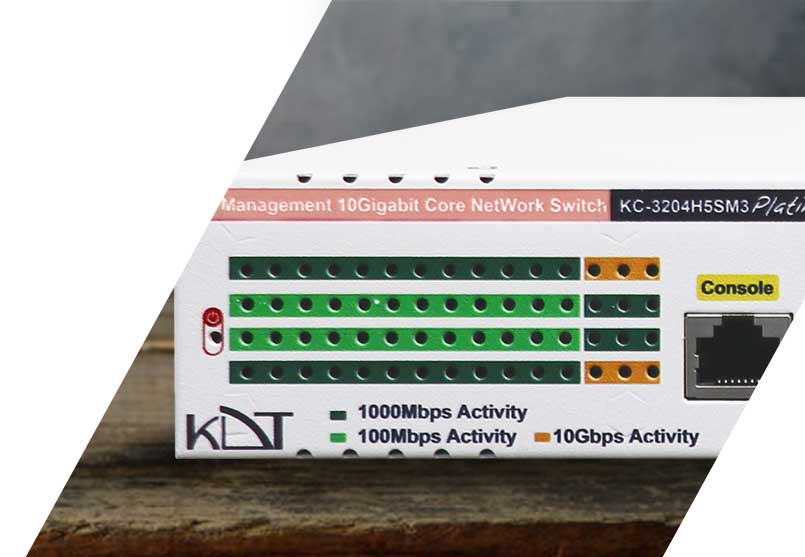

| LED | Ethernet Interfaces 10,000 LNK/ACT (Orange), 10/100/1000 LNK/ACT (Green) |
| Power Supply |
|
| Power | 200~240V AC, 50~60Hz |
| Redundant |
N/A |
| LED Power |
Yes |
| Power Cable |
Available |
| Guarantee | |
| Product Guarantee |
3 Year Platinum Guarantee |
| MTBF | 100K hrs min. MIL-HDBK-217F (25°) |
توضیحات
Description / KC-3204H5SM3
