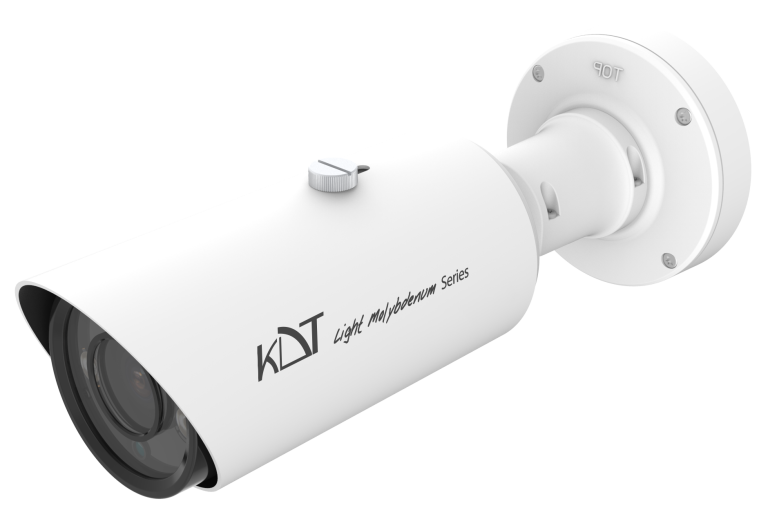

KI-L55LM20A-i100TS
100~110 m Smart IR SMD Technology 7~22mm Motorized 3X Optical Zoom
PRODUCTS
Innovative Technology | Reliable Quality | End-to-End Service
100~110 m Smart IR SMD Technology 7~22mm Motorized 3X Optical Zoom
Innovative Technology | Reliable Quality | End-to-End Service
| Camera | |
| Image Sensor | 2MP (Sony-Japan) Progressive scan Cmos Sensor (1/2.8″) |
| CPU | Dual-Core ARM 2 x A53@1400 MHz |
| Lens | 7~22mm Motorized 3X Optical Zoom (F-Stop F1.6-F2.8) |
| Resolution | 1920*1080 (2MP) |
| Available IR Range | 100*110 m Smart IR SMD (Osram-Germany) Technology |
| D/N Filter | IR Cut Filter Switch (ICR) |
| Min illumination | Color: 0.002 Lux(AGC on) – B/W: 0.0 Lux(IR on) |
| Angle of View | H-FOV: 40°~16°, V-FOV: 23°~9°, D-FOV: 46°~19° |
| Night Vision | Color / IR |
| Picture Adjust | |
| Picture Function | 140 dB WDR/DWDR, Defog, AWB, EIS, 2D/3D DNR, BLC, HLC, ROI, Anti-flicker, Corridor Mode, Deblur |
| Shutter Speed | Manual (1/3 ~ 1/100.000), Auto |
| Image Parameter Control | Off, On, Timing (Adjust 0 ~ 255) |
| D/N Control | Timing, Auto, Color on, Color off |
| Image Parameter | Saturation, Brightness, Contrast, Sharpness, Hue |
| Video / Audio | |
| Video Compression | H.264+(Ultra H.264), H.265+ (Ultra H.265) MJPEG |
| Audio Compression | G.711A, G.711U |
| Frame Rate(60Hz) | 90fps@1920×1080, 1280×960, 1280×720, 704×576 |
| Transmission Stream | Dual Stream (Code Rate: 256kbps-16mbps) |
| Network | |
| Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, QoS |
| Compatibility | Onvif Ver2.6, Profile S/G/Q/T, API, SDK, CGI |
| Streaming Method | Unicast, Multicast |
| Web Viewer | IE, Edge, Firefox, Chrome |
| Smart Device | iOS, Android Phone & Tablet |
| Function | |
| Recording | FTP, NVR, CMS, VMS, NAS, SD Card |
| Record Type | Manual, Motion Detection, Schedule |
| Alarm Triggers | N/A |
| Event Action | Email, PTZ, Snapshot, Recording, Alarm Out, Buzzer, Pop up, Show Message |
| Event | Smart Motion Detection, Video Shelter |
| Intelligent Function | N/A |
| Interface | |
| Network | 1 RJ45 (10M / 100M) Ethernet Port |
| External Audio | Audio Out, Audio In |
| Internal Audio | Internal Mic, Internal Speaker |
| Alarm | Alarm In, Alarm Out |
| CVBS | Yes |
| Power | PoE LAN, DC In |
| Reset Button | Yes (Optional) |
| Memory Slot | Yes – Micro SD/SDHC/SDXC Slot (256 Gb Max) |
| General | |
| Protection Rating | IP67, IK10, 6KV Surge Protection |
| Back Box | Yes |
| Power Supply | DC12V ± 25% |
| POE Supply | IEEE802.3af – Max 13 Watt |
| Web Language | English, Persian |
| Dimension | 285*126 mm |
| Weight | 2 Kg |
| Operation Humidity | Max Up to 95%RH (Non Condensing) |
| Operation Temp | -40°C ~ +70°C |
| Guarantee | |
| Product Guarantee | 2 Years Silver Guarantee |
| MTBF | 100K hrs min. MIL-HDBK-217F (25°) |
| Certificates | EN, CN, FCC, CFR |
| Image Sensor | 2MP (Sony-Japan) Progressive scan Cmos Sensor (1/2.8″) |
|---|---|
| Memory Slot | Yes – Micro SD/SDHC/SDXC Slot (256 Gb Max) |
| Event | Smart Motion Detection, Video Shelter |
| Intelligent Function | N/A |
| Network | 1 RJ45 (10M / 100M) Ethernet Port |
| External Audio | Audio Out, Audio In |
| Internal Audio | Internal Mic, Internal Speaker |
| Alarm | Alarm In, Alarm Out |
| CVBS | Yes |
| Power | PoE LAN, DC In |
| Reset Button | Yes (Optional) |
| Protection Rating | IP67, IK10, 6KV Surge Protection |
| Alarm Triggers | N/A |
| Back Box | Yes |
| Power Supply | DC12V ± 25% |
| POE Supply | IEEE802.3af – Max 13 Watt |
| Web Language | English, Persian |
| Dimension | 285*126 mm |
| Weight | 2 Kg |
| Operation Humidity | Max Up to 95%RH (Non Condensing) |
| Operation Temp | -40°C ~ +70°C |
| Product Guarantee | 2 Years Silver Guarantee |
| MTBF | 100K hrs min. MIL-HDBK-217F (25°) |
| Event Action | Email, PTZ, Snapshot, Recording, Alarm Out, Buzzer, Pop up, Show Message |
| Record Type | Manual, Motion Detection, Schedule |
| CPU | Dual-Core ARM 2 x A53@1400 MHz |
| Image Parameter Control | Off, On, Timing (Adjust 0 ~ 255) |
| Lens | 7~22mm Motorized 3X Optical Zoom (F-Stop F1.6-F2.8) |
| Resolution | 1920*1080 (2MP) |
| Available IR Range | 100*110 m Smart IR SMD (Osram-Germany) Technology |
| D/N Filter | IR Cut Filter Switch (ICR) |
| Min illumination | Color: 0.002 Lux(AGC on) – B/W: 0.0 Lux(IR on) |
| Angle of View | H-FOV: 40°~16°, V-FOV: 23°~9°, D-FOV: 46°~19° |
| Night Vision | Color / IR |
| Picture Function | 140 dB WDR/DWDR, Defog, AWB, EIS, 2D/3D DNR, BLC, HLC, ROI, Anti-flicker, Corridor Mode, Deblur |
| Shutter Speed | Manual (1/3 ~ 1/100.000), Auto |
| D/N Control | Timing, Auto, Color on, Color off |
| Recording | FTP, NVR, CMS, VMS, NAS, SD Card |
| Image Parameter | Saturation, Brightness, Contrast, Sharpness, Hue |
| Video Compression | H.264+(Ultra H.264), H.265+ (Ultra H.265) MJPEG |
| Audio Compression | G.711A, G.711U |
| Frame Rate(60Hz) | 90fps@1920×1080, 1280×960, 1280×720, 704×576 |
| Transmission Stream | Dual Stream (Code Rate: 256kbps-16mbps) |
| Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, QoS |
| Compatibility | Onvif Ver2.6, Profile S/G/Q/T, API, SDK, CGI |
| Streaming Method | Unicast, Multicast |
| Web Viewer | IE, Edge, Firefox, Chrome |
| Smart Device | iOS, Android Phone & Tablet |
| Certificates | EN, CN, FCC, CFR |
