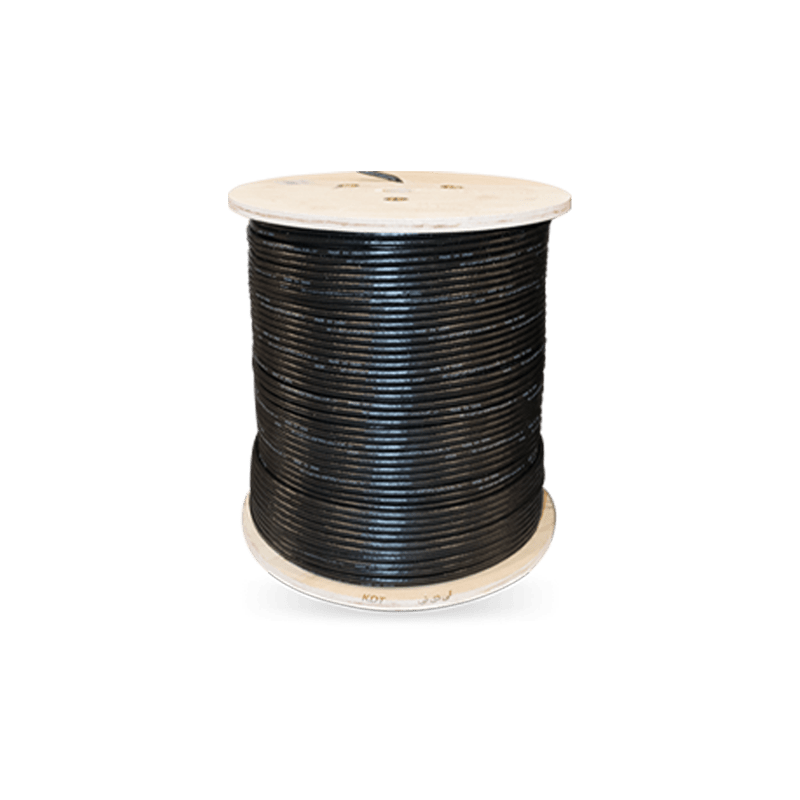

کابلهای شبکه کی دی تی مدل NC-Cuprum 6SFTPO
| Conductor | |
| Size | 23 AWG |
| Design Type | Spacer / Copper Wires / 1 Jacket / Shield / Foil |
| Diameter (mm) | 0.5 ± 0.55 |
| Insulation | |
| Type | SFTP Outdoor |
| Cable Diameter | Nom.5.5 ± 0.5 mm |
| Jacket Thickness | Nominal Thickness = 0.59 mm |
| Shielding | Aluminium / Polyester Foil |
| Physical | |
| 1. Cold Bend Test | -30 ± 2°C X 4hrs no crack |
| 2. Dielectric strength | AC 1.7KV for 2s |
| 3. Insulation | Before Aging | After Aging Min Tensile Strength (psi): 2400 | 75% before aging (100°C X 48hours) Min elongation (%): 300 | 75% before aging (100°C X 48hours) |
| Jacket | |
| Min Bending Radius | 50 mm |
| Installation Temperature | -10°C to +65°C |
| Type | PVC-Polyethylene |
| Overall Diameter | 8.3 ± 0.3 mm |
