KI-D25ST80A-i50TSLM
50~60 m Smart IR SMD Technology
2.7~13.5 mm @F1.6 Motorized
PRODUCTS
Innovative Technology | Reliable Quality | End-to-End Service
دوربین مداربسته دام کی دی تی مدل KI-D25ST80A-i50TSLM
قابلیت های هوشمند:
- عبور از خط
- فنــس مجـــازی
- ورود به منطقـه
- خــروج از منطقـه
- تردد شمـار افــراد
- تشخیص چهـــره
- تشخیص حرکت سریـع افـــراد
- تشخیص تغییــر زاویـه دوربیــن
- تشخیص صدای غیر عـادی
- تشخیص عدم فوکـوس لنــز
- تشخیص پرســه زنـی افـراد

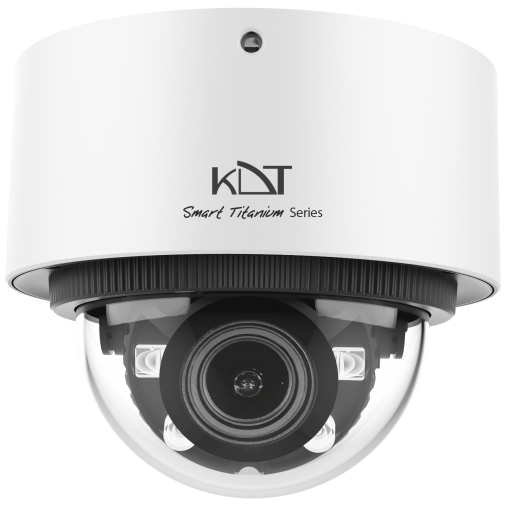

KI-D25ST80A-i50TSLM
8MP Dome Network Camera
- 8MP (Sony-Japan) Progressive scan Cmos Sensor (1/2.8”)
- 2.7~13.5mm @F1.6 Motorized Fast Auto Focus Lens
- H.264+(Ultra H.264), H.265+ (Ultra H.265)
- 30fps@ 8MP(3840*2160), 30fps@ 6MP, 30fps@ 4MP, 90fps@ 2MP
- Dual-Core ARM Cortex-A7@900 MHz
- Support PoE
- Triple Stream (Video Bit Rate:11 Kbps~16 Mbps)
- IP67, IK10, 6KV Surge Protection
سایر برتری ها :
پشتیبانی از میکرو SD با ظرفیت 256GB
> بدنــه ضد آب و گـرد و غبـــار با درجه IP67, IK10
> ســـرور انتقـــال تصویـــر در ایــران
> پشتیبـــانی از + H.264+ / H.265
> پشتیبـــانـــی از ONVIF ورژن 2.6
> قـــابلیت دیـد در شب هـوشمنــد
> قابلیت WDR, BLC, HLC, Defog و ROI تا 8 ناحیه
> پشتیبانی از ضبط اضطراری ANR>امکان سفارش با نرم افزار امن و محدود شده جهت استفاده در مراکز با حساسیت بالا به همراه گواهینامه
شرایط گارانتی :
> پنج سال گارانتی طلایی بدون قید و شرط کی دی تی
> شش سال ضمانت پایداری کیفیت تصویر
شامل: آبخوردگی ، شکستگی ، ضربه دیدگی ، خسارت ناشی از صاعقه ، زنگ زدگی ، نوسانات برق ، سایر اتفاقات و صدمات
| Camera | |
| Image Sensor | 8MP (Sony-Japan) Progressive scan Cmos Sensor (1/2.8″) |
| CPU | Dual-Core ARM Cortex-A7@900 MHz |
| Lens | 2.7~13.5 mm @F1.6 Motorized Fast Auto Focus Lens |
| Resolution | 3840*2160 (8MP) |
| Available IR Range | 50~60 M Smart IR SMD Technology Smart White light Technology |
| D/N Filter | IR cut filter with auto switch |
| Min illumination | Color: 0.001 lux(AGC on) – B/W: 0.0 Lux(IR on) |
| Angle of View | H-FOV: 112°~36°, V-FOV: 58°~20°, D-FOV: 129°~39° |
| Night Vision | Color /IR |
| Recording | |
| Recording | FTP, NVR, CMS, VMS, NAS, SD Card, ANR |
| Record Type | Manual, Motion Detection, Smart Detection, Schedule |
| Alarm Triggers | All Intelligent Function |
| Event Action | Email, PTZ, Snapshot, Recording, Buzzer, Pop up, Show Message, Smart Light |
| Event | Smart Motion Detection, Video Shelter |
| Intelligent Function | 11 Smart Function Line Crossing, Area Intrusion, Region Entrance, Region Exiting, Fast Moving, Loitering Detection, Blurred Detection, Scene Change Detection, Face Detection, Audio Exception Detection, Crossing Line Statistics |
| Picture Adjust | |
| Picture Function | 120dB WDR/DWDR, 2D/3D DNR, BLC, HLC, ROI, Defog |
| Shutter Speed | Manual (1/3 ~ 1/100-000), Auto |
| Image Parameter Control | Off, On, Timing (Adjust 0 ~ 255) |
| D/N Control | Timing, Auto, Color on, Color off |
| S/N | > 56dB |
| Image Parameter | Saturation, Brightness, Contrast, Sharpness, Hue |
| Network | |
| Network | 1 RJ45 (10M / 100M) Ethernet Port |
| External Audio | Audio Out, Audio in |
| Internal Audio | Internal Mic |
| Alarm | Alarm In, Alarm Out |
| CVBS | N/A |
| Power | POE LAN, DC In |
| Reset Button | Yes (Optional) |
| Memory Slot | Yes – Micro SD/SDHC/SDXC Slot (256 Gb Max) (ANR Support) |
| Video / Audio | |
| Video Compression | H-264+(Ultra H.264), H-265+ (Ultra H-265) |
| Audio Compression | G.711A, G.711U |
| Frame Rate(60Hz) | 30fps@ 8MP(3840*2160), 30fps@ 6MP, 30fps@ 4MP, 90fps@ 2MP |
| Transmission Stream | Triple Stream (Video Bit Rate:11 Kbps~16 Mbps) |
| Network | |
| Protocols | TCP/IP(V4, V6), ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, P2P, Bonjour, SNMP (V1, V2, V3), UDP, NAT, Multicast, RTMP, 802.1X |
| Compatibility | Onvif Ver2.6, Profile S, G, T, CGI, SDK, API |
| Streaming Method | Unicast, Multicast |
| Web Viewer | IE, Edge, Firefox, Chrome |
| Smart Device | IOS, Android Phone & Tablet |
| Interface | |
| Network | 1 RJ45 (10M / 100M) Ethernet Port |
| External Audio | Audio Out, Audio in |
| Internal Audio | Internal Mic |
| Alarm | Alarm In, Alarm Out |
| CVBS | N/A |
| Power | POE LAN, DC In |
| Reset Button | Yes (Optional) |
| Memory Slot | Yes – Micro SD/SDHC/SDXC Slot (256 Gb Max) (ANR Support) |
| General | |
| Protection Rating | IP67, IK10, 6KV Surge Protection |
| Power Supply | DC12V± 10% |
| POE Supply | IEEE802.3af – Max 10 Watt |
| Web Language | English, Persian |
| Dimension | 141*119 mm |
| Weight | 1.2 Kg |
| Operation Humidity | Humidity 95% or less (non-condensing) |
| Operation Temp | -30℃~+60℃ |
| Guarantee | |
| Product Guarantee | 5 Years Gold Guarantee |
| MTBF | 100K hrs min. MIL-HDBK-217F (25°) |
| Certificates | EN, CN, FCC, CFR |
