DR-24052
240 Watt External Power Supply
52V DC Voltage
PRODUCTS
Innovative Technology | Reliable Quality | End-to-End Service
پاور صنعتی کی دی تی مدل DR-24052
عملکردهای اصلی:
- دارای حداکثر توان 240 وات

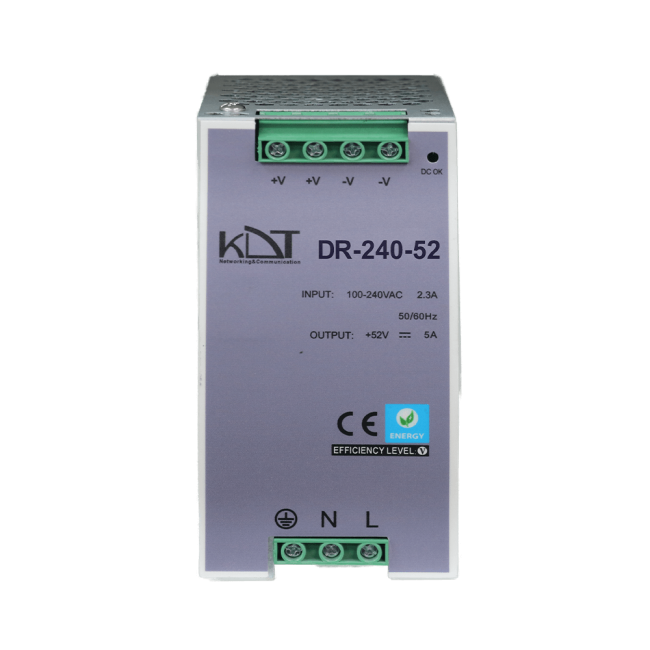

DR-24052
240 Watt External Power Supply, 52V DC Voltage
- 2.5A Rated Current
- 0 ~ 2.5A Current Range
- 105 ~ 130% Rated Output Power
- External Power Supply
سایر برتری ها :
- سخت افزار منحصر بفرد جهت پایداری در تمام شرایط
- اولین محصول ایرانی دارای نشان استاندارد CE اروپا
- قـابلیـت نصب دستگاه در تابلو (DIN-Rail)
- دارای گواهینامه ایزو 9001 ، 10002 و 10004
- بدنه تمـام استیل
شرایط گارانتی :
- سه سال گارانتی پلاتینیوم بدون قید و شرط کی دی تی
- شامل: آبخوردگی ، شکستگی ، ضربه دیدگی ، خسارت ناشی از صاعقه ، زنگ زدگی ، نوسانات برق ، سایر اتفاقات و صدمات
| Output | |
| DC Voltage | 52V |
| Rated Current | 5A |
| Current Range | 0 ~ 5A |
| Rated Power (Max) | 260W |
| Ripple & Noise (Max) | 150mVp-p |
| Voltage Adj. Range | 48 ~ 58V |
| Voltage Tolerance | ±1.0% |
| Line Regulation | ±0.5% |
| Load Regulation | ±0.5% |
| Setup, Rise, Hold Up Time | 2000ms, 70ms, 50ms/230VAC at full load |
| Input | |
| Input Range | 100~240VAC |
| Frequency Range | 47 ~ 63Hz |
| Efficiency (Typ) | 92% / 400V |
| AC Current | 2.3A/230VAC |
| Inrush Current (Max) | Cold Start 50A |
| Leakage Current | <3.5mA / 530VAC |
| Protection | |
| Overload | 105 ~ 130% Rated Output Power |
| Over Voltage | 57 ~ 63V |
| Over Temperature | Shut Down O/P Voltage, Recovers Automatically After Temperature Goes Down |
| Function | |
| DC OK Signal | Relay Contact Rating(Max): 30V / 1A Resistive |
| Environment | |
| Working Temp | 25 ~ +70° (Refer to «Derating Curve») |
| Working Humidity | 20 ~ 90% RH Non-Condensing |
| Storage Temp., Humidity | -40 ~ +85°, 10 ~ 95% RH |
| Temp. Coefficient | ±0.03% / °C (0 ~ 50°C) |
| Vibration | Component: 10 ~ 500Hz, 2G 10Min./1Cycle, 60Min. Each Along X, Y, Z Axes; Mounting Clip: Compliance To IEC60068-2-6 |
| Safety & EMC | |
| Safety Standards | UL508, EAC TP TC004 approved, IEC60950-1 CB approved by SLQ, design refer to GL; meet EN60204-1 |
| Withstand Voltage | I/P-O/P:3KVAC, I/P-FG:2KVAC, O/P-FG:0.5KVAC |
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG-100M Ohms / 500VDC / 25°C / 70% RH |
| EMC Emission | Compliance to EN55011 (CISPR11), EN55032 (CISPR32), EN61000-3-2 Class B, EAC TP TC 020 |
| EMC Immunity | Compliance to EN61000-4-2,3,4,5,6,8,11, EN61204-3, EN61000-6-2 (EN50082-2), heavy industry level, criteria A, EAC TP TC 020 |
| Other | |
| Mounting | DIN-Rail |
| Dimension | 125*65*92mm |
| Packing | 0.65Kg; 20pcs/14kg/1.16CUFT |
| Guarantee | |
| Product Guarantee | 1 Year Guarantee |
| MTBF | 268K hrs min. MIL-HDBK-217F (25°C) |
توضیحات
Description / DR-24052
