KI-B85ST80A-i100TSMR
100~110 m Smart IR SMD Technology 8~32 mm @F1.6, Motorized Super Starlight Technology
PRODUCTS
Innovative Technology | Reliable Quality | End-to-End Service
دوربین مداربسته کی دی تی مدل KI-B85ST80A-i100TSMR
قابلیت های هوشمند:
- عبور از خط
- فنــس مجـــازی
- ورود به منطقـه
- خــروج از منطقـه
- تشخیص چهـــره
- تشخیص انسان
- تشخیص خودرو
- تشخیص پارک غیر مجاز خودرو
- تشخیص حرکت سریـع افـــراد
- تشخیص تغییــر زاویـه دوربیــن
- تشخیص صدای غیر عـادی
- تشخیص عدم فوکـوس لنــز
- تشخیص پرســه زنـی افـراد
- تردد شمـار هوشمند
- تشخیص تراکم جمیعت هوشمند

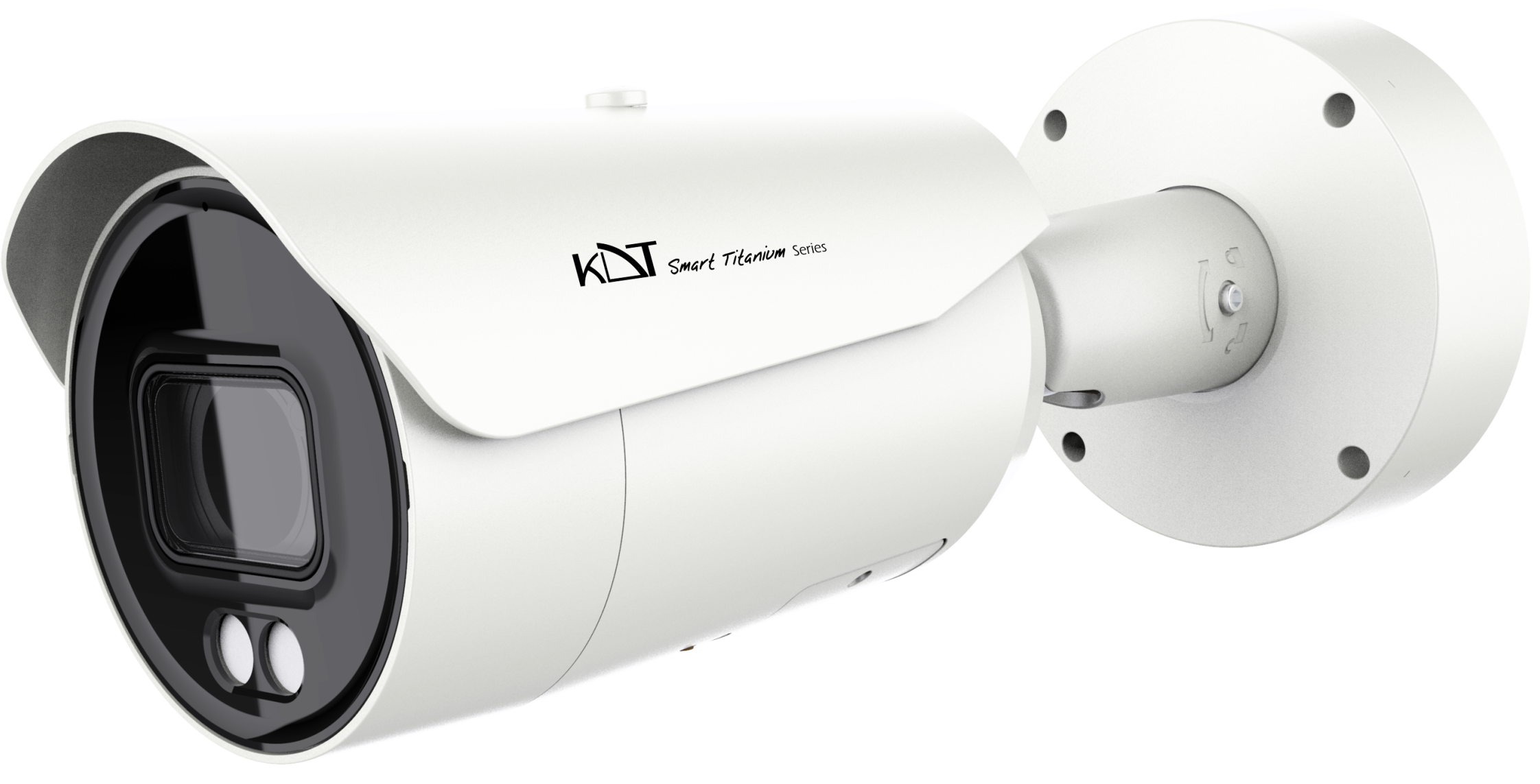

KI-B85ST80A-i100TSMR
8MP Bullet Network Camera
- 8MP Super Starlight (Sony-Japan) Progressive scan Cmos Sensor (1/1.8”)
- 8~32 mm @F1.6, Motorized Fast Auto Focus Lens
- H.264+(Ultra H.264), H.265+ (Ultra H.265)
- 30fps@ 8MP(3840*2160), 30fps@ 6MP, 30fps@ 4MP, 60fps@ 2MP
- Super Starlight Technology
- PoE Support
- Triple Stream (Video Bit Rate:11 Kbps~16 Mbps)
- Alarm Triggers All Intelligent Function
- Internal Mic, Audio Out, Audio in
سایر برتری ها :
پشتیبانی از میکرو SD با ظرفیت 256GB
بدنــه ضد آب و گـرد و غبـــار با درجه IP67, IK10
ســـرور انتقـــال تصویـــر در ایــران
پشتیبـــانی از +H.264 / H.265
پشتیبـــانـــی از ONVIF ورژن 2.6
قـــابلیت دیـد در شب هـوشمنــد
قابلیت WDR, BLC, HLC, Defog و ROI تا ۸ ناحیه
پشتیبانی از ضبط اضطراری ANR
پشتیبانی از تکنولوژی تثبیت تصویر EIS
امکان سفارش با نرم افزار امن و محدود شده جهت استفاده در مراکز با حساسیت بالا به همراه گواهینامه
شرایط گارانتی :
پنج سال گارانتی طلایی بدون قید و شرط کی دی تی
شش سال ضمانت پایداری کیفیت تصویر
شامل: آبخوردگی، شکستگی، ضربه دیدگی، خسارت ناشی از صاعقه، زنگ زدگی، نوسانات برق، سایر اتفاقات و صدمات
| Camera | |
| Image Sensor | 8MP Super Starlight (Sony-Japan) Progressive scan Cmos Sensor (1/1.8″) |
| CPU | Dual-Core ARM Cortex-A7@900 MHz |
| Lens | 8~32 mm @F1.6, Motorized Fast Auto Focus Lens |
| Aperature | DC Iris |
| Resolution | 3840*2160 (8MP) |
| Available IR Range | 100~110 m Smart IR SMD(8PCS) Technology |
| D/N Filter | IR cut filter with auto switch |
| Min illumination | Color: 0.0008 lux(AGC on) – B/W: 0.0 Lux(IR on) |
| Angle of View | H-FOV: 42.5°~15.1°, V-FOV: 23.6°~8.6°, D-FOV:47.7°~17.4° |
| Night Vision | Super Starlight Technology |
| Red/Blue Light Warning | Flash: 5 s-30 s; frequency: high/medium/low |
| Recording | |
| Recording | FTP, NVR, CMS, VMS, NAS, SD Card, ANR |
| Record Type | Manual, Motion Detection, Smart Detection, Schedule |
| Alarm Triggers | All Intelligent Function |
| Event Action | Email, PTZ, Snapshot, Recording, Buzzer, Pop up, Show Message |
| Event | Smart Motion Detection, Video Shelter |
| Intelligent Function | 15 Smart Function Line Crossing, Area Intrusion, Region Entrance, Region Exiting, Fast Moving, Loitering Detection, Blurred Detection, Scene Change Detection, Audio exception Detection, Face Detection, Smart People Counting,, Crowd Density Monitorring, Missing Object, Unattended Object, Parking detection |
| Picture Adjust | |
| Picture Function | 120dB WDR/DWDR, 2D/3D DNR, BLC, HLC, ROI, Defog |
| Shutter Speed | Manual (1/3 ~ 1/100.000), Auto |
| Image Stabilization | Yes (EIS) |
| Image Parameter Control | Off, On, Timing (Adjust 0 ~ 255) |
| D/N Control | Timing, Auto, Color on, Color off |
| S/N | > 58dB |
| Image Parameter | Saturation, Brightness, Contrast, Sharpness, Hue |
| Network | |
| Network | 1 RJ45 (10M / 100M) Ethernet Port |
| External Audio | Audio Out, Audio in |
| Internal Audio | Internal Mic |
| Alarm | Alarm In, Alarm Out |
| CVBS | N/A |
| Power | PoE LAN, DC In |
| Reset Button | Yes (Optional) |
| Memory Slot | Yes – Micro SD/SDHC/SDXC Slot (256 Gb Max) (ANR Support) |
| Video / Audio | |
| Video Compression | H.264+(Ultra H.264), H.265+ (Ultra H.265), MJPEG |
| Audio Compression | G.711A, G.711U |
| Frame Rate(60Hz) | 30fps@ 8MP(3840*2160), 30fps@ 6MP, 30fps@ 4MP, 60fps@ 2MP |
| Transmission Stream | Triple Stream (Video Bit Rate:11 Kbps~16 Mbps) |
| Network | |
| Protocols | TCP/IP(V4, V6), ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, P2P, Bonjour, SNMP (V1, V2, V3), UDP, NAT, Multicast, RTMP, 802.1X |
| Compatibility | Onvif Ver2.6, Profile S, G, T, CGI, SDK, API |
| Streaming Method | Unicast, Multicast |
| Web Viewer | IE, Edge, Firefox, Chrome |
| Smart Device | IOS, Android Phone & Tablet |
| Interface | |
| Network | 1 RJ45 (10M / 100M) Ethernet Port |
| External Audio | Audio Out, Audio in |
| Internal Audio | Internal Mic |
| Alarm | Alarm In, Alarm Out |
| CVBS | N/A |
| Power | PoE LAN, DC In |
| Reset Button | Yes (Optional) |
| Memory Slot | Yes – Micro SD/SDHC/SDXC Slot (256 Gb Max) (ANR Support) |
| General | |
| Protection Rating | IP67, IK10, 6KV Surge Protection |
| Back Box | Yes |
| Power Supply | DC12V± 10% |
| POE Supply | IEEE802-3af – Max 15 Watt |
| Web Language | English, Persian |
| Dimension | 360*140 mm |
| Weight | 2.9 Kg |
| Operation Humidity | Humidity 95% or less (non-condensing) |
| Operation Temp | -30℃~ +60℃ |
| Guarantee | |
| Product Guarantee | 5 Years Gold Guarantee |
| MTBF | 100K hrs min. MIL-HDBK-217F (25°) |
| Certificates | EN, CN, FCC, CFR |
