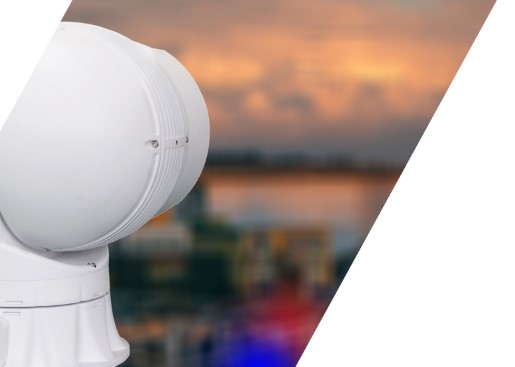

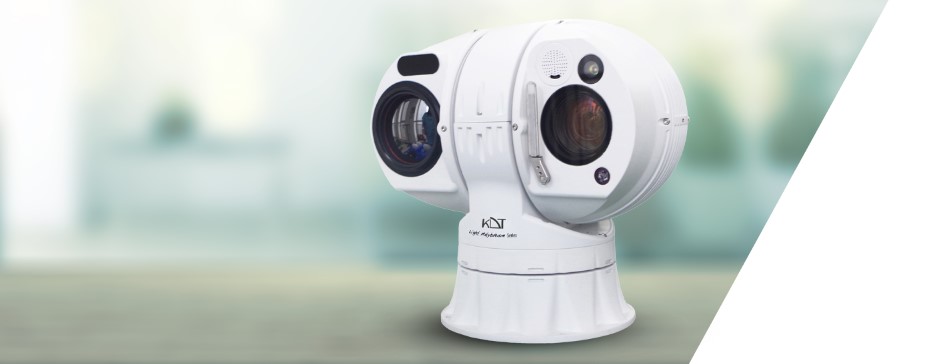

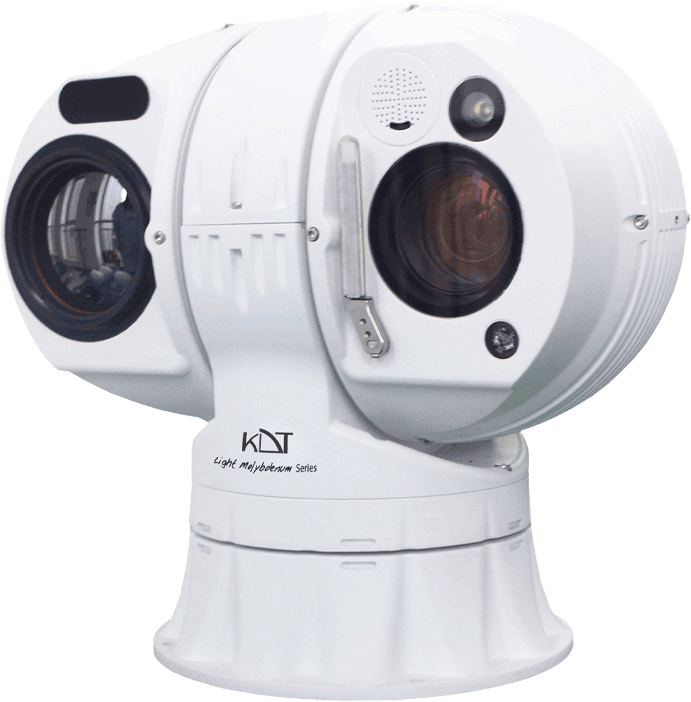

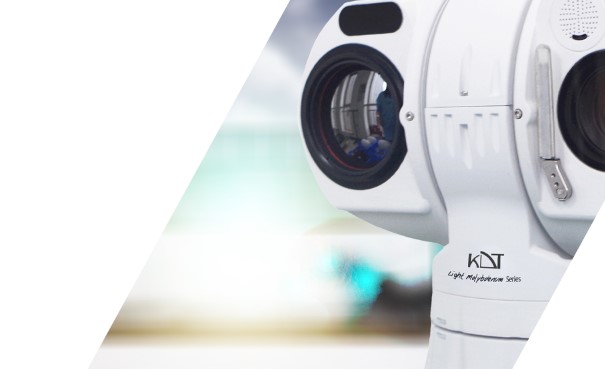

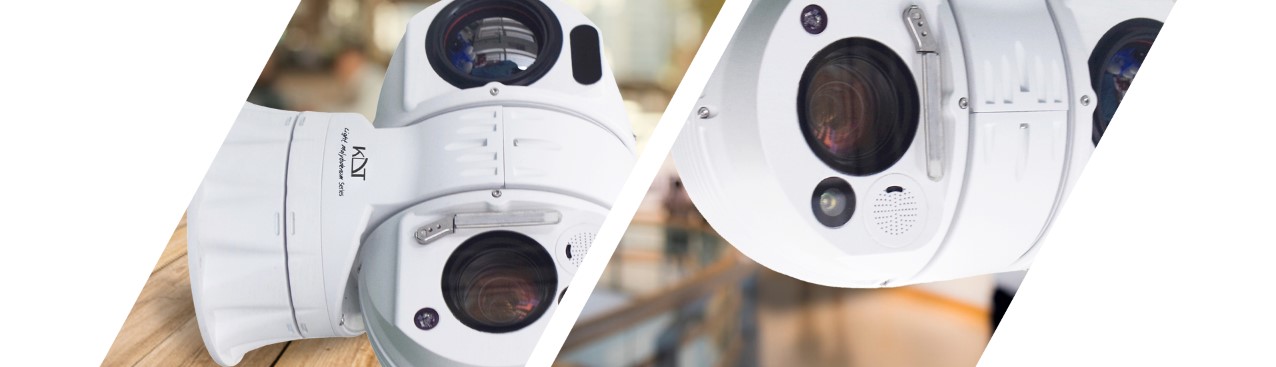

KI-TDV430LM20A-SW
100m-10Km in Total Darkness
PRODUCTS
Innovative Technology | Reliable Quality | End-to-End Service
100m-10Km in Total Darkness
Innovative Technology | Reliable Quality | End-to-End Service
> uncooled FPA sensor
> 12μm Pixel Size
> ≤45mK NETD
> 7.5～14μm, MWIR Spectral Ra
> 25~75mm Zoom Focal length
> 1/2.8” CMOS, Integrated ICR Dual Filter D/N Switc
> 8~320mm 40X Optical Lens
> IP67, 6KV Surge Protection
> دو سال گارانتی نقره ای بدون قید و شرط کی دی تی
> سه سال ضمانت پایداری کیفیت تصویر
شامل: آبخوردگی ، شکستگی ، ضربه دیدگی ، خسارت ناشی از صاعقه ، زنگ زدگی ، نوسانات برق ، سایر اتفاقات و صدمات
| Camera | |
| Image Sensor | 6MP (Sony-Japan) Progressive scan Cmos Sensor (1/2.8”) |
| CPU | Dual-Core ARM Cortex-A7@900MHz |
| Lens | 3.6mm Fixed Lens @F1.6, (2.8 mm Optional) |
| Resolution | 3200*1800 (6MP) |
| Available IR Range | 30~40 M Smart IR SMD (Osram-Germany) Technology |
| D/N Filter | IR cut filter with auto switch |
| Min Illumination | Color: 0.001 lux(AGC on) – B/W: 0.0 Lux(IR on) |
| Angel of View |
H-FOV: 81° –(106°)*, V-FOV:64° –(58°)*, D-FOV: 95° –(110°)* |
| Night Vision |
Color /IR |
| Picture Adjust | |
| Picture Function | 120dB WDR/DWDR, 2D/3D DNR, BLC, HLC, ROI, Defog |
| Shutter Speed | Manual (1/3 ~ 1/100.000), Auto |
| Image Parameter Control | Off, On, Timing (Adjust 0 ~ 255) |
| D/N Control | Timing, Auto , Color on, Color off |
| S/N |
> 56dB |
| Image Parameter | Saturation, Brightness, Contrast, Sharpness, Hue |
| Video/Audio | |
| Video Compression | H.264+(Ultra H.264), H.265+ (Ultra H.265) |
| Audio Compression | G.711A, G.711U |
| Frame Rate(60Hz) | 30fps@ 6MP(3200*1800), 30fps@ 4MP, 90fps@ 2MP |
| Transmission Stream | Triple Stream (Video Bit Rate:11 Kbps~16 Mbps) |
| Network | |
| Protocols | TCP/IP(V4, V6), ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, P2P, Bonjour, SNMP (V1, V2, V3), UDP, NAT, Multicast, RTMP |
| Compatibility | Onvif Ver2.6, Profile S, G, T, CGI, SDK, API |
| Streaming Method | Unicast, Multicast |
| Web Viewer |
IE, Edge, Firefox, Chrome |
| Smartphone | IOS, Android Phone & Tablet |
| Function | |
| Recording | FTP, NVR, CMS, NAS, SD Card, ANR |
| Record Type | Manual, Motion Detection, Smart Detection, Schedule |
| Alarm Triggers | All Intelligent Function |
| Event Action | Email, PTZ, Snapshot, Recording, Buzzer, Pop up, Show Message |
| Event |
Smart Motion Detection, Video Shelter |
| Intelligent Function | 11 Smart Function Line Crossing, Area Intrusion, Region Entrance, Region Exiting, Fast Moving, Loitering Detection, Blurred Detection, Scene Change Detection, Audio exception Detection, Crossing Line Statistics, Face Detection |
| Interface | |
| Network | 1 RJ45 (10M / 100M) Ethernet Port |
| Audio | Internal Mic, Audio Out, Audio In |
| Alarm |
Alarm Out, Alarm In |
| CVBS | N/A |
| Power | PoE LAN, DC In |
| Reset Button |
Yes (Optional) |
| Memory Slot | Yes – Micro SD/SDHC/SDXC Slot (256 Gb Max) (ANR Support) |
| General | |
| IP Rating | IP67, IK10, 6KV Surge Protection |
| Power Supply | DC12V ± 10% |
| POE Supply | IEEE802.3af – Max 8.5 Watt |
| Web Language | English, Persian |
| Dimension | 110*95mm |
| Weight | 600g |
| Operation Humidity | Humidity 95% or less (non-condensing) |
| Operation Temp | -30°C ~ +60°C |
| Guarantee | |
| Product Guarantee | 5 Years Gold Guarantee |
| MTBF | 100K hrs min. MIL-HDBK-217F (25°) |
| Certificate | EN, CN, FCC, CFR |
| Image Sensor | 6MP (Sony-Japan) Progressive scan Cmos Sensor (1/2.8”) |
|---|---|
| Smartphone | IOS, Android Phone & Tablet |
| Resolution | 3200*1800 (6MP) |
| Available IR Range | 30~40 M Smart IR SMD (Osram-Germany) Technology |
| D/N Filter | IR cut filter with auto switch |
| Min Illumination | Color: 0.001 lux(AGC on) – B/W: 0.0 Lux(IR on) |
| Angel of View | H-FOV: 81° –(106°)*, V-FOV:64° –(58°)*, D-FOV: 95° –(110°)* |
| Night Vision | Color /IR |
| Picture Function | 120dB WDR/DWDR, 2D/3D DNR, BLC, HLC, ROI, Defog |
| Shutter Speed | Manual (1/3 ~ 1/100.000), Auto |
| D/N Control | Timing, Auto , Color on, Color off |
| S/N | > 56dB |
| Image Parameter Control | Off, On, Timing (Adjust 0 ~ 255) |
| Image Parameter | Saturation, Brightness, Contrast, Sharpness, Hue |
| Video Compression | H.264+(Ultra H.264), H.265+ (Ultra H.265) |
| Audio Compression | G.711A, G.711U |
| Frame Rate(60Hz) | 30fps@ 6MP(3200*1800), 30fps@ 4MP, 90fps@ 2MP |
| Transmission Stream | Triple Stream (Video Bit Rate:11 Kbps~16 Mbps) |
| Protocols | TCP/IP(V4, V6), ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, P2P, Bonjour, SNMP (V1, V2, V3), UDP, NAT, Multicast, RTMP |
| Compatibility | Onvif Ver2.6, Profile S, G, T, CGI, SDK, API |
| Streaming Method | Unicast, Multicast |
| Web Viewer | IE, Edge, Firefox, Chrome |
| Lens | 3.6mm Fixed Lens @F1.6, (2.8 mm Optional) |
| CPU | Dual-Core ARM Cortex-A7@900MHz |
| Memory Slot | Yes – Micro SD/SDHC/SDXC Slot (256 Gb Max) (ANR Support) |
| IP Rating | IP67, IK10, 6KV Surge Protection |
| Event Action | Email, PTZ, Snapshot, Recording, Buzzer, Pop up, Show Message |
| Event | Smart Motion Detection, Video Shelter |
| Intelligent Function | 11 Smart Function Line Crossing, Area Intrusion, Region Entrance, Region Exiting, Fast Moving, Loitering Detection, Blurred Detection, Scene Change Detection, Audio exception Detection, Crossing Line Statistics, Face Detection |
| Network | 1 RJ45 (10M / 100M) Ethernet Port |
| Audio | Internal Mic, Audio Out, Audio In |
| Alarm | Alarm Out, Alarm In |
| CVBS | N/A |
| Power | PoE LAN, DC In |
| Reset Button | Yes (Optional) |
| Record Type | Manual, Motion Detection, Smart Detection, Schedule |
| Recording | FTP, NVR, CMS, NAS, SD Card, ANR |
| Power Supply | DC12V ± 10% |
| POE Supply | IEEE802.3af – Max 8.5 Watt |
| Web Language | English, Persian |
| Dimension | 110*95mm |
| Weight | 600g |
| Operation Humidity | Humidity 95% or less (non-condensing) |
| Operation Temp | -30°C ~ +60°C |
| Product Guarantee | 5 Years Gold Guarantee |
| MTBF | 100K hrs min. MIL-HDBK-217F (25°) |
| Alarm Triggers | All Intelligent Function |
| Certificate | EN, CN, FCC, CFR |
