KDT en Logo

KI-S300ST50Z32-i150TSMPUR

150~160 m Smart IR 4pcs Aray

32X Optical Lens (4.8~154mm) Starlight

PRODUCTS

Innovative Technology | Reliable Quality | End-to-End Service

دوربین مداربسته کی دی تی مدل KI-S300ST50Z32-i150TSMPUR

قابلیت های هوشمند:

  • عبور از خط
  • فنــس مجـــازی
  • ورود به منطقـه
  • خــروج از منطقـه
  • گـم شدن اشیـــاء
  • اضافه شدن اشیاء
  • تشخیص تجمع افـراد

  • تشخیص حرکت سریـع افراد
  • تشخیص تغییــر زاویـه دوربیــن
  • تشخیص پارک غیر مجاز خـــودرو
  • تشخیص پرســه زنـی افـراد
  • تشخیص صدای غیر عـادی
  • تشخیص عدم فوکـوس لنــز
  • تردد شمـار افــراد

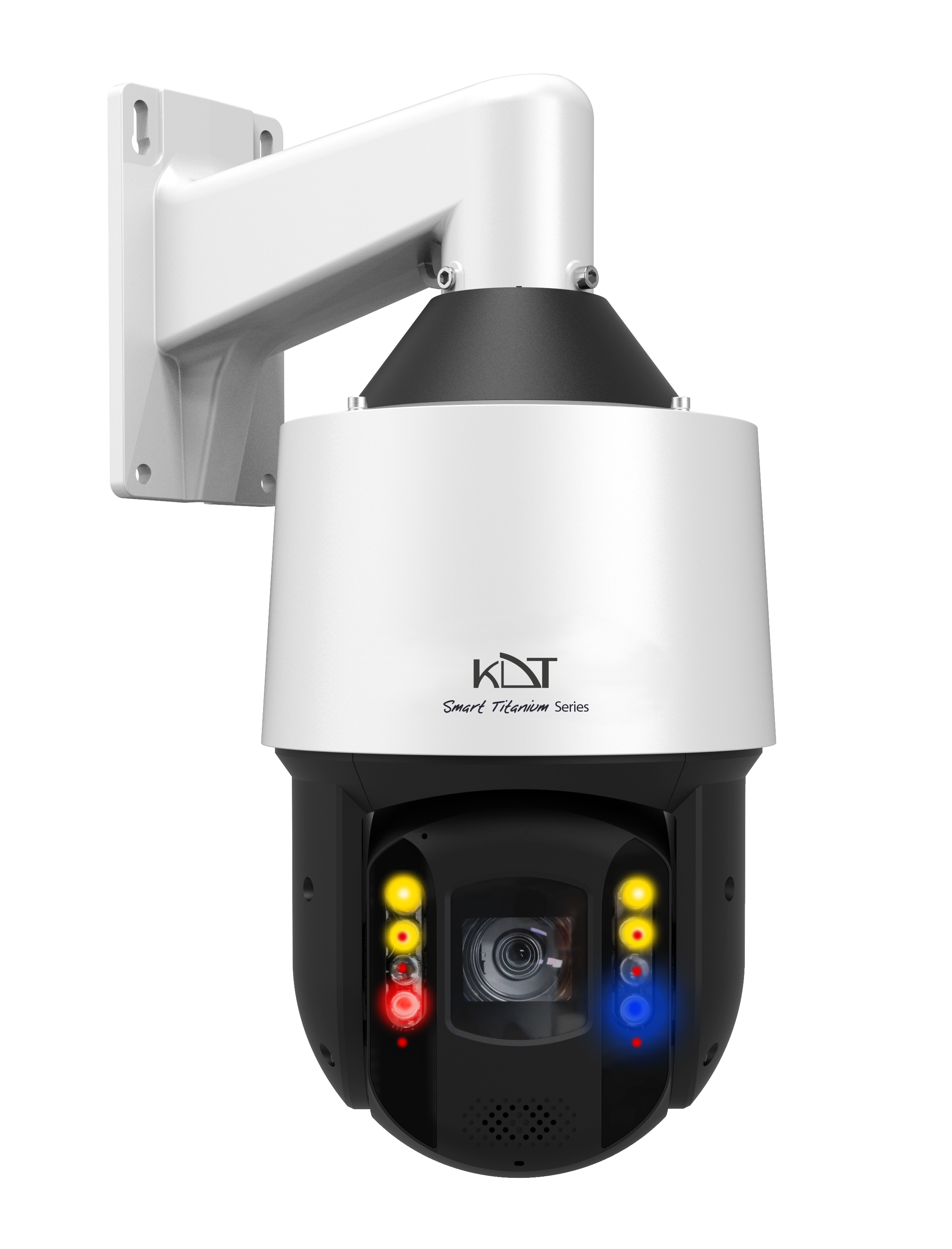

KI-S300ST50Z32-i150TSMPUR

5MP Speed Dome Network Camera

  • 5MP Starlight (Sony-Japan) Cmos Sensor (1/2.8”)
  • 32X Optical Lens (4.8~154mm)
  • H.264+(Ultra H.264), H.265+ (Ultra H.265)
  • 30fps@ 5MP(2592*1944), 30fps@ 4MP, 60fps@ 2MP
  • Dual-Core ARM Cortex A7@900MHz
  • Support PoE
  • Triple Stream (Code Rate: 32kbps-16mbps)
  • IP67, 6KV Surge Protection
  • Auto Track

سایر برتری ها :

  • پشتیبانی از میکرو SD با ظرفیت 256GB
  • بدنــه ضد آب و گـرد و غبـــار با درجه IP67
  • ســـرور انتقـــال تصویـــر در ایــران
  • پشتیبـــانی از +H.264 / H.265
  • پشتیبـــانـــی از ONVIF ورژن 2.6
  • قـــابلیت دیـد در شب هـوشمنــد
  • قابلیت WDR, BLC, HLC, Defog و ROI تا ۸ ناحیه
  • پشتیبانی از ضبط اضطراری ANR
  • پشتیبانی از تکنولوژی تثبیت تصویر EIS
  • پشتیبانی از تکنولوژی تعقیب سوژه هوشمند
  • پشتیبانی از تکنولوژی طرح سه بعدی در زوم و فوکوس

شرایط گارانتی :

  • پنج سال گارانتی طلایی بدون قید و شرط کی دی تی
  • شش سال ضمانت پایداری کیفیت تصویر
  • شامل: آبخوردگی، شکستگی، ضربه دیدگی، خسارت ناشی از صاعقه، زنگ زدگی، نوسانات برق، سایر اتفاقات و صدمات





دانلود دیتاشیت





دانلود نرم افزار

Camera
Image Sensor5MP Starlight (Sony-Japan) Progressive scan Cmos Sensor (1/2.8″)
CPUDual-Core ARM Cortex-A7@900MHz
Lens32X Optical Lens (4.8-154mm) (F-Stop F1.5~F3.8)
Resolution2592*1944 (5MP)
Available IR Range150-160 m Smart IR SMD Technology (4pcs IR SMD) 80 m Warm Light Technology (2 pcs Warm Light)
D/N FilterIR Cut Filter Switch (ICR)
Min IlluminationColor: 0.005 Lux (AGC on) – B/W:0.0 Lux (IR on)(Warm Light On)
PTZPan Range: 360° Endless – Pan Speed: 0.1°-150°/s, Tilt Range: -15°-90° Auto Flip – Tilt Speed: 1.8°-75°/s, Number of Presets: 250 – Patrol: 32 – Pattern: 8 – Park Action: Yes
Night VisionDual Light Technology
Picture Adjust
Picture Function120dB WDR/DWDR, 2D/3D DNR, BLC, HLC, ROI, Defog
Image StabilizationYes (EIS)
Digital Zoom16x
Shutter SpeedManual (1/3 ~ 1/100.000), Auto
Image ControlOff, On, Timing (Adjust 0 ~ 255)
D/N ControlTiming, Auto, Color on, Color off
S/N> 56dB
Image SettingSaturation, Brightness, Contrast, Sharpness, Hue
Video / Audio
Video CompressionH.264+(Ultra H.264), H.265+ (Ultra H.265), MJPEG
Audio CompressionG.711A, G.711U
Frame Rate (60Hz)30fps@5MP(2592*1944), 30fps@4MP, 30fps@2MP
Transmission StreamTriple Stream (Code Rate: 32Kbps-16Mbps)
Network
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, P2P, Bonjour, RTMP
CompatibilityOnvif Ver2.6, Profile S, G, T, CGI, SDK, API
Streaming MethodUnicast, Multicast
Web ViewerIE, Edge, Firefox, Chrome
Function
RecordingFTP, NVR, CMS, VMS, NAS, SD Card, ANR
Record TypeManual, Motion Detection, Smart Detection, Schedule
Alarm TriggersAll Intelligent Function
Event ActionEmail, PTZ, Snapshot, Recording, Buzzer, Pop up, Show Message, Smart Light
EventSmart Motion Detection, Video Shelter
Auto TrackYes
3D Position/3D ZoomYes
Intelligent Function14 Smart Function
Line Crossing Detection, Area Intrusion, Region Entrance, Region Exiting, Unattended Object, Object Missing, Fast Moving, Loitering Detection, People Gathering Detection, Parking Detection, Blurred Detection, Scene Change Detection, Audio Exception Detection, Crossing Line Statistics
Interface
NetworkRJ45 (10/100Mbps) Ethernet Port
External AudioAudio Out, Audio in
Internal AudioInternal Mic, Internal Speaker
AlarmAlarm In, Alarm Out
CVBSN/A
PowerPoE LAN, DC/AC In
Reset ButtonYes (Optional)
Memory SlotYes – Micro SD/SDHC/SDXC Slot (256 Gb Max) (ANR Support)
General
Protection RatingIP67, IK10, 6KV Surge Protection
Power SupplyDC36 V ± 25% (3A Max)
POE SupplyIEEE802.3at-Max 25 Watt
Web LanguageEnglish, Persian
Dimension423*289 mm
Weight7 kg
Case Size5”
Operation HumidityMax Up to 95%RH (Non Condensing)
Operation Temp-40°C ~ +70°C
Guarantee
Product Guarantee5 Years Gold Guarantee
MTBF100K hrs min. MIL-HDBK-217F (25°)
CertificatesEN, CN, FCC, CFR

Image Sensor

5MP Starlight (Sony-Japan) Progressive scan Cmos Sensor (1/2.8″)

Reset Button

Yes (Optional)

Event

Smart Motion Detection, Video Shelter

Auto Track

Yes

3D Position/3D Zoom

Yes

Intelligent Function

14 Smart FunctionLine Crossing Detection, Area Intrusion, Region Entrance, Region Exiting, Unattended Object, Object Missing, Fast Moving, Loitering Detection, People Gathering Detection, Parking Detection, Blurred Detection, Scene Change Detection, Audio Exception Detection, Crossing Line Statistics

Network

RJ45 (10/100Mbps) Ethernet Port

External Audio

Audio Out, Audio in

Internal Audio

Internal Mic, Internal Speaker

Alarm

Alarm In, Alarm Out

CVBS

N/A

Power

PoE LAN, DC/AC In

Memory Slot

Yes – Micro SD/SDHC/SDXC Slot (256 Gb Max) (ANR Support)

Alarm Triggers

All Intelligent Function

Protection Rating

IP67, IK10, 6KV Surge Protection

Power Supply

DC36 V ± 25% (3A Max)

POE Supply

IEEE802.3at-Max 25 Watt

Web Language

English, Persian

Dimension

423*289 mm

Weight

7 kg

Case Size

5”

Operation Humidity

Max Up to 95%RH (Non Condensing)

Operation Temp

-40°C ~ +70°C

Product Guarantee

5 Years Gold Guarantee

MTBF

100K hrs min. MIL-HDBK-217F (25°)

Event Action

Email, PTZ, Snapshot, Recording, Buzzer, Pop up, Show Message, Smart Light

Record Type

Manual, Motion Detection, Smart Detection, Schedule

CPU

Dual-Core ARM Cortex-A7@900MHz

Shutter Speed

Manual (1/3 ~ 1/100.000), Auto

Lens

32X Optical Lens (4.8-154mm) (F-Stop F1.5~F3.8)

Resolution

2592*1944 (5MP)

Available IR Range

150-160 m Smart IR SMD Technology (4pcs IR SMD) 80 m Warm Light Technology (2 pcs Warm Light)

D/N Filter

IR Cut Filter Switch (ICR)

Min Illumination

Color: 0.005 Lux (AGC on) – B/W:0.0 Lux (IR on)(Warm Light On)

PTZ

Pan Range: 360° Endless – Pan Speed: 0.1°-150°/s, Tilt Range: -15°-90° Auto Flip – Tilt Speed: 1.8°-75°/s, Number of Presets: 250 – Patrol: 32 – Pattern: 8 – Park Action: Yes

Night Vision

Dual Light Technology

Picture Function

120dB WDR/DWDR, 2D/3D DNR, BLC, HLC, ROI, Defog

Image Stabilization

Yes (EIS)

Digital Zoom

16x

Image Control

Off, On, Timing (Adjust 0 ~ 255)

Recording

FTP, NVR, CMS, VMS, NAS, SD Card, ANR

D/N Control

Timing, Auto, Color on, Color off

S/N

> 56dB

Image Setting

Saturation, Brightness, Contrast, Sharpness, Hue

Video Compression

H.264+(Ultra H.264), H.265+ (Ultra H.265), MJPEG

Audio Compression

G.711A, G.711U

Frame Rate (60Hz)

30fps@5MP(2592*1944), 30fps@4MP, 30fps@2MP

Transmission Stream

Triple Stream (Code Rate: 32Kbps-16Mbps)

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, P2P, Bonjour, RTMP

Compatibility

Onvif Ver2.6, Profile S, G, T, CGI, SDK, API

Streaming Method

Unicast, Multicast

Web Viewer

IE, Edge, Firefox, Chrome

Certificates

EN, CN, FCC, CFR
