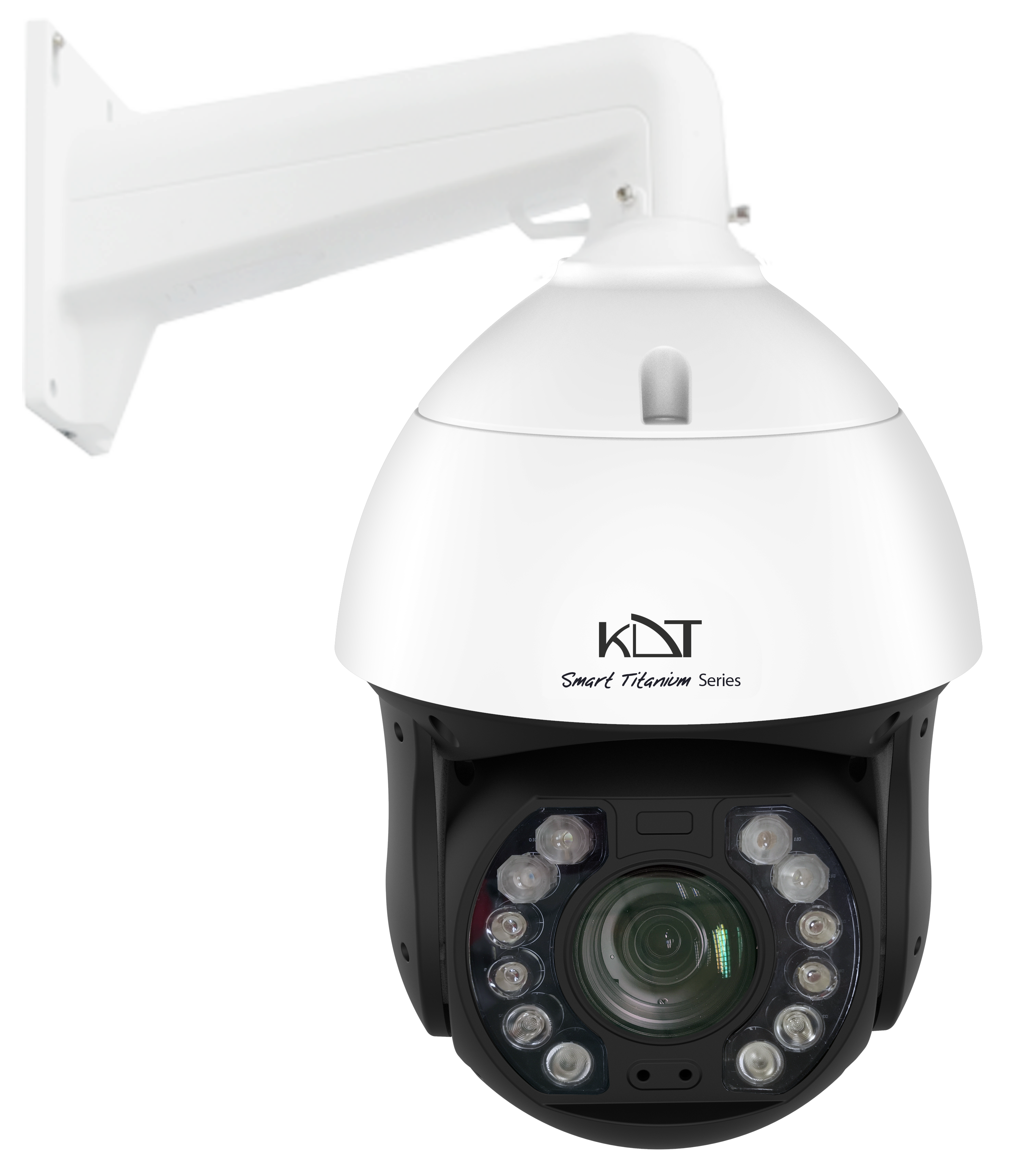

KI-S250ST20Z60-i500TS
500~550 m Smart Laser IR 12pcs Array
60X Optical Lens (6~360 mm)
PRODUCTS
Innovative Technology | Reliable Quality | End-to-End Service
500~550 m Smart Laser IR 12pcs Array
60X Optical Lens (6~360 mm)
Innovative Technology | Reliable Quality | End-to-End Service
| Camera | |
|---|---|
| Image Sensor | 2MP Starlight (Sony-Japan) Cmos Sensor (1/1.8″) |
| CPU | Dual-Core ARM Cortex-A7@900MHz |
| Lens | 60X Optical Lens (6~360 mm) (F-Stop F1.5~F6.1) |
| Resolution | 1920×1080 (2MP) |
| Available IR Range | 500~550 m Smart Laser IR 12pcs Array |
| D/N Filter | IR Cut Filter Switch (ICR) |
| Minimum Illumination | Color: 0.001 lux (AGC on) – B/W: 0.0 Lux (IR on) |
| PTZ | Pan Range: 360° Endless – Pan Speed: 0.1°~120°/S Tilt Range: -10°~90° Auto Flip – Tilt Speed: 0.1°~60°/S Number of Presets: 255 – Patrol: 32 – Pattern: 8 – Park Action: Yes |
| Night Vision | |
|---|---|
| Night Vision | Starlight Technology |
| Picture Adjust | |
|---|---|
| Picture Function | 140dB WDR, DWDR, BLC, HLC, Defog, ROI |
| Image Stabilization | Yes (EIS) |
| Digital Zoom | 16X |
| Shutter Speed | Manual (1/3 ~ 1/100,000), Auto |
| D/N Control | Timing, Auto, Color on, Color off |
| Image Setting | Saturation, Brightness, Contrast, Sharpness, Hue |
| Video/Audio | |
|---|---|
| Video Compression | H.264+(Ultra H.264), H.265+(Ultra H.265) |
| Audio Compression | G.711A, G.711U |
| Frame Rate (60Hz) | 30fps @ 1920×1080 |
| Transmission Stream | Triple Stream (Code Rate: 128kbps~16mbps) |
| Network | |
|---|---|
| Protocols | HTTPs, HTTP, TCP/IP V4-V6, ICMP, RTSP, UDP, NTP, DHCP, DDNS, FTP, SNMP-V1-V2-V3, Multi Cast |
| Compatibility | Onvif Ver2.6, Profile S, CGI, SDK, API |
| Streaming Method | Unicast, Multicast |
| Web Viewer | IE, Edge, Firefox, Chrome |
| Function | |
|---|---|
| Recording | FTP, NVR, CMS, VMS, NAS, SD Card, ANR |
| Record Type | Manual, Motion Detection, Smart Detection, Schedule |
| Alarm Triggers | All Intelligent Function |
| Event Action | Email, PTZ, Snapshot, Recording, Buzzer, Pop-up, Show Message |
| Event | Smart Motion Detection, Video Shelter |
| Auto Track | Yes |
| 3D Position/3D Zoom | Yes |
| Intelligent Function | 17 Smart Functions: Line Crossing, Area Intrusion, Unattended Object, Object Missing, Region Entrance, Region Exiting, Fast Moving, Loitering Detection, People Gathering Detection, Parking Detection, Blurred Detection, Scene Change Detection, Audio Exception Detection, Crossing Line Statistics, Face Detection, Human Detection, Car Shape Detection |
| Interface | |
|---|---|
| Network | RJ45 (10/100mbps) Ethernet Port |
| External Audio | Audio Out, Audio In |
| Alarm | Alarm Out, Alarm In |
| Power | PoE LAN, DC/AC In |
| Memory Slot | Yes – Micro SD/SDHC/SDXC Slot (256 Gb Max) (ANR Support) |
| General | |
|---|---|
| Protection Rating | IP67, IK10, 6KV Surge Protection |
| Cover Lens | Nano Glass |
| Power Supply | AC24 V ± 25% (3A Max) |
| POE Supply | IEEE802.3af-Max 25 Watt |
| Web Language | English, Persian |
| Dimension | 237×335 mm |
| Weight | 5.2 kg |
| Case Size | 8” |
| Operation Temp | -40°C ~ +70°C |
| Guarantee | |
|---|---|
| Product Guarantee | 5 Years Silver Guarantee |
| MTBF | 100K hrs min. MIL-HDBK-217F (25°) |
| Image Sensor | 2MP Starlight (Sony-Japan) Cmos Sensor (1/1.8″) |
|---|---|
| Shutter Speed | Manual (1/3 ~ 1/100,000), Auto |
| Lens | 60X Optical Lens (6~360 mm) (F-Stop F1.5~F6.1) |
| Resolution | 1920×1080 (2MP) |
| Available IR Range | 500~550 m Smart Laser IR 12pcs Array |
| D/N Filter | IR Cut Filter Switch (ICR) |
| Minimum Illumination | Color: 0.001 lux (AGC on) – B/W: 0.0 Lux (IR on) |
| PTZ | Pan Range: 360° Endless – Pan Speed: 0.1°~120°/S |
| Night Vision | Starlight Technology |
| Picture Function | 140dB WDR, DWDR, BLC, HLC, Defog, ROI |
| Image Stabilization | Yes (EIS) |
| Web Viewer | IE, Edge, Firefox, Chrome |
| CPU | Dual-Core ARM Cortex-A7@900MHz |
| D/N Control | Timing, Auto, Color on, Color off |
| Image Setting | Saturation, Brightness, Contrast, Sharpness, Hue |
| Video Compression | H.264+(Ultra H.264), H.265+(Ultra H.265) |
| Audio Compression | G.711A, G.711U |
| Frame Rate (60Hz) | 30fps @ 1920×1080 |
| Transmission Stream | Triple Stream (Code Rate: 128kbps~16mbps) |
| Protocols | HTTPs, HTTP, TCP/IP V4-V6, ICMP, RTSP, UDP, NTP, DHCP, DDNS, FTP, SNMP-V1-V2-V3, Multi Cast |
| Compatibility | Onvif Ver2.6, Profile S, CGI, SDK, API |
| Streaming Method | Unicast, Multicast |
| Digital Zoom | 16X |
| Recording | FTP, NVR, CMS, VMS, NAS, SD Card, ANR |
| Memory Slot | Yes – Micro SD/SDHC/SDXC Slot (256 Gb Max) (ANR Support) |
| Protection Rating | IP67, IK10, 6KV Surge Protection |
| Event Action | Email, PTZ, Snapshot, Recording, Buzzer, Pop-up, Show Message |
| Event | Smart Motion Detection, Video Shelter |
| Auto Track | Yes |
| 3D Position/3D Zoom | Yes |
| Intelligent Function | 17 Smart Functions: |
| Network | RJ45 (10/100mbps) Ethernet Port |
| External Audio | Audio Out, Audio In |
| Alarm | Alarm Out, Alarm In |
| Power | PoE LAN, DC/AC In |
| Record Type | Manual, Motion Detection, Smart Detection, Schedule |
| Alarm Triggers | All Intelligent Function |
| Cover Lens | Nano Glass |
| Power Supply | AC24 V ± 25% (3A Max) |
| POE Supply | IEEE802.3af-Max 25 Watt |
| Web Language | English, Persian |
| Dimension | 237×335 mm |
| Weight | 5.2 kg |
| Case Size | 8” |
| Operation Temp | -40°C ~ +70°C |
| Product Guarantee | 5 Years Silver Guarantee |
| MTBF | 100K hrs min. MIL-HDBK-217F (25°) |
