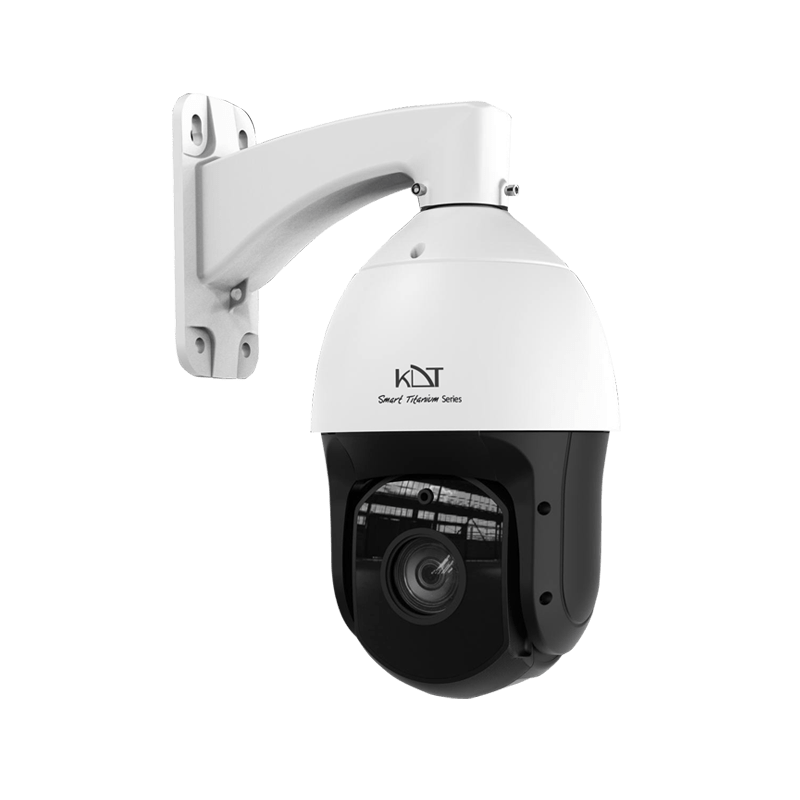

KI-S150ST20Z25-i200TS
200~210m Smart IR 6pcs Aray
25X Optical Lens (4.7~117mm)
PRODUCTS
Innovative Technology | Reliable Quality | End-to-End Service
200~210m Smart IR 6pcs Aray
25X Optical Lens (4.7~117mm)
Innovative Technology | Reliable Quality | End-to-End Service
| Camera | |
| Image Sensor | 2MP (Sony-Japan) Progressive scan Cmos Sensor (1/2.8”) |
| Lens |
25X Optical Lens (4.7~117mm) |
| CPU | Dual-Core ARM Cortex-A7@900MHz |
| Resolution | 1920*1080 (2MP) |
| Available IR Range | 200~210 m Smart IR 6pcs Aray |
| D/N Filter |
IR Cut Filter Switch(ICR) |
| Min Illumination | Color: 0.001 lux (AGC on) – B/W: 0.0 Lux(IR on) |
| PTZ |
Pan Range: 360° Endless – Pan Speed: 0.1°~120°/S Tilt Range: -10°~90° Auto Flip – Tilt Speed: 0.1°~60°/S Number of Preset: 255 – Patrol:32 – Pattern: 8 – Park Action: Yes |
| Night Vision |
Color /IR |
| Picture Adjust | |
| Picture Function | 120db WDR/DWDR, 2D/3D DNR, BLC, HLC, ROI, Defog |
| Digital Zoom | 16X |
| Shutter Speed | Manual (1/3 ~ 1/100.000), Auto |
| Image Parameter Control | Off, On, Timing (Adjust 0 ~ 255) |
| D/N Control | Timing, Auto , Color on, Color off |
| S/N |
> 56dB |
| Image Setting | Saturation, Brightness, Contrast, Sharpness, Hue |
| Video/Audio | |
| Video Compression | H.264+(UltraH.264), H.265+(UltraH.265) |
| Audio Compression | G.711A, G.711U |
| Frame Rate(60Hz) | 30fps@ 1080P(1920*1080), 30fps@ 960P, 30fps@ 720P |
| Transmission Stream | Triple Stream (Video Bit Rate:11 Kbps~8mbps) |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, P2P, Bonjour, SNMP |
| Compatibility | Onvif Ver2.6, Profile S, G, T, CGI, SDK, API |
| Streaming Method | Unicast, Multicast |
| Web Viewer | IE, Edge, Firefox, Chrome |
| Recording Software |
Ultimate KDT CMS/VMS 128CH per Monitor |
| Function | |
| Recording | FTP, NVR, CMS, VMS, NAS, SD Card, ANR |
| Record Type | Manual, Motion Detection, Smart Detection, Schedule |
| Alarm Triggers | All Intelligent Function |
| Event Action | Email, Snapshot, Recording, Alarm Out |
| Event |
Motion Detection, Video Shelter |
| Intelligent Function | 13 Smart Function Line Crossing, Area Intrusion, Unattended Object, Object Missing, Region Entrance, Region Exiting, Fast Moving, Loitering Detection, Parking Detection, Blurred Detection, Scene Change Detection, Audio Exception Detection, People Gathering Detection |
| Interface | |
| Network | 1 RJ45 (10/ 100mbps) Ethernet Port |
| Audio |
Audio Out, Audio In |
| Alarm | Alarm Out, Alarm In |
| CVBS | N/A |
| Power | PoE LAN, DC In |
| Reset Button |
Yes (Optional) |
| Memory Slot | Yes – Micro SD/SDHC/SDXC Slot (128 Gb Max) |
| General | |
| IP Rating |
IP67, 6KV Surge Protection |
| Cover Lens |
Nano Glass |
| Power Supply | DC12V ± 25% (3A Max) |
| POE Supply | IEEE802.3af – Max 25 Watt |
| Web Language | English, Persian |
| Dimension | 276*375 mm |
| Weight | 4.3 Kg |
| Operation Humidity | Max up to 95%RH(non-condensing) |
| Operation Temp | -40°C ~ +70°C |
| Guarantee | |
| Product Guarantee |
5 Years Gold Guarantee |
| MTBF | 100K hrs min. MIL-HDBK-217F (25°) |
| Image Sensor | 2MP (Sony-Japan) Progressive scan Cmos Sensor (1/2.8”) |
|---|---|
| Image Parameter Control | Off, On, Timing (Adjust 0 ~ 255) |
| CPU | Dual-Core ARM Cortex-A7@900MHz |
| Resolution | 1920*1080 (2MP) |
| Available IR Range | 200~210 m Smart IR 6pcs Aray |
| D/N Filter | IR Cut Filter Switch(ICR) |
| Min Illumination | Color: 0.001 lux (AGC on) – B/W: 0.0 Lux(IR on) |
| PTZ | Pan Range: 360° Endless – Pan Speed: 0.1°~120°/STilt Range: -10°~90° Auto Flip – Tilt Speed: 0.1°~60°/SNumber of Preset: 255 – Patrol:32 – Pattern: 8 – Park Action: Yes |
| Night Vision | Color /IR |
| Picture Function | 120db WDR/DWDR, 2D/3D DNR, BLC, HLC, ROI, Defog |
| Digital Zoom | 16X |
| Web Viewer | IE, Edge, Firefox, Chrome |
| Lens | 25X Optical Lens (4.7~117mm) |
| D/N Control | Timing, Auto , Color on, Color off |
| S/N | > 56dB |
| Image Setting | Saturation, Brightness, Contrast, Sharpness, Hue |
| Video Compression | H.264+(UltraH.264), H.265+(UltraH.265) |
| Audio Compression | G.711A, G.711U |
| Frame Rate(60Hz) | 30fps@ 1080P(1920*1080), 30fps@ 960P, 30fps@ 720P |
| Transmission Stream | Triple Stream (Video Bit Rate:11 Kbps~8mbps) |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, P2P, Bonjour, SNMP |
| Compatibility | Onvif Ver2.6, Profile S, G, T, CGI, SDK, API |
| Streaming Method | Unicast, Multicast |
| Shutter Speed | Manual (1/3 ~ 1/100.000), Auto |
| Recording Software | Ultimate KDT CMS/VMS 128CH per Monitor |
| Reset Button | Yes (Optional) |
| Memory Slot | Yes – Micro SD/SDHC/SDXC Slot (128 Gb Max) |
| Alarm Triggers | All Intelligent Function |
| Event Action | Email, Snapshot, Recording, Alarm Out |
| Event | Motion Detection, Video Shelter |
| Intelligent Function | 13 Smart Function Line Crossing, Area Intrusion, Unattended Object, Object Missing, Region Entrance, Region Exiting, Fast Moving, Loitering Detection, Parking Detection, Blurred Detection, Scene Change Detection, Audio Exception Detection, People Gathering Detection |
| Network | 1 RJ45 (10/ 100mbps) Ethernet Port |
| Audio | Audio Out, Audio In |
| Alarm | Alarm Out, Alarm In |
| CVBS | N/A |
| Power | PoE LAN, DC In |
| Recording | FTP, NVR, CMS, VMS, NAS, SD Card, ANR |
| Record Type | Manual, Motion Detection, Smart Detection, Schedule |
| IP Rating | IP67, 6KV Surge Protection |
| Cover Lens | Nano Glass |
| Power Supply | DC12V ± 25% (3A Max) |
| POE Supply | IEEE802.3af – Max 25 Watt |
| Web Language | English, Persian |
| Dimension | 276*375 mm |
| Weight | 4.3 Kg |
| Operation Humidity | Max up to 95%RH(non-condensing) |
| Operation Temp | -40°C ~ +70°C |
| Product Guarantee | 5 Years Gold Guarantee |
| MTBF | 100K hrs min. MIL-HDBK-217F (25°) |
