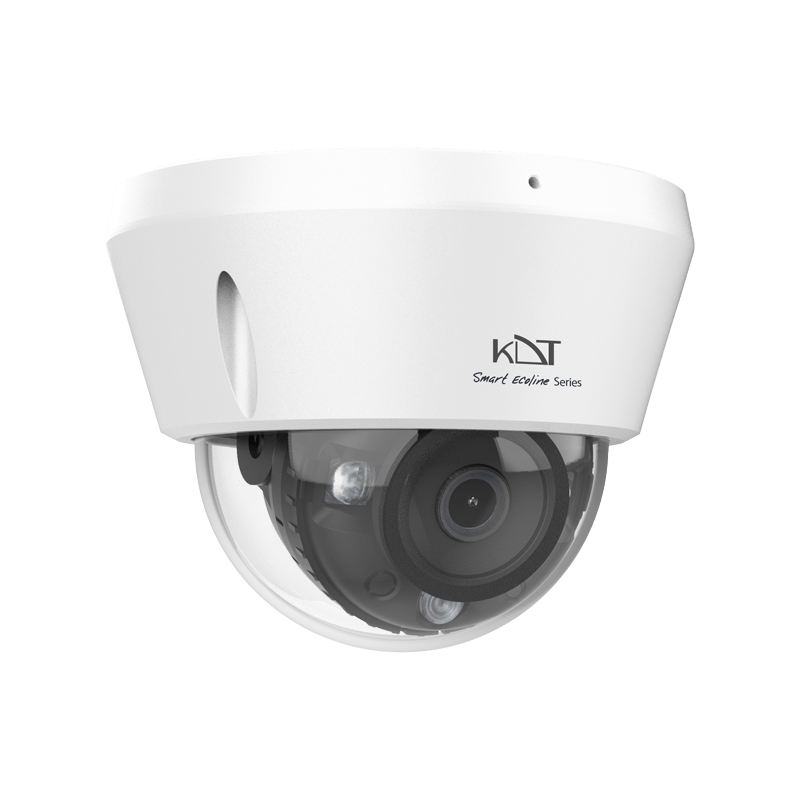

KI-D21SE80F-i30SLM
30~40 M Smart IR SMD Technology
Smart White light Technology
PRODUCTS
Innovative Technology | Reliable Quality | End-to-End Service
30~40 M Smart IR SMD Technology
Smart White light Technology
Innovative Technology | Reliable Quality | End-to-End Service
| Camera | |
| Image Sensor | 8MP Progressive scan Cmos Sensor (1/2.7”) |
| CPU | Dual-Core ARM Cortex-A7@900 MHz |
| Lens | 2.8 mm Fixed Lens @F1.6 |
| Resolution | 3840*2160 (8MP) |
| Available IR Range | 30~40 m Smart IR SMD Technology Smart White light Technology |
| D/N Filter | IR cut filter with auto switch |
| Min Illumination | Color: 0.006 Lux(AGC on) – B/W: 0.0 Lux(IR on) |
| Angle of View |
H-FOV: 114°, V-FOV: 58°, D-FOV: 120° |
| Night Light | Color /IR |
| Picture Adjust | |
| Picture Function | 120dB WDR/DWDR, 2D/3D DNR, BLC, HLC, ROI, Defog, Rotate |
| Shutter Speed | Manual (1/3 ~ 1/10.000), Auto |
| Image Parameter Control |
Off, On, Timing (Adjust 0 ~ 255) |
| D/N Control | Timing, Auto , Color on, Color off |
| S/N |
> 52dB |
| Image Parameter |
Saturation, Brightness, Contrast, Sharpness, Hue |
| Video/Audio | |
| Video Compression | H.264+(Ultra H.264), H.265+ (Ultra H.265) |
| Audio Compression | G.711A, G.711U |
| Frame Rate(60Hz) | 20fps@ 8MP (3840*2160), 20fps@ 6MP, 30fps@ 4MP, 30fps@ 2MP |
| Transmission Stream | Triple Stream (Video Bit Rate:11 Kbps~8 Mbps) |
| Network | |
| Protocols | TCP/IP(V4, V6), ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, P2P, Bonjour, SNMP (V1, V2, V3), UDP, NAT, Multicast,RTMP |
| Compatibility | Onvif Ver2.6, Profile S, G, T, CGI, SDK, API |
| Streaming Method | Unicast, Multicast |
| Web Viewer | IE, Edge, Firefox, Chrome |
| Smart Device |
IOS, Android Phone & Tablet |
| Function | |
| Recording | FTP, NVR, CMS, SD Card, ANR |
| Record Type | Manual, Motion Detection, Smart Detection, Schedule |
| Alarm Triggers | All Intelligent Function |
| Event Action | Email, PTZ, Snapshot, Recording, Buzzer, Pop up, Show Message, Smart Light |
| Event |
Smart Motion Detection, Video Shelter |
| Intelligent Function | 14 Smart Function Line crossing detection, Area intrusion, Unattended Object, Object Missing,Region Entrance, Region Exiting, Fast Moving, Loitering Detection, People,Gathering Detection, Parking Detection, Blurred Detection, Scene Change Detection, Audio exception Detection, Crossing Line Statistics |
| Interface | |
| Network | 1 RJ45 (10M / 100M) Ethernet Port |
| Audio | Internal Mic |
| Alarm | N/A |
| CVBS | N/A |
| Power | PoE LAN, DC In |
| Reset Button |
Yes (Optional) |
| Memory Slot | Yes – Micro SD/SDHC/SDXC Slot (256 Gb Max) (ANR Support) |
| General | |
| IP Rating | IP67, IK10, 6KV Surge Protection |
| Power Supply | DC12V ± 10% |
| POE Supply | IEEE802.3af – Max 7 Watt |
| Web Language | English, Persian |
| Dimension | 112*87.5 mm |
| Weight | 450 g |
| Operation Humidity | Humidity 95% or less (non-condensing) |
| Operation Temp | -30°C ~ +60°C |
| Guarantee | |
| Product Guarantee | 2 Years Silver Guarantee |
| MTBF | 100K hrs min. MIL-HDBK-217F (25°) |
| Certificates | EN, CN, FCC, CFR |
| Image Sensor | 8MP Progressive scan Cmos Sensor (1/2.7”) |
|---|---|
| Smart Device | IOS, Android Phone & Tablet |
| Resolution | 3840*2160 (8MP) |
| Available IR Range | 30~40 m Smart IR SMD TechnologySmart White light Technology |
| D/N Filter | IR cut filter with auto switch |
| Min Illumination | Color: 0.006 Lux(AGC on) – B/W: 0.0 Lux(IR on) |
| Angle of View | H-FOV: 114°, V-FOV: 58°, D-FOV: 120° |
| Night Light | Color /IR |
| Picture Function | 120dB WDR/DWDR, 2D/3D DNR, BLC, HLC, ROI, Defog, Rotate |
| Shutter Speed | Manual (1/3 ~ 1/10.000), Auto |
| D/N Control | Timing, Auto , Color on, Color off |
| S/N | > 52dB |
| Image Parameter Control | Off, On, Timing (Adjust 0 ~ 255) |
| Image Parameter | Saturation, Brightness, Contrast, Sharpness, Hue |
| Video Compression | H.264+(Ultra H.264), H.265+ (Ultra H.265) |
| Audio Compression | G.711A, G.711U |
| Frame Rate(60Hz) | 20fps@ 8MP (3840*2160), 20fps@ 6MP, 30fps@ 4MP, 30fps@ 2MP |
| Transmission Stream | Triple Stream (Video Bit Rate:11 Kbps~8 Mbps) |
| Protocols | TCP/IP(V4, V6), ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, P2P, Bonjour, SNMP (V1, V2, V3), UDP, NAT, Multicast,RTMP |
| Compatibility | Onvif Ver2.6, Profile S, G, T, CGI, SDK, API |
| Streaming Method | Unicast, Multicast |
| Web Viewer | IE, Edge, Firefox, Chrome |
| Lens | 2.8 mm Fixed Lens @F1.6 |
| CPU | Dual-Core ARM Cortex-A7@900 MHz |
| Memory Slot | Yes – Micro SD/SDHC/SDXC Slot (256 Gb Max) (ANR Support) |
| IP Rating | IP67, IK10, 6KV Surge Protection |
| Event Action | Email, PTZ, Snapshot, Recording, Buzzer, Pop up, Show Message, Smart Light |
| Event | Smart Motion Detection, Video Shelter |
| Intelligent Function | 14 Smart FunctionLine crossing detection, Area intrusion, Unattended Object, Object Missing,Region Entrance, Region Exiting, Fast Moving, Loitering Detection, People,Gathering Detection, Parking Detection, Blurred Detection, Scene Change Detection, Audio exception Detection, Crossing Line Statistics |
| Network | 1 RJ45 (10M / 100M) Ethernet Port |
| Audio | Internal Mic |
| Alarm | N/A |
| CVBS | N/A |
| Power | PoE LAN, DC In |
| Reset Button | Yes (Optional) |
| Record Type | Manual, Motion Detection, Smart Detection, Schedule |
| Recording | FTP, NVR, CMS, SD Card, ANR |
| Power Supply | DC12V ± 10% |
| POE Supply | IEEE802.3af – Max 7 Watt |
| Web Language | English, Persian |
| Dimension | 112*87.5 mm |
| Weight | 450 g |
| Operation Humidity | Humidity 95% or less (non-condensing) |
| Operation Temp | -30°C ~ +60°C |
| Product Guarantee | 2 Years Silver Guarantee |
| MTBF | 100K hrs min. MIL-HDBK-217F (25°) |
| Alarm Triggers | All Intelligent Function |
| Certificates | EN, CN, FCC, CFR |
