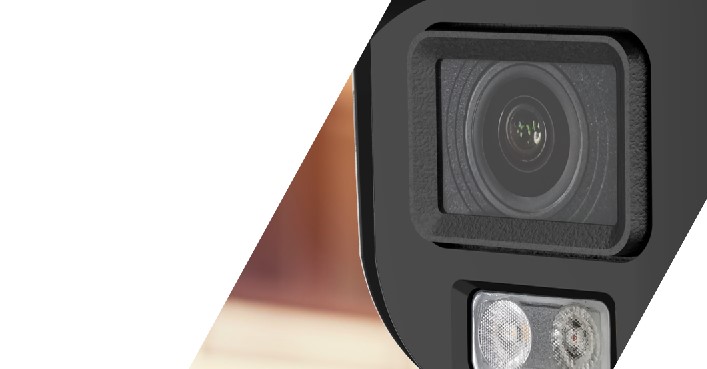

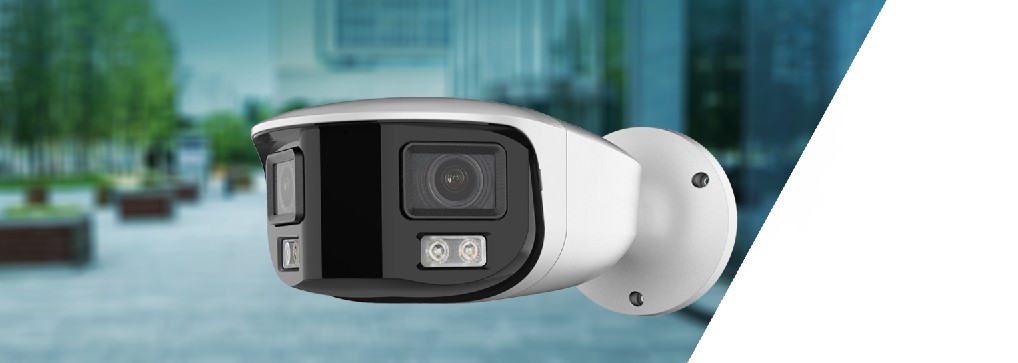

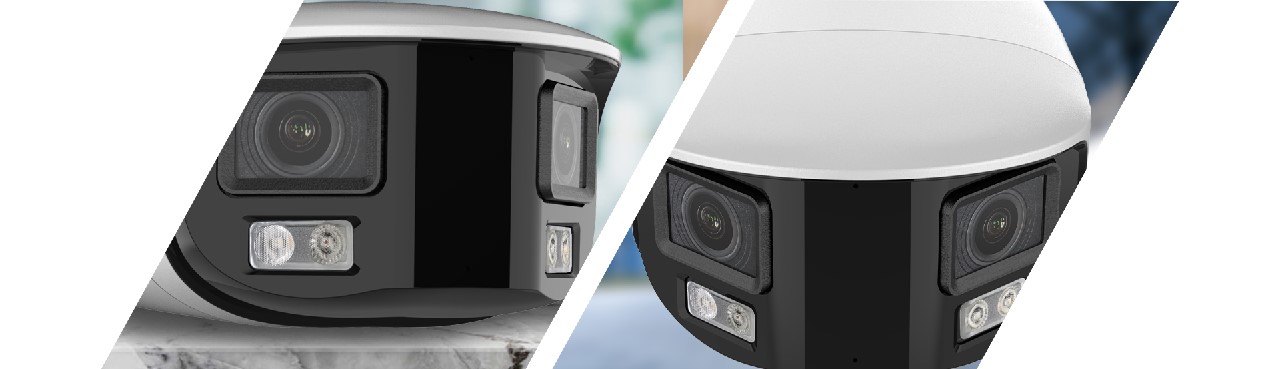

KI-B95ST80F-TCSMPR
40~45 m, 4Pcs, Warm light LED Technology 4 mm Fixed Lens @F1.0 Full Color Technology
PRODUCTS
Innovative Technology | Reliable Quality | End-to-End Service
40~45 m, 4Pcs, Warm light LED Technology 4 mm Fixed Lens @F1.0 Full Color Technology
Innovative Technology | Reliable Quality | End-to-End Service
| Camera | |
|---|---|
| Image Sensor | Dual 4MP Full color (OmniVision-USA) / Progressive scan CMOS Sensor (1/1.8″) |
| CPU | Dual-Core ARM Cortex-A7 @ 900 MHz |
| Lens | 4 mm Fixed Lens @ F1.0 |
| Resolution | 5120*1440 (8MP) |
| Available Warm Light Range | 40~45 m, 4 Pcs, Warm Light LED Technology |
| D/N Filter | Color |
| Min Illumination | Color: 0.0001 lux (Color) – 0.0 Lux (Warm Light On) |
| Angle of View | H-FOV: 180°, V-FOV: 44°, D-FOV: 287° |
| Night Vision | Full Color Technology |
| Active Deterrence | |
| Red/Blue Light Warning | Flash: 5~30 s; Frequency: high/medium/low |
| Sound Warning | Audio 1/2/3; Volume: high/medium/low; Duration: 5~30 s; 106 dB |
| Picture Adjust | |
| Picture Function | 140dB WDR / DWDR, 2D/3D DNR, BLC, HLC, ROI, Defog |
| Shutter Speed | Manual (1/3 ~ 1/100,000), Auto |
| Image Parameter Control | Off, On, Timing (Adjust 0 ~ 255) |
| D/N Control | Auto, Color on, Color off |
| S/N | > 56 dB |
| Image Parameter | Saturation, Brightness, Contrast, Sharpness, Hue |
| Video/Audio | |
| Video Compression | H.264(H-264), H.265+(Ultra H.265), MJPEG |
| Audio Compression | G-711A, G-711U |
| Frame Rate (60Hz) | 20fps @ 8MP (5120*1440) |
| Transmission Stream | Triple Stream (Video Bit Rate: 11 Kbps~6 Mbps) |
| Network | |
| Protocols | TCP/IPv4, v6, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, P2P, Bonjour, Multicast, NAT, Unicast, RTMP |
| Compatibility | Onvif Ver 2.6, Profiles S, G, T, CGI, SDK, API |
| Streaming Method | Unicast, Multicast |
| Web Browser | IE, Edge, Chrome |
| Client Device | iOS, Android Phone & Tablet |
| Function | |
| Recording | FTP, NVR, CMS, VMS, NAS, SD Card, ANR |
| Record Type | Manual, Motion Detection, Smart Detection, Schedule |
| Alarm Triggers | All Intelligent Function |
| Event Action | Email, PTZ, Snapshot, Recording, Buzzer, Pop up, Show Message |
| Event | Smart Motion Detection, Video Shelter |
| Intelligent Function | 4 Smart Function (Line Crossing, Area Intrusion, Region Entrance, Region Exiting) |
| Interface | |
| Network | 1 RJ45 (10M/100M) Ethernet Port |
| External Audio | Audio Out, Audio In |
| Internal Audio | Internal Mic, Internal Speaker |
| Alarm | Alarm In, Alarm Out |
| CVBS | N/A |
| Power | PoE LAN, DC In |
| Reset Button | Yes (Optional) |
| Memory Slot | Yes – Micro SD/SDHC/SDXC Slot (256 GB Max) (ANR Support) |
| General | |
| Protection Rating | IP67, IK10, 6KV Surge Protection |
| Power Supply | DC12V ± 10% |
| POE Supply | IEEE802.3af – Max 11 Watt |
| Web Language | English, Persian |
| Dimension | 327*105 mm |
| Weight | 1.9 kg |
| Operation Humidity | Humidity 95% or less (non-condensing) |
| Operation Temp | -30°C ~ +60°C |
| Guarantee | |
| Product Guarantee | 5 Years Gold Guarantee |
| MTBF | 100K hrs min. MIL-HDBK-217F (25°) |
| Certificates | EN, CN, FCC, CFR |
| Image Sensor | Dual 4MP Full color (OmniVision-USA) / Progressive scan CMOS Sensor (1/1.8″) |
|---|---|
| Image Parameter Control | Off, On, Timing (Adjust 0 ~ 255) |
| Lens | 4 mm Fixed Lens @ F1.0 |
| Resolution | 5120*1440 (8MP) |
| Available Warm Light Range | 40~45 m, 4 Pcs, Warm Light LED Technology |
| D/N Filter | Color |
| Min Illumination | Color: 0.0001 lux (Color) – 0.0 Lux (Warm Light On) |
| Angle of View | H-FOV: 180°, V-FOV: 44°, D-FOV: 287° |
| Night Vision | Full Color Technology |
| Red/Blue Light Warning | Flash: 5~30 s; Frequency: high/medium/low |
| Sound Warning | Audio 1/2/3; Volume: high/medium/low; Duration: 5~30 s; 106 dB |
| Picture Function | 140dB WDR / DWDR, 2D/3D DNR, BLC, HLC, ROI, Defog |
| Web Browser | IE, Edge, Chrome |
| CPU | Dual-Core ARM Cortex-A7 @ 900 MHz |
| D/N Control | Auto, Color on, Color off |
| S/N | > 56 dB |
| Image Parameter | Saturation, Brightness, Contrast, Sharpness, Hue |
| Video Compression | H.264(H-264), H.265+(Ultra H.265), MJPEG |
| Audio Compression | G-711A, G-711U |
| Frame Rate (60Hz) | 20fps @ 8MP (5120*1440) |
| Transmission Stream | Triple Stream (Video Bit Rate: 11 Kbps~6 Mbps) |
| Protocols | TCP/IPv4, v6, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, P2P, Bonjour, Multicast, NAT, Unicast, RTMP |
| Compatibility | Onvif Ver 2.6, Profiles S, G, T, CGI, SDK, API |
| Streaming Method | Unicast, Multicast |
| Shutter Speed | Manual (1/3 ~ 1/100,000), Auto |
| Client Device | iOS, Android Phone & Tablet |
| Reset Button | Yes (Optional) |
| Memory Slot | Yes – Micro SD/SDHC/SDXC Slot (256 GB Max) (ANR Support) |
| Alarm Triggers | All Intelligent Function |
| Event Action | Email, PTZ, Snapshot, Recording, Buzzer, Pop up, Show Message |
| Event | Smart Motion Detection, Video Shelter |
| Intelligent Function | 4 Smart Function (Line Crossing, Area Intrusion, Region Entrance, Region Exiting) |
| Network | 1 RJ45 (10M/100M) Ethernet Port |
| External Audio | Audio Out, Audio In |
| Internal Audio | Internal Mic, Internal Speaker |
| Alarm | Alarm In, Alarm Out |
| CVBS | N/A |
| Power | PoE LAN, DC In |
| Recording | FTP, NVR, CMS, VMS, NAS, SD Card, ANR |
| Record Type | Manual, Motion Detection, Smart Detection, Schedule |
| Protection Rating | IP67, IK10, 6KV Surge Protection |
| Power Supply | DC12V ± 10% |
| POE Supply | IEEE802.3af – Max 11 Watt |
| Web Language | English, Persian |
| Dimension | 327*105 mm |
| Weight | 1.9 kg |
| Operation Humidity | Humidity 95% or less (non-condensing) |
| Operation Temp | -30°C ~ +60°C |
| Product Guarantee | 5 Years Gold Guarantee |
| MTBF | 100K hrs min. MIL-HDBK-217F (25°) |
| Certificates | EN, CN, FCC, CFR |
