KI-B85ST40A-TCSM
4MP Full color (OmniVision-USA) Progressive scan Cmos Sensor(1/1.8”)
2.8~12.5 mm, Motorized
PRODUCTS
Innovative Technology | Reliable Quality | End-to-End Service
دوربین مداربسته بالت کی دی تی مدل KI-B85ST40A-TCSM
قابلیت های هوشمند:
- عبور از خط
- فنــس مجـــازی
- ورود به منطقـه
- خــروج از منطقـه
- تشخیص چهره
- تشخیص تغییــر زاویـه دوربیـن
KI-B85ST40A-TCSM

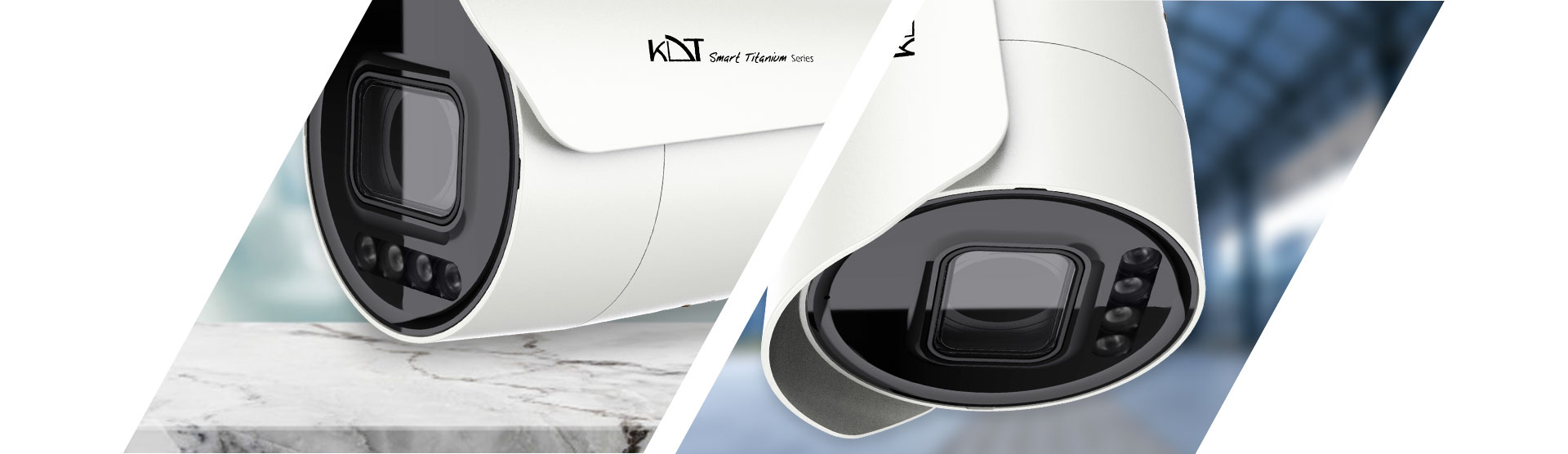

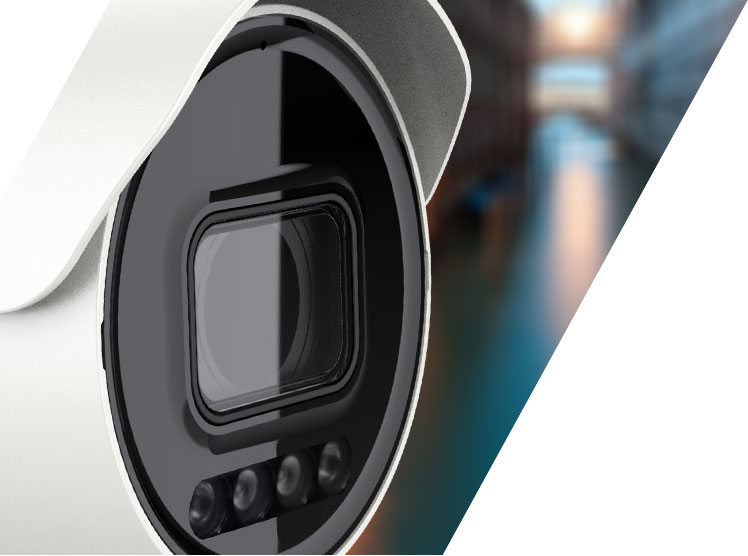

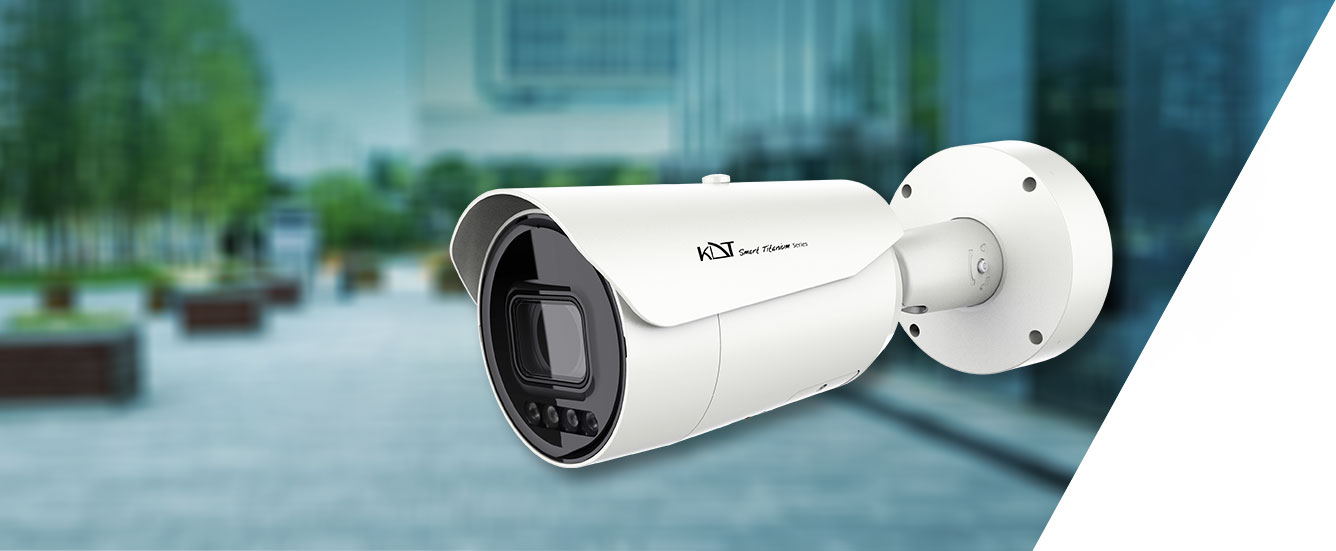

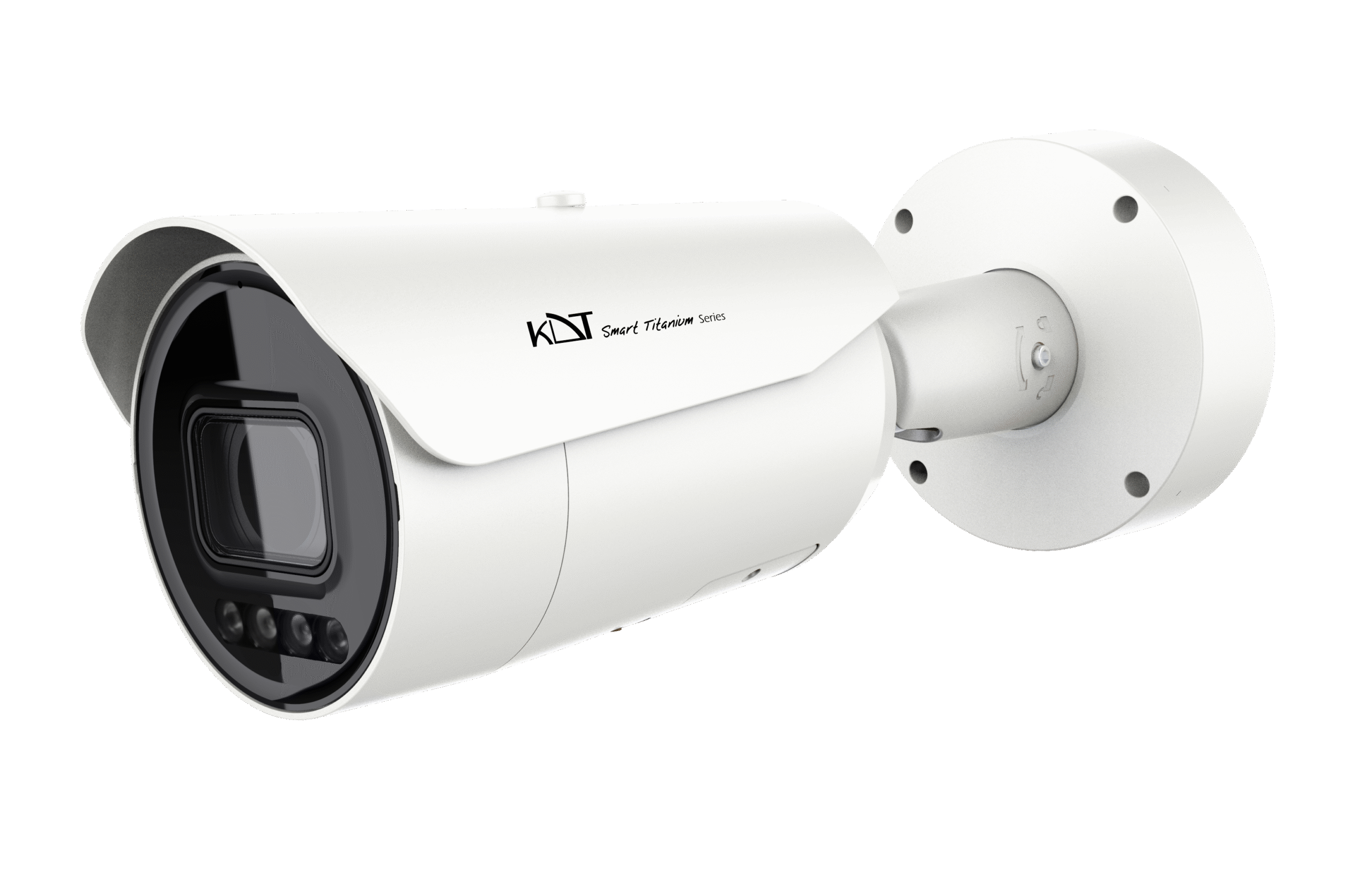

4MP Bullet Network Camera
- 4MP Full color (OmniVision-USA) Progressive scan Cmos Sensor (1/1.8”)
- 85~90 m, 4Pcs, Warm light LED Technology
- H.264+(Ultra H.264), H.265+ (Ultra H.265), MJPEG
- 30fps@ 4MP(2688*1520), 30fps@ 2MP
- Support PoE
- Triple Stream (Video Bit Rate:11 Kbps~10 Mbps)
- Alarm Triggers All Intelligent Function
- Internal Mic, Audio Out, Audio in
سایر برتری ها :
پشتیبانی از میکرو SD با ظرفیت 256GB
> بدنــه ضد آب و گـرد و غبـــار با درجه IP67, IK10
> ســـرور انتقـــال تصویـــر در ایــران
> پشتیبـــانی از H.264+ / H.265+
> پشتیبـــانـــی از ONVIF ورژن 2.6
> قـــابلیت دیـد در شب هـوشمنــد
> قابلیت WDR, BLC, HLC, Defog و ROI تا 8 ناحیه
> پشتیبانی از ضبط اضطراری ANR
> پشتیبانی از قابلیت 130db, Wide Dynamic Range>>امکان سفارش با نرم افزار امن و محدود شده جهت استفاده در مراکز با حساسیت بالا به همراه گواهینامه
شرایط گارانتی :
> پنج سال گارانتی طلایی بدون قید و شرط کی دی تی
> شش سال ضمانت پایداری کیفیت تصویر
شامل: آبخوردگی ، شکستگی ، ضربه دیدگی ، خسارت ناشی از صاعقه ، زنگ زدگی ، نوسانات برق ، سایر اتفاقات و صدمات
| Camera | |
| Image Sensor | 4MP Full color(OmniVision-USA) Progressive scan Cmos Sensor(1/1.8″) |
| CPU | Dual-Core ARM Cortex-A7@900 MHz |
| Lens | 2.8~12.5 mm, Motorized Fast Auto Focus Lens @F1.0 |
| Resolution | 2688*1520 (4MP) |
| Available IR Range | Available Warm Light Range 85~90 m, 4Pcs, Warm light LED Technology |
| D/N Filter | Color |
| Min illumination | Color: 0.0001 lux(Color) – 0.0 Lux(Warm Light On) |
| Angle of View | H-FOV: 105°~ 56°, V-FOV: 54°~ 31°, D-FOV: 131°~ 65° |
| Night Vision | Full Color Technology |
| Recording | |
| Recording | FTP, NVR, CMS, VMS, NAS, SD Card, ANR |
| Record Type | Manual, Motion Detection, Smart Detection, Schedule |
| Alarm Triggers | All Intelligent Function |
| Event Action | Email, PTZ, Snapshot, Recording, Buzzer, Pop up, Show Message |
| Event | Smart Motion Detection, Video Shelter |
| Intelligent Function | 6 Smart Function Line Crossing, Area Intrusion, Region Entrance, Region Exiting, Scene Change Detection, Face Detection |
| Picture Adjust | |
| Picture Function | 130 db WDR/DWDR, 2D/3D DNR, BLC, HLC, ROI, Defog |
| Shutter Speed | Manual (1/3 ~ 1/100.000), Auto |
| Image Parameter Control | Off, On, Timing (Adjust 0 ~ 255) |
| D/N Control | Timing, Auto, Color on, Color off |
| S/N | >56dB |
| Image Parameter | Saturation, Brightness, Contrast, Sharpness, Hue |
| Network | |
| Network | 1 RJ45 (10M / 100M) Ethernet Port |
| External Audio | Audio Out, Audio in |
| Internal Audio | Internal Mic |
| Alarm | Alarm In, Alarm Out |
| CVBS | N/A |
| Power | PoE LAN, DC In |
| Reset Button | Yes (Optional) |
| Memory Slot | Yes – Micro SD/SDHC/SDXC Slot (256 Gb Max) (ANR Support) |
| Video / Audio | |
| Video Compression | H.264+(Ultra H.264), H.265+ (Ultra H.265), MJPEG |
| Audio Compression | G.711A, G.711U |
| Frame Rate(60Hz) | 30fps@ 4MP(2688*1520), 30fps@ 2MP |
| Transmission Stream | Triple Stream (Video Bit Rate:11 Kbps~10 Mbps) |
| Network | |
| Protocols | TCP/IP(V4, V6), ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, P2P, Bonjour, SNMP (V1, V2, V3), UDP, NAT, Multicast, RTMP |
| Compatibility | Onvif Ver2-6, Profile S, CGI, SDK, API |
| Streaming Method | Unicast, Multicast |
| Web Viewer | IE, Edge, Firefox, Chrome |
| Smart Device | IOS, Android Phone & Tablet |
| Interface | |
| Network | 1 RJ45 (10M / 100M) Ethernet Port |
| External Audio | Audio Out, Audio in |
| Internal Audio | Internal Mic |
| Alarm | Alarm In, Alarm Out |
| CVBS | N/A |
| Power | PoE LAN, DC In |
| Reset Button | Yes (Optional) |
| Memory Slot | Yes – Micro SD/SDHC/SDXC Slot (256 Gb Max) (ANR Support) |
| General | |
| Protection Rating | IP67, IK10, 6KV Surge Protection |
| Back Box | Yes |
| Power Supply | DC12V± 10% |
| POE Supply | IEEE802.3af – Max 13 Watt |
| Web Language | English, Persian |
| Dimension | 360*142 mm |
| Weight | 2.9 Kg |
| Operation Humidity | Humidity 95% or less (non-condensing) |
| Operation Temp | -30℃~+60℃ |
| Guarantee | |
| Product Guarantee | 5 Years Gold Guarantee |
| MTBF | 100K hrs min. MIL-HDBK-217F (25°) |
| Certificates | EN, CN, FCC, CFR |
