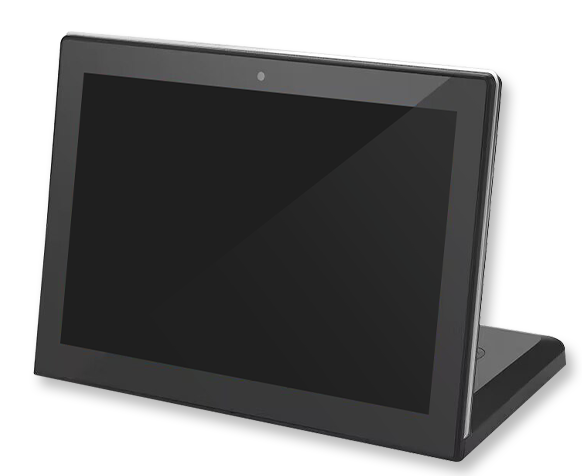

KA-C10-P

Quad Core Cortex A17, RK3288

PRODUCTS

Innovative Technology | Reliable Quality | End-to-End Service

اسپیکر کی دی تی مدل KA-C10-P

قابلیت های هوشمند:

  • ارتباط با انواع سرور PBX / KDT VOIP Server / ASTERISK / FREEPBX
  • ارتباط از طریق LAN با قابلیت PoE
  • قابلیت تعریف اکانت SIP
  • دارای 150 مگابایت کارت حافظه داخلی
  • دارای وب جهت تنظیمات و مانیتورینگ بلندگو و کنترل پخش
  • قابلیت آپلود مستقیم فایل صوتی و پخش از طریق وب بلندگو
  • قابلیت پخش صوت به صورت زمان بندی شده
  • استفاده از رمزنگاری JWT با الگوریتم HS256
  • مانیتورینگ وضعیت سخت افزاری و دمای داخلی بلندگو

KA-C10-P

Central Network Management
  • CPU: Quad Core Cortex A17, RK3288
  • RAM: 2GB
  • Internal Memory: 32 GB
  • Touch Screen: 10-Point Capacitive Touch
  • Panel: 10.1 Inch LCD IPS Panel
  • Resolution: 1280*800
  • Wifi: 802.11b/g/n
  • Ethernet: RJ45, 100M/1000M
  • Video Format: MPEG, H.264

شرایط گارانتی :

> دو سال گارانتی نقره ای بدون قید و شرط کی دی تی

> سه سال ضمانت پایداری کیفیت صدا

System
CPU Quad Core Cortex A17, RK3288
RAM 2GB
Internal Memory 32 GB
Operation System Linux
Touch Screen 10-Point Capacitive Touch
Display 10.1 Inch LCD IPS Panel
Resolution 1280*800
Contrast Ratio 800
Luminance 250 cd/m2
Aspect Ratio 16:10
Network
Wifi 802.11b/g/n
Ethernet RJ45, 100M/1000M
Bluetooth Bluetooth 4.0
Interface
Card Slot up to 32GB
USB Yes
HDMI Yes
Power Jack DC Power Input
Earphone 3.5mm Earphone With Microphone
Serial Port Yes
RJ45 RJ45, 100M/1000M (PoE Function, Optional)
Microphone Yes
Speaker 2*1W
Media Play
Video Format MPEG, H.264
Audio Format MP3/WMA/AAC etc.
Photo Jpeg
General
Power Supply IEEE802.3at / DC 12 V 1A
Language Persian
Weight 800 g
Mounting Desktop
Operation Humidity Humidity 90% or less (non-condensing)
Operation Temp -30°C ~ +60°C
Dimension And Impedance 258*180*106 mm
Material, Colour ABS White / Black
Software Feature
  • SIP Calling Capability
  • Playing Music on SIP Calls
  • Simultaneous Playback of Music and Internal Microphone on SIP Calls
  • Ability to Add SIP Phone Groups on KDT SIP Server
  • Making Calls over RTP without the need for a SIP server with dedicated numbers
  • High-quality Music Playback through Multicast without the need for a server
  • Monitoring KDT Speakers in the network and giving commands to them
  • Individual Volume Control for each Speaker
  • Displaying Temperature and CPU load for each Speaker
  • Identifying Connected and Disconnected Speakers in the network
  • Resetting and muting each connected Speaker when needed
  • Dedicated space for storing music files on the console via USB flash drive
Guarantee
Product Guarantee 2 Years Silver Guarantee
MTBF 100k hrs min. MIL-HDBK-217F (25°)
Certificates EN, CN, FCC
