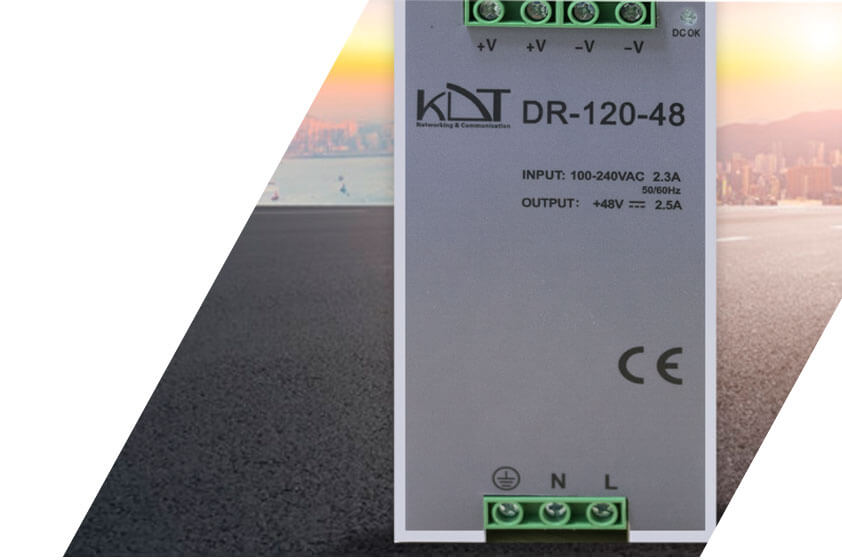

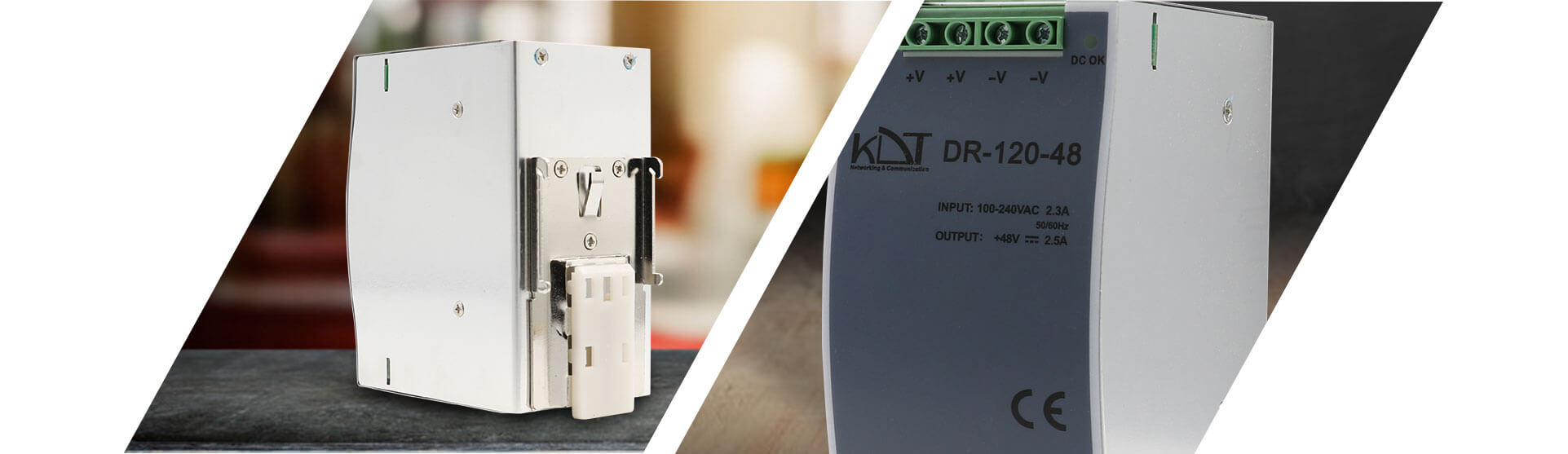

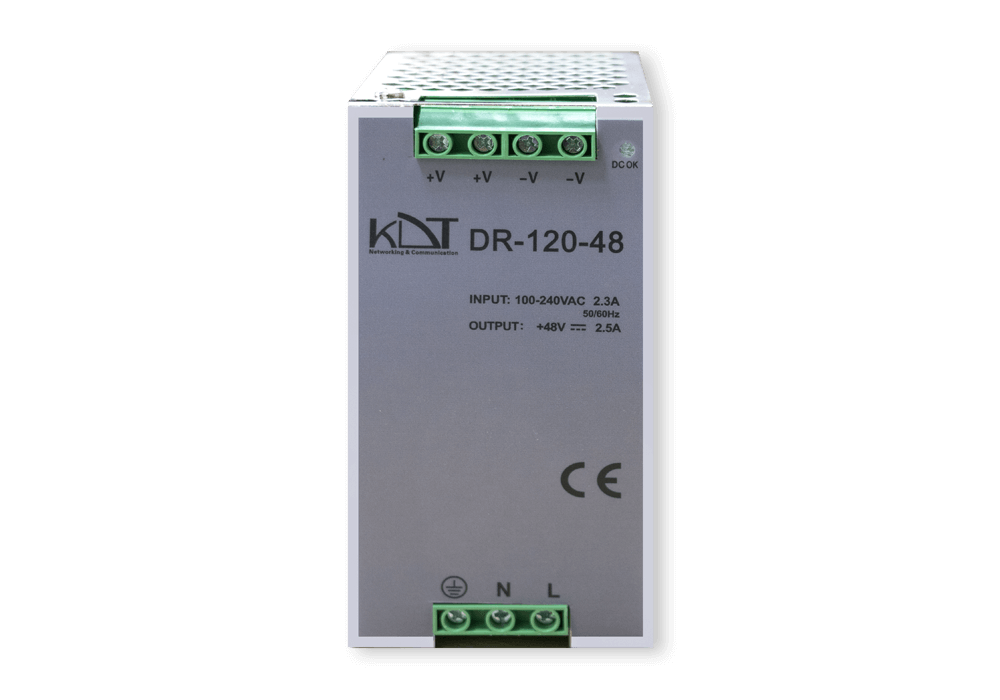

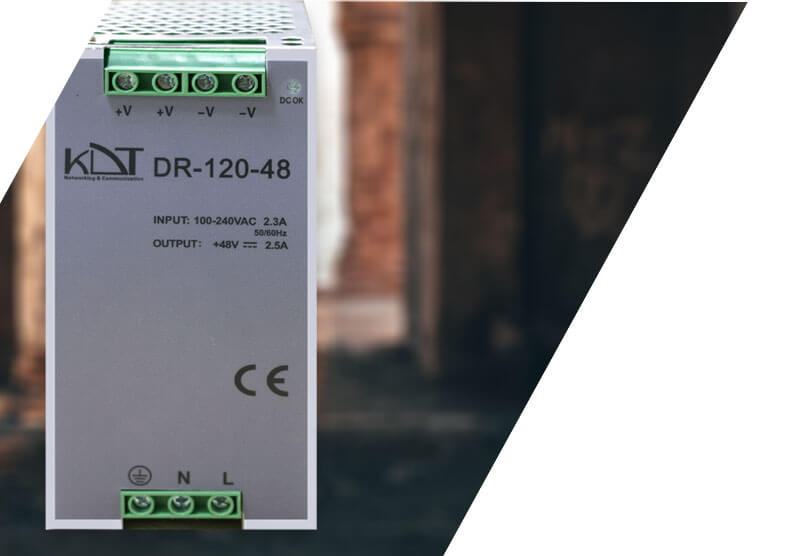

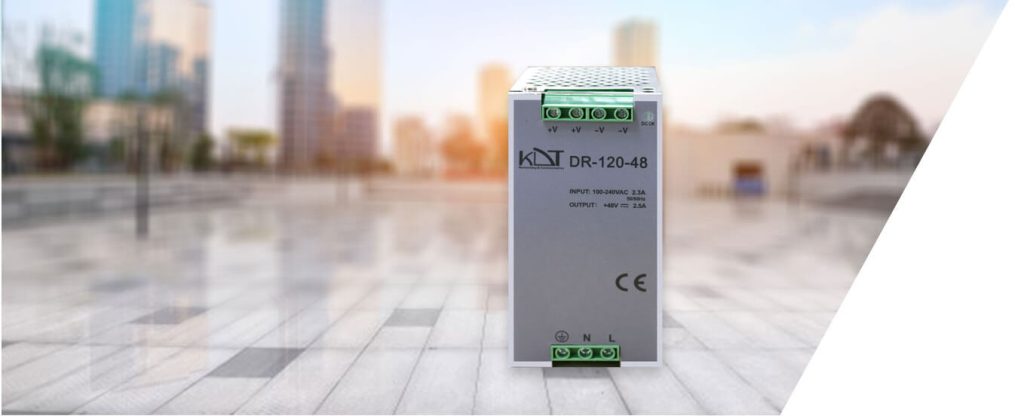

پاور صنعتی کی دی تی مدل DR-12048
| Output |
|
| DC Voltage | 48V |
| Rated Current | 2.5A |
| Current Range |
0 ~ 2.5A |
| Rated Power | 120W |
| Ripple & Noise (Max.) | 150mVp-p |
| Voltage Adj. Range | 48 ~ 58V |
| Voltage Tolerance | ±1.0% |
| Line Regulation | ±0.5% |
| Load Regulation |
±0.5% |
| Setup, Rise, Hold Up Time | 2000ms, 70ms, 50ms/400VAC
2000ms, 70ms, 10ms/230VAC at Full Load |
| Input | |
| Voltage Range | 100~240VAC |
| Frequency Range |
47 ~ 63Hz |
| Efficiency (Typ.) | 92% / 400V |
| AC Current | 2.3A/230VAC |
| Inrush Current (Max.) | Cold Start 50A |
| Leakage Current | <3.5mA / 530VAC |
| Protection | |
| Overload | 105 ~ 130% Rated Output Power |
| Over Voltage |
57 ~ 63V |
| Over Temperature | Shut Down O/P Voltage, Recovers Automatically After Temperature Goes Down |
| Function | |
| DC OK Signal | Relay Contact Rating(Max.) : 30V / 1A Resistive |
| Environment | |
| Working Temp | -25 ~ +70° (Refer to «Derating Curve») |
| Working Humidity | 20 ~ 90% RH Non-Condensing |
| Storage Temp., Humidity | -40 ~ +85°, 10 ~ 95% RH |
| Temp. Coefficient | ±0.03% / °C (0 ~ 50°) °C |
| Vibration | Component: 10 ~ 500Hz, 2G 10Min./1Cycle, 60Min. Each Along X, Y, Z Axes; Mounting Clip: Compliance To Iec60068-2-6 |
| Safety & EMC | |
| Safety Standards | UL508, EAC TP TC 004 approved, IEC60950-1 CB approved by SIQ, design refer to GL;(meet EN60204-1) |
| Withstand Voltage | I/P-O/P:3KVAC I/P-FG:2KVAC
O/P-FG:0.5KVAC O/P-DC OK:0.5KVAC |
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH |
| EMC Emission |
Compliance to EN55011 (CISPR11), EN55032 (CISPR32), EN61204-3 Class B, EAC TP TC 020 |
| EMC Immunity | Compliance to EN61000-4-2,3,4,5,6,8,11, EN61204-3, EN61000-6-2 (EN50082-2), heavy industry level, criteria A, EAC TP TC 020 |
| Other | |
| MTBF |
268K hrs min. MIL-HDBK-217F (25°C) |
| Dimension |
125*65*92mm |
| Packing | 0.65Kg; 20pcs/14Kg/1.16CUFT |
توضیحات
Description / DR-12048
